Fire Alarm Interfaces - Addressable Input/Output Modules
Verified by manufacturer 2 days ago

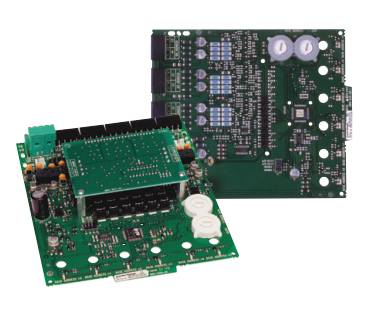

10 Way Input Module: MMX-10ME
10 Way Input Module: MMX-10ME
Addressable input/output modules provide compact, loop-powered control and monitoring for fire and security devices, supporting multiple inputs, outputs, and fault supervision.
Application
These modules are used in fire alarm systems to integrate auxiliary controls such as Door Holders, Lifts, Gas Valves, HVAC Systems, Access Control etc in the event of an emergency. Suitable for all building types.
Description
The Morley-IAS 500 Series input and output modules provide flexible, addressable solutions for integrating fire, security, and auxiliary devices into analogue addressable systems. Modules include the M501MEA input module, 10-way input/output modules (MMX-10ME, MCX-55ME, CMX-10RME), dual-channel input with single output (M221EA), and mains switching output module (M201EA-240).
These devices support Class B wiring, loop isolation, and fully supervised circuits capable of detecting normal, open, short, and active (alarm) conditions. Each input and output is individually addressed and controlled by the panel, with DIP switches allowing configurable addressing and selective disabling. Compact designs allow mounting within devices, junction boxes, or control cabinets, while lightweight construction enables easy installation without rigid mounting. Advanced protocols, such as Series 200, provide faster alarm and fault recognition. Built-in short-circuit protection and selectable isolators enhance system reliability, and all modules are covered by an extended three-year warranty.
Features and benefits:
- Individually addressable inputs and outputs for precise system control
- Supports Class B wiring and fully supervised analog communication
- Compact, lightweight design fits inside devices, junction boxes, or control cabinets
- DIP switch selectable addressing with individual module enable/disable for flexible configuration
- Detects normal, open, short, and active (fire/alarm) conditions on monitored devices
- Supports dual-channel input with single output or multiple input/output combinations
- Built-in short-circuit protection and selectable loop isolators enhance system reliability
- Mains switching output module handles 240VAC loads with bistable, latching relay control
- Tri-color LED indicators provide visual status for alarms, faults, and relay activation
- Compatible with Morley-IAS analogue addressable fire panels, including Series 200 advanced protocol
- EN54-17 Certified.
- BS7273-4 Compliant.
General information
Color | White Black Green |
Material | Metal Plastic |
Shape | Square Rectangle |
Length | 13 mm 22 mm 71 mm 139 mm |
Width | 15 mm 70 mm 93 mm 134 mm |
Height | 33 mm 40 mm 97 mm 233 mm |
Warranty description | Three year |
Uniclass | |
CAWS | W90/120 Fire detection and alarm systems in domestic premises W90/125 Fire detection and alarm systems in non-domestic premises |
SKU Code | MMX-10ME |
Specification data - Fire alarm input and output modules
Classification data | |
Third-party certification | LPCB-approved. |
Device type | Ten-way input module. |
Mounting arrangement | Multi-mount enclosure 002-439. |
Enclosure | |
Material | Plastics. |
Colour | Black. |
Dimensions | 233 x 70 x 13 mm. Manufacturer guidanceH x W x D. |
Operating temperature range | -10°C to +55°C. |
Humidity | 10–93% non-condensing. |
Sustainability data
Material | Metal Plastic |
