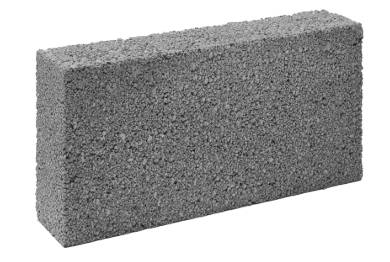

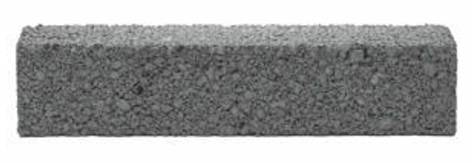

Fibo 850 140 mm 3.6 N Concrete Block

Fibo 850 super lightweight concrete blocks are suitable for general-purpose walling applications. They provide a good base for plasters, renders and fixings, while also offering easy handling and great thermal efficiency values.

They are also Category 1 masonry units manufactured under a BSI-certified Quality Management System, which is BS EN 9001 compliant.

Manufactured to BS EN 771-3, they consist of expanded clay aggregates and a mixture of other naturally occurring raw materials and cement. The clay aggregate is produced from carefully selected clays, which are bloated through heat expansion to create a low density, porous aggregate with numerous cavities. This makes Fibo 850 incredibly light and thermally efficient.

 Features and benefits:

• Provides a high level of thermal insulation, reducing the amount of additional insulation required after installation.
• Lightweight, easy to handle, and quick to lay.
• Loadbearing.
• Provides a high level of fire protection (Class A1).
• For use internally and externally, above and below ground.
• Provides a strong background for direct application of plasters and renders (no bonding agents required).
• Fixings will be held securely by the block (and can be nailed in directly).
• Certification to BES 6001 V4.0 will allow credits to be gained under environment assessment schemes such as BREEAM.
• CE marked to BS EN 771-3.
• For 7.3 N/mm² compressive strength, see Fibo 950 blocks; consult manufacturer for details.

The mortar type for work above ground level should be designation (iii) / Compressive Class M4. Stronger mixes may be used only with the permission of the designer. Stronger mixes may also be required for work below ground in accordance with PD 6697:2019. Consult manufacturer for details.

Movement joints should be considered in accordance with PD 6697:2019 at approximately 6 m spacings. In areas of concentrated stress, such as those above and below openings, consideration should be given to the use of bed joint masonry reinforcement.

The design of walls should be in accordance with relevant design standards including BS 8103-2:2013, BS EN 1996-1-1:2022 and the requirements of the Building Regulations.
