FBS II Ultracut Concrete Screw
Verified by manufacturer 4 days ago

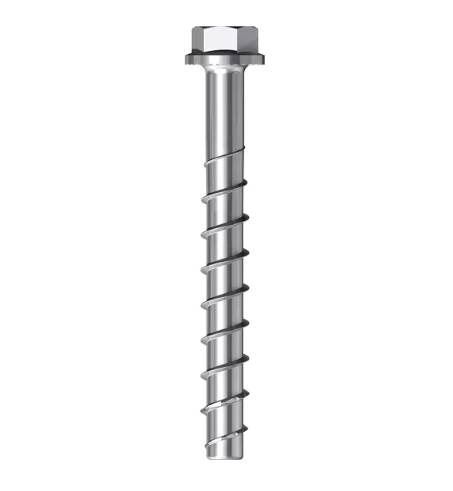

FBS II 8 US TX hexagon head
FBS II 8 US TX hexagon head
The fischer concrete screw UltraCut FBS II is a powerful anchoring solution with top installation comfort.
Application
For use with cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety.
Applications include:
- Guard rails.
- Consoles/ base plates.
- Metal profiles.
- Shelving systems.
- Protection barriers.
- Results/ beam anchors.
- Temporary anchoring, e.g. of building site equipment.
- Shuttering props.
- Reinforcement of bridges.
- Rehabilitation of old and ailing buildings.
- Rehabilitation of car parks.
Description
The fischer concrete screw UltraCut FBS II is a powerful anchoring solution with top installation comfort.
Features and benefits:
- The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety.
- The saw tooth geometry enables a quick and easy installation.
- No drill hole cleaning is required for installation in ceilings and floors.
- The concrete screw is ideal for the fixing of railings, cantilevers, and shelving systems inside.
- The UltraCut FBS II is made from zinc-plated steel (diameter 6-14).
- Stainless steel screws or steel screws with other head arrangements (countersunk, panhead etc.) also available, consult manufacturer for details.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Hexagon Circle |
Length | 55 mm 60 mm 70 mm 80 mm 100 mm |
Width | 10 mm 12 mm 14 mm 16 mm Manufacturer guidanceScrew outer diameter. |
Uniclass | |
CAWS | C51/480 Screws C51/480 Screws Z20/380 Screws |
Specification data - Carbon steel hexagon head screws
Classification data | |
Screws | |
Size | |
Thread diameter | 10 mm (8 mm drill bit). |
Length | 55 mm. 70 mm. 80 mm. 90 mm. 100 mm. 110 mm. 130 mm. 150 mm. 170 mm. 190 mm. |
Finish | Zinc-plated. |
Accessories | Guidance for specification option: A range of accessories is available, including checking gauges, nuts, bits, washers and setting tools. Consult manufacturer's literature and insert requirements, or omit. |
Certification | European Technical Assessment ETA-20/0134. European Technical Assessment ETA-15/0352. European Technical Assessment ETA-20/0321. European Technical Assessment ETA-17/0740. European Technical Assessment ETA-18/0242. UK Technical Assessment UKTA-0836-23/6750. UK Technical Assessment UKTA-0836-23/6751. DIBt Z-21.8-2049. |
Head | Hexagon bolt with TX socket. Manufacturer guidanceAlso available as a countersunk head screw; consult manufacturer for details. |
Sustainability data
Material | Steel |
Literature
FBS II Ultracut Concrete Screw Brochure
