FastFrame - Rainscreen mechanical secret fix system

Description

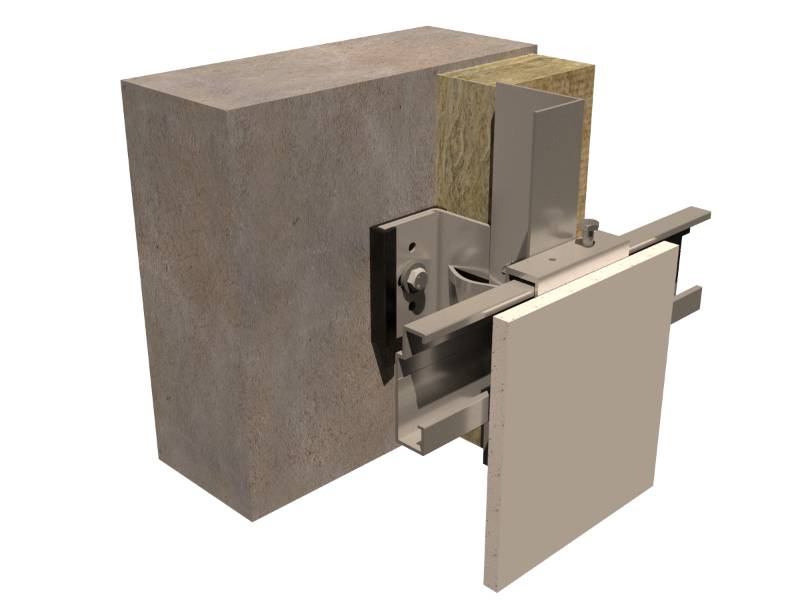

FastFrame - Rainscreen mechanical secret fix system consists of a horizontal aluminium 'C rail' which is fixed to the base 'FastFrame - Vertical rail system'. Helping hand brackets can be mechanically fixed into most types of cladding panels in excess of 8mm thick.

General information

Features

Rail carrier

Material

Aluminium

Size

66 x 20 mm

Uniclass 2015

Pr_20_85_07_04 Aluminium carrier railsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
