FastFrame - FloorSpan system

FastFrame - FloorSpan system

Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Plastestrip Profiles

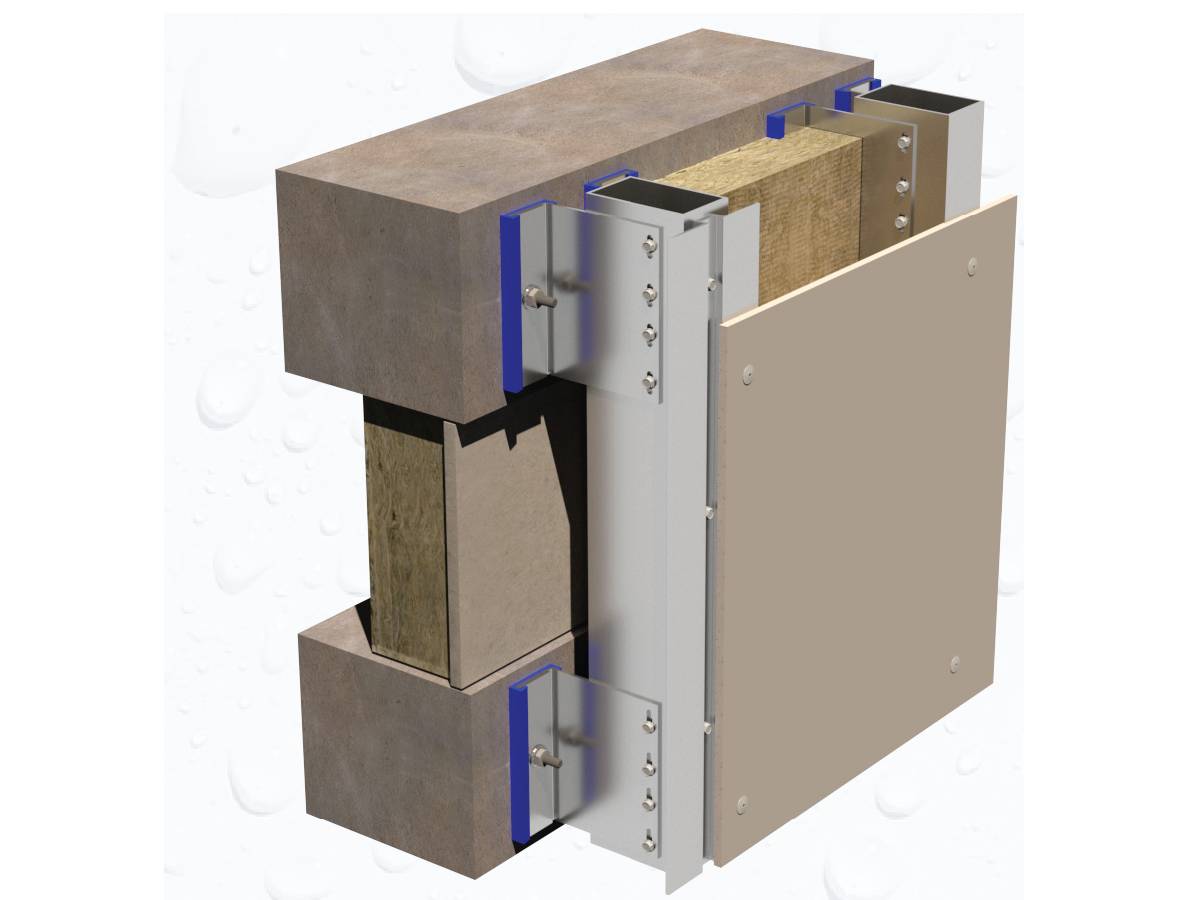

Back to back Aluminium FastFrame brackets, carrying an aluminium box section to span between floor slabs

Jump to:
+44 (0)1726 74771 www.plastestrip.com
Application

For fixing rainscreen facades that must be fixed to vertical aluminium support rails with screws, rivets or adhesive.

Description

Adjustable aluminium rainscreen cladding support system, for use on almost all building substrates and types of facades. Capable of spanning between floor slabs.

Features and benefits:

  • Compatible with various facade finishes, including spun rock, high-pressure laminate (HPL), cement-based sheets, aluminium composite material (ACM), render systems and timber.
  • Suitable for marine environments.

Applications:

For fixing rainscreen facades that must be fixed to vertical aluminium support rails with screws, rivets or adhesive.

General information

Features

Capable of spanning large floor heights, made from high strength and durable aluminium, can support any facade system

Material

Aluminium

Size

60 x 100 x 2 mm

Uniclass 2015

Pr_20_85_07_04 Aluminium carrier railsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Product Reference

FastFrame – FloorSpan

Brackets

-

Type

FS/FIX/BRD

Double bracket.

FS/FIX/BRD//XL

XL Double bracket (4 mm-thick, heavy-duty).

Depth

40 mm

50–63 mm (with 40 mm leg rail) potential cavity depth.

50 mm

56–73 mm (with 40 mm leg rail) potential cavity depth.

65 mm

40 mm leg rail: 71–88 mm; 60 mm leg rail: 80–105 mm potential cavity depth.

80 mm

88–120 mm potential cavity depth.

100 mm

108–140 mm potential cavity depth.

120 mm

128–160 mm potential cavity depth.

140 mm

148–180 mm potential cavity depth.

160 mm

168–200 mm potential cavity depth.

180 mm

188–220 mm potential cavity depth.

200 mm

208–240 mm potential cavity depth.

220 mm

228–260 mm potential cavity depth.

240 mm

248–280 mm potential cavity depth.

260 mm

268–300 mm potential cavity depth.

280 mm

288–320 mm potential cavity depth.

300 mm

308–340 mm potential cavity depth.

320 mm

328–360 mm potential cavity depth.

Support rails

Aluminium box section AL/BOX/120/60/3

Other sizes available on request.

Fasteners

-

Type

Bracket to concrete fixing: SDF–KB–10VX60E or resin anchors

Bracket to substructure.

Bracket to steel fixing: PCF/33/5.5X55 W15

Bracket to substructure.

Bracket to timber fixing: JT3–2–6.5X65

Bracket to substructure.

PCF/44/4.8X19

Bracket to rail.

Material

Stainless steel, grade 1.4301 (304)

Stainless steel, grade 1.4401 (316

Standard product features

Material:

  • Aluminium brackets: Aluminium, grade 5251 H22.
  • Aluminium support rails: Aluminium, grade 6063 T6.
  • Fasteners: stainless steel, grade 1.4301 (304) or 1.4401 (316).

Size:

Aluminium brackets: standard sizes available 65–320 mm.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
Third party certifications
  • Certificate: 18/5553
