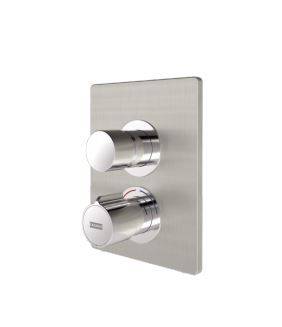

F5 Self-closing Thermostatic Shower Mixer

Self-closing, thermostatic in-wall shower mixer. The function block includes self-closing cartridge, thermostat and the mechanism for an optional water hygiene unit for automatic water hygiene flushing, program-controlled thermal disinfection (additional bypass solenoid valve cartridge necessary) and storage of statistical data.

The product has an all-metal construction. Visible parts are high-polished, chromium-plated; the holding frame including profile seal, is stainless steel cover plate 190 x 245 mm with covered screw fixing, chromium-plated plastic rosettes, backflow preventer and strainers.

Features and benefits:

• Minimum/ maximum flow time: 5 seconds/ 60 seconds.
• Minimum flow pressure: 1 bar.
• Volume flow rate (at 3 bar): 0.20 L/s.
• Calculation flow rate: 0.15 L/s.
• Hydraulically controlled, low-maintenance and stagnation-free, with ceramic disc technology.
• Flow pressure-independent due to medium-separated design.
• Stepless adjustment of flow duration, with adjustable, turn-proof temperature stop and option for manual thermal disinfection.
• Connects to hot and cold water.
• Depth adjustability of 25 mm.
