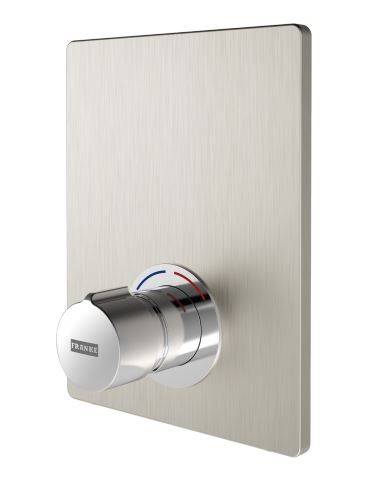

F5 Self-closing Shower Mixer
Verified by manufacturer over a year ago
Self-closing, in-wall shower mixer.
Application
For installation within shower facilities.
Description
Self-closing, in-wall shower mixer. The product has an all-metal construction. Visible parts are high-polished, chromium-plated; the holding frame including profile seal, is stainless steel cover plate 190 x 245 mm with covered screw fixing, chromium-plated plastic rosettes, backflow preventer and strainers.
Features and benefits:
- Minimum/ Maximum flow time: 5 seconds/ 60 seconds.
- Minimum flow pressure: 0.5 bar.
- Volume flow rate (at 3 bar): 0.20 L/s.
- Calculation flow rate: 0.15 L/s.
- Includes self-closing mixing cartridge.
- Hydraulically controlled, low-maintenance and stagnation-free, with ceramic disc technology.
- Flow pressure-independent due to medium-separated design.
- Stepless adjustment of flow duration, with adjustable, turn-proof temperature stop.
- Connects to hot and cold water.
General information
Finish | Polished |
Material | Stainless steel |
Length | 245 mm |
Width | 190 mm |
Height | 85 mm Manufacturer guidanceProjection. |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower thermostatic water supply sets
Materials | |
Body | Stainless steel. |
Finish and colour | Chrome plated. |
Product Reference | (F5SM2004) 210.0563.596 Guidance for specification option: Standard version. (F5SM2005) 210.0564.215 Guidance for specification option: With automatic shower pipe draining. |
Mounting box | (F5BX2001) 2030028990 Guidance for specification option: R5 Franke System Box. |
Accessories/ Other requirements | Not required. (ACSM2001) 2030044781. Guidance for specification option: Extension set. Manufacturer guidanceA range of spare parts are also available, consult manufacturer for details. |
Diameter | DN15. |
Dimensions | 190 x 245 x 85 mm. |
Inlet | G 3/4" B. |
Operation | Manual. Guidance for specification option: For in-wall mounting with box. |
