Excel Spot Warm Roof Waterproofing System - Tapered

Axter Ltd

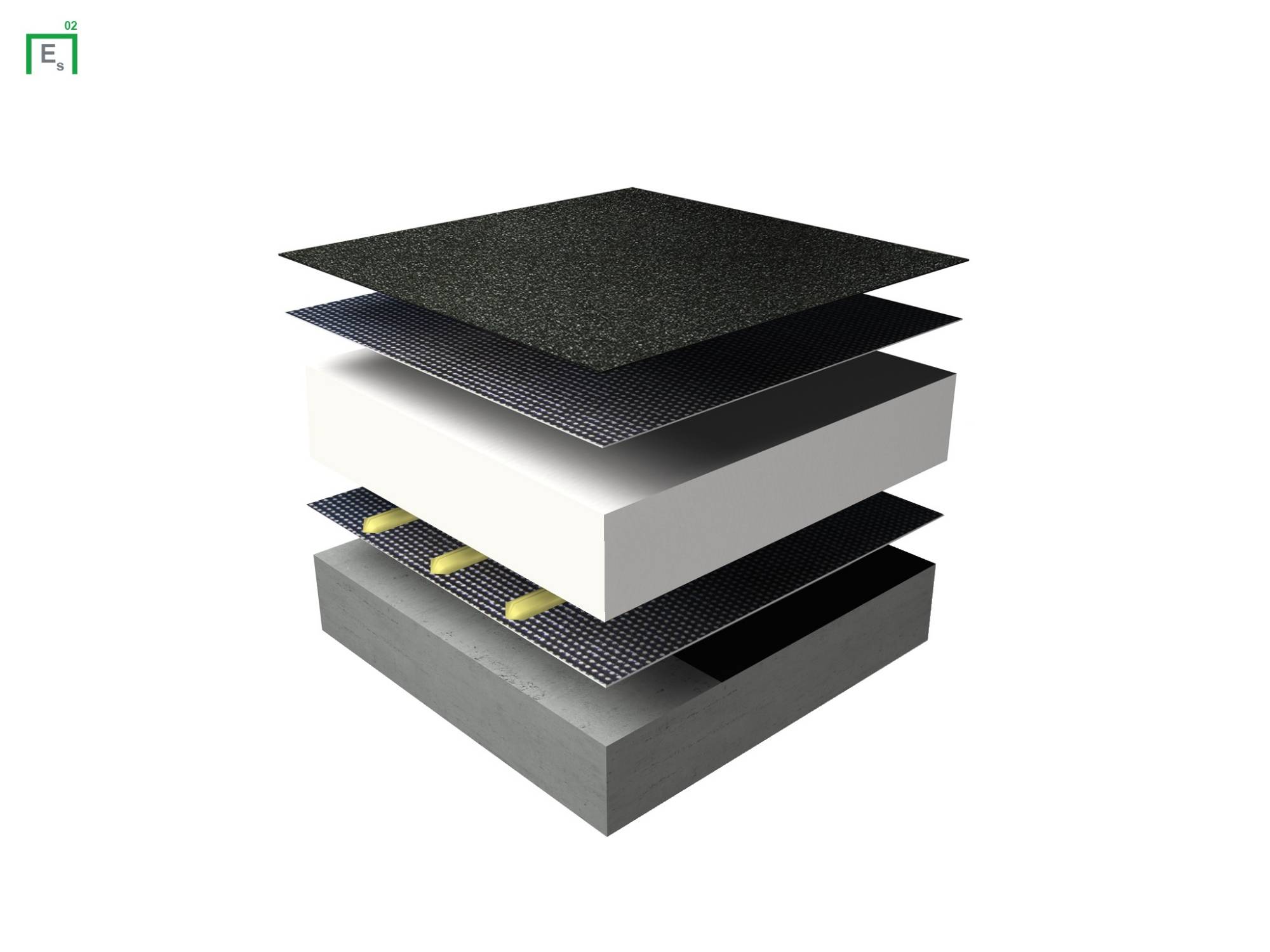

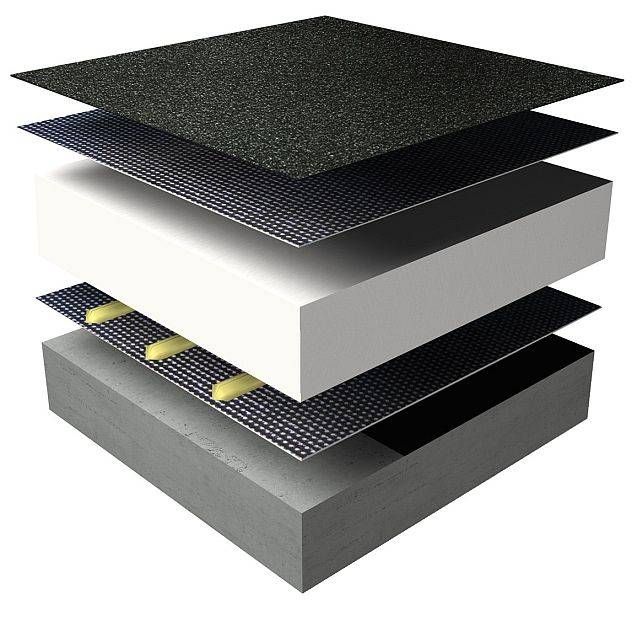

System comprising a range of reinforced bituminous membranes, straight or tapered thermal insulation and surface treatments.

Jump to:
+44 (0)1473 724056 www.axter.co.uk
Description

A comprehensive system comprising a range of reinforced bituminous membranes which can be applied to a range of flat roof substrates and can incorporate straight cut or tapered plastics insulation. Surface treatments, primers and vapour control layers are available where required.

General information
WarrantyDescription

A minimum 50 year design life expectancy (BS 8747), available with a 25 year GOLDSHIELD guarantee

Uniclass 2015
Reinforced bitumen membrane warm roof covering systems (Ss_30_40_30_72)Primary
Specification data - Reinforced bitumen membrane warm roof covering systems
Product Reference

Axter warm roofing system

Surface preparation

Not required

Closed cell tape

Side and end laps of metal decking.

Axter Thermecran

Perforated base layer.

Primer

Not required

Axter Vernis Antac

Quick drying bituminous based primer.

Vapour control layer -
Type

Not required

Axter Antivap

Aluminium lined membrane.

Axter Hyranger S

Glass fibre reinforced membrane.

Axter Hyranger Spot S3V

Glass fibre reinforced self adhesive membrane.

Axter Samtor 125

Polyester reinforced membrane for timber boarding.

Axter VAP-Al

Aluminium lined membrane.

Axter VAP-AL SK

Aluminium lined, self adhesive membrane for metal decks.

Application

Loose laid

Fully bonded - cold or self adhesive

Fully bonded - hot bitumen

Fully bonded - torching

Mechanically fixed

Insulation -
Type

Not required

Axter Hytherm ADH

Polyisocyanurate boards.

Axter Hytherm EPS

Expanded polystyrene boards.

Rockwool Duorock

Mineral wool boards.

Straight board

Tapered board

Application

Laid in cold adhesive

Laid in hot bitumen

Loose laid

Mechanically fixed

Thickness

___ mm

Isolating layer -
Type

Not required

Polyester based fleece

Axter Thermecran

Perforated layer.

Application

Loose laid

Partially bonded - cold adhesive

Partially bonded - hot bitumen

Partially bonded - torching

First layer -
Type

Not required

Axter Hyranger Spot S3V

Glass fibre reinforced self adhesive membrane.

Axter Hyranger TS CPV FMP

Composite polyester reinforced membrane.

Axter Topfix FMP

Sanded, polyester reinforced membrane.

Application

Loose laid

Fully bonded - cold adhesive

Fully bonded - hot bitumen

Fully bonded - torching

Mechanically fixed

Top layer -
Type

Axter Excel HRS

Polyester/glass reinforced cap membrane.

Axter Force 4000 Dalle

Polyester reinforced membrane.

Axter Force 4000 Trafic

Polyester reinforced membrane.

Axter Topaz

Glass fibre reinforced, mineral finished membrane.

Axter Topmetal Armalu

Glass reinforced, aluminium foil faced membrane.

Axter Topmetal Paxalpha Copper PB 4000

Glass reinforced, copper foil faced membrane.

Axter Alpaflore PY AR

Polyester reinforced, with anti root additive and mineral finish.

Application

Fully bonded - cold adhesive

Fully bonded - hot bitumen

Fully bonded - torching

Mechanically fixed

Colour

Aluminium foil

Black

Copper foil

Green

White

Flashings and detail work -
Base layer

Not required

Axter 35PY

Pre-formed angle strips.

Axter Hyranger Spot S3V

Axter Hyranger TS CPV FMO

Axter Topfix FMP

Application

Loose laid

Fully bonded - cold adhesive

Fully bonded - hot bitumen

Fully bonded - torching

Mechanically fixed

Top layer

Axter Excel HRS

Axter Force 4000 Dalle

Axter Force 4000 Trafic

Axter Topaz

Axter Topmetal Armalu

Axter Topmetal Paxalpha Copper PB 4000

Axter Alpaflore PY AR

Application

Fully bonded - cold adhesive

Fully bonded - hot bitumen

Fully bonded - torching

Mechanically fixed

Colour

Aluminium foil

Black

Copper foil

Green

White

Product Options

Insulation thickness:

Thickness of insulation will be determined by U-value requirement. Axter can advise on required thickness and means of laying.

Digital objects
PlatformCompatibleVersionCertified to
ARCHICAD
- 1.0
Vectorworks
- 1.0
AECOsim
- 1.0
Revit
Revit 2016 6 2.0
IFC
IFC2X3 5 1.3
Download now from NBS National BIM Library
