EXA TECH - Ventilated Facade
Verified by manufacturer 5 months ago

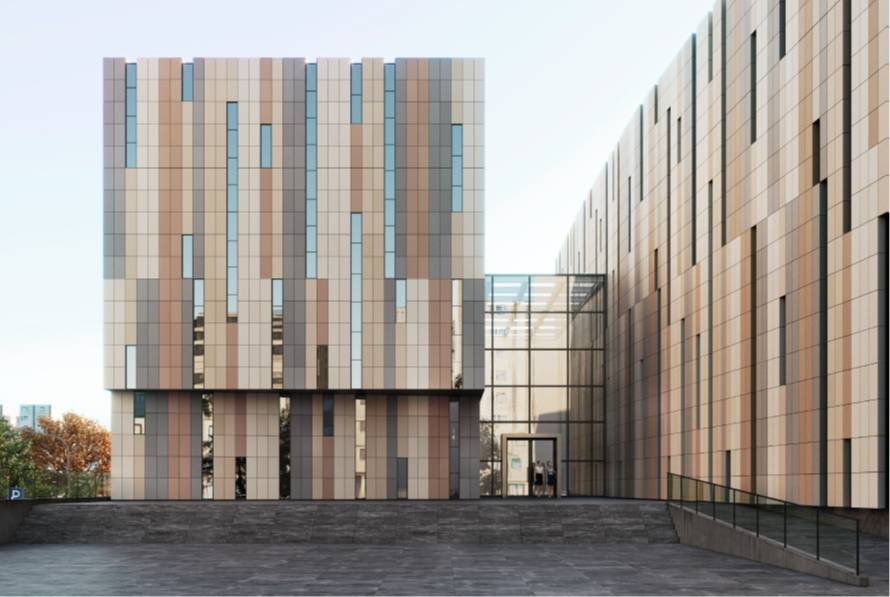

An extruded porcelain ventilated facade system.
Application
Suitable for urban architecture, industrial use and even use in all types of designs of a residential nature for interiors, exteriors and swimming pool cladding.
Description

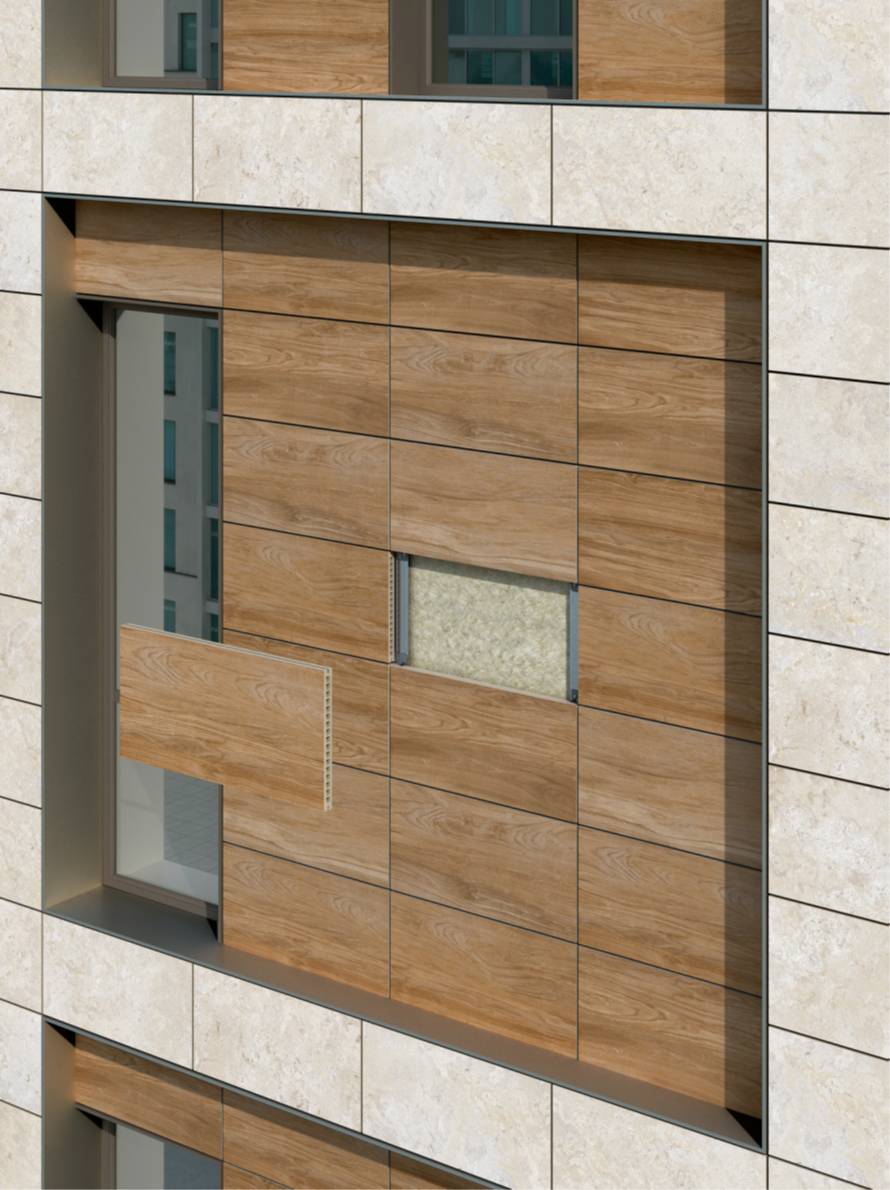

Exa-Tech is a ventilated facade system with a high-performance porcelain extruded panel. The system offers strong resistance against UV rays and long durability.
Features and benefits:
- Extruded porcelain stoneware - With virtually zero absorption values (<0.5%), prevents the proliferation of bacteria, mould and dirt build-up.
- Alveolar structure - Gives the piece greater resistance, helping to improve and increase thermal and acoustic insulation.
- Full body - Exa-Tech offers different coloured body options, giving a continuous aesthetic finish to the surface and core of the panel.
- Rectified slab - Exa-Tech FVH is rectified on all four sides, reducing tolerances to a minimum and facilitating installation.
- Durability - Porcelain panels are produced with quality materials guaranteeing resistance against breakage.
General information
Color | Beige Brown Grey |
Finish | Textured Smooth |
Material | Porcelain Ceramic |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
System performance | Manufacturer guidanceConsult manufacturer and insert requirements. |
Thermal insulation | Manufacturer guidanceInsert requirements or omit. |
Breather membrane | |
Material | Manufacturer guidanceInsert requirements or omit. |
Fasteners | Manufacturer guidanceInsert requirements or omit. |
Secondary support structure | Aluminium vertical T/L profiles and brackets, and stainless steel clips. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceInsert requirements or omit. |
Vertical | Manufacturer guidanceInsert requirements or omit. |
Cladding panels | |
Material | Ceramic panels.Guidance for specification option: Extruded porcelain tiles to EN 14411/ ISO 13006, group AIa. |
Panel joints | Manufacturer guidanceThe horizontal joint is created by the clips and it will be a fixed value. The vertical joint can be adjusted but it must be at least 3 mm. |
Reveals | Manufacturer guidanceInsert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Colour/ Finish | MC Dove. MC Ocre. MC Land. MC Gris. MC Colonial. Manufacturer guidanceMasa coloreada serie (MC) - Textured full body. BO serie - Digital printing stone. OP serie - Digital printing cement. GD serie, IN serie, EM_M, PR2 serie- Digital printing marble. PR serie, IR serie, Sapelly serie- Digital printing wood. |
Panel length | 800 mm. 1000 mm. 1200 mm. 1600 mm. |
Panel width | 397 mm. 600 mm. |
Thickness | 20 mm. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Exagres recovers 100% of the residual material generated during the production process, reintroducing approximately 40% of recycled content in the raw material. |
