EVOX DF-DS Discrete Fix Cassette - Rainscreen Facade Panels

Name: EVOX DF-DS Discrete Fix Cassette - Rainscreen Facade Panels
Brand: D Facades
SKU: gMb4HeTx3JCZV22L3ab6bN

Verified by manufacturer 1 day ago

D Facades

Product certifications:

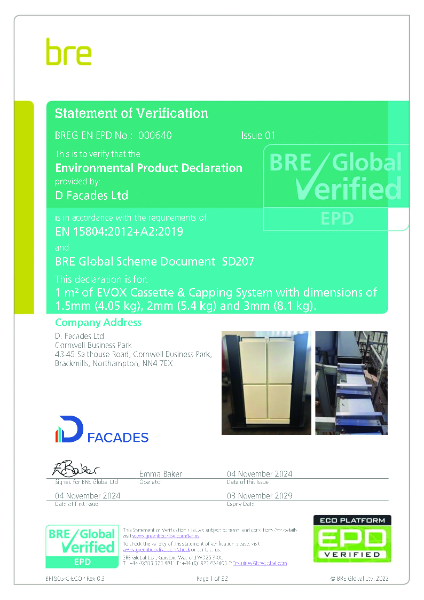

EPD
Certificate type

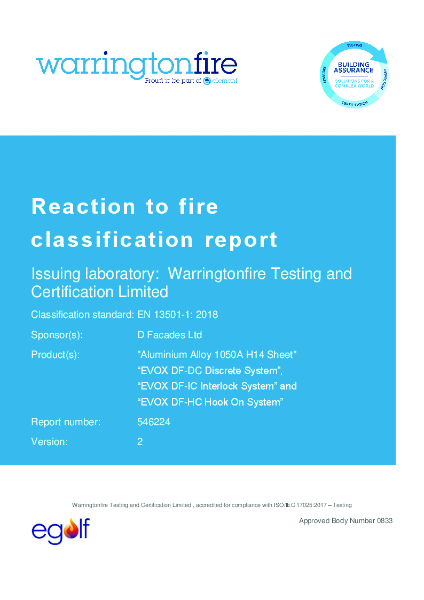

Reaction to Fire Classification
Certificate type

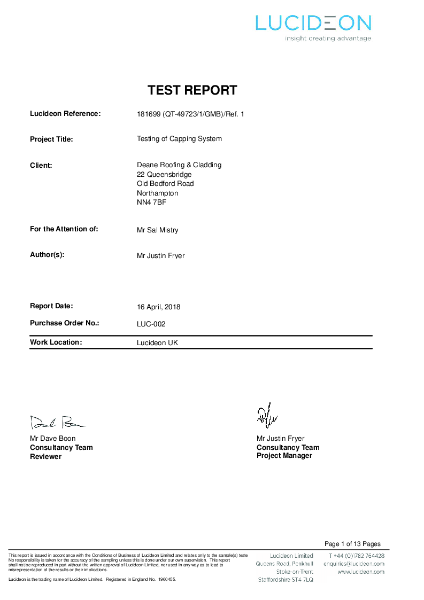

LUCIDEON Test Report
Certificate type

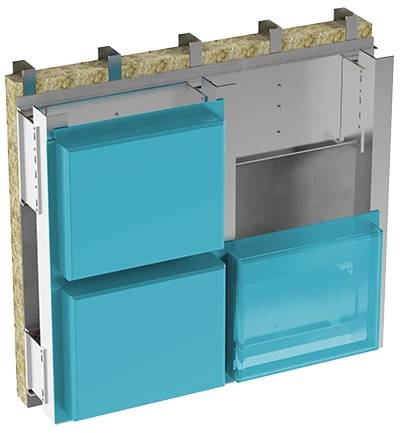

50 mm-deep discrete-fix cassette panel manufactured in 2 and 3 mm aluminium. Panels can be integrated with most rainscreen subframe structures.

Jump to:

Request BIM

00447535431977 Website

Application

Rainscreen cladding for used across multiple sectors without height restriction, including new build and refurbishment.
Panels can be integrated with most rainscreen subframe structures and are installed with fixings in horizontal and vertical joints.

Description

50 mm-deep discrete-fix cassette panel manufactured in 2 and 3 mm aluminium. Panels can be integrated with most rainscreen subframe structures and are installed with fixings in horizontal and vertical joints.

Also available in hook-on or interlocking formats, specified separately.

Features and benefits:

Easy to install.
Fire tested to EN 13501 (A rated).
Sustainable 100% - recyclable aluminium.
Lightweight.
High impact resistance.
Certified testing.
Fast track construction.
Made in Britain.
Optically flat appearance.
Design choices available.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more
Finish	Powder-coated Anodized
Material	Aluminium
Shape	Square Rectangle Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_25_71_14_02 Aluminium cassette panelsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Aluminium cassette panels

Classification data
Alloy	-
Grade	Manufacturer’s standard.
Temper	Manufacturer’s standard.
Sheet thickness	2 mm. 3 mm.
Panel size	Guidance for specification option: Consult manufacturer for options and insert requirements, including drawing or schedule as appropriate. Manufacturer guidance 50 mm deep.
Finish	-
Material	Guidance for specification option: Consult manufacturer for options and insert requirements.
Thickness	Manufacturer’s standard.
Colour	Powder-coated. Anodized. Manufacturer guidance Insert colour requirements below.
Reaction to fire	-
Panel external face	A-rated. Guidance for specification option: Consult manufacturer for details.
Panel internal face	A-rated. Guidance for specification option: Consult manufacturer for details.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Manufacturer’s standard.
