Eurothane® FP
Description

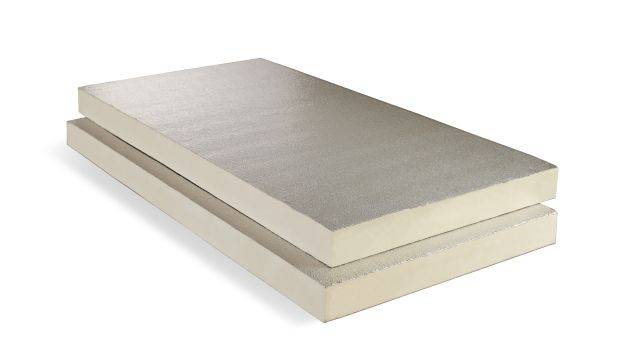

Eurothane® FP insulation is a high performance rigid polyisocyanurate (PIR) foam board for use in rainscreen cladding systems (up to 18m in height) and soffit lining applications. It is faced both sides with a textured aluminium foil that provides a Class 0 surface spread of flame rating.W/m·K

Features:

  • Manufactured to ISO 9001 Quality and ISO 14001 Environmental Management Systems.
  • Manufactured using a blowing agent with zero ozone depletion potential (ODP) and low global warming potential (GWP).
  • Low thermal conductivity of 0.022 W/mK.
  • Class 0 surface spread of flame rating.
  • CE marked in accordance with harmonized European standard EN 13165.

General information

Features

Manufactured to ISO 9001 Quality and ISO 14001 Environmental Management Systems

Manufactured using a blowing agent with zero ozone depletion potential (ODP) and low global warming potential (GWP)

Low thermal conductivity of 0.022 W/mK

Class 0 surface spread of flame rating

CE marked in accordance with harmonized European standard EN 13165

Uniclass 2015

Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary

CAWS

P10/140 Insulation fitted between rafters

P10/148 Multilayer blanket insulation fixed under or above rafters

P10/15 Insulation fitted between rafters

P10/185 Soffit insulation

P10/190 Insulation fitted between studs

P10/217 Insulation slabs fixed to backing wall

P10/220 Sound insulation within timber framed separating wall

P10/240 Insulation fitted between floor joists

P10/40 Insulation fitted between studs

P10/45 Insulation laid between floor joists

Specification data - Polyisocyanurate (PIR) foam boards

Product Reference

Eurothane® FP

Thickness

25 mm

45 mm

55 mm

65 mm

75 mm

80 mm

85 mm

95 mm

105 mm

125 mm

160 mm

Standard product features

Board size:

Thickness:

All sizes are non-stock, minimum order quantities may apply. Consult manufacturer for details.

2400 x 1200 mm.

Thermal conductivity:

0.022 W/m·K.

Fire performance:

Class 0 surface spread of flame rating (BS 476-6 & 7).

Compressive strength:

Exceeds 140 kPa at yield.
