Application

Suitable for light to frequent duty use, ideally suited to smaller washrooms and offices, restaurants, sports clubs and bars.

Description

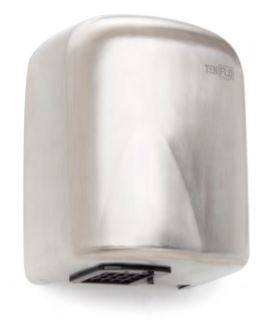

Compact, cost-effective hand dryer that is easy to clean and use. It has a sleek, compact design and a hardwearing, corrosion-proof stainless steel casing. It has a 72 dB operating volume and a 20-second wet-to-dry speed.

Features and benefits:

  • Stylish, curvaceous appearance.
  • Durable stainless steel casing protects against corrosion and vandalism.
  • Automatic 'no touch' operation makes this a hygienic choice.
  • Low energy use with 1.5 kW rating to help reduce the carbon footprint.
  • Auto cut-off prevents unnecessary energy waste.
  • Drying time is approximately 20 seconds from wet-to-dry.
  • Quiet - at just 72 dB, this is ideal for smaller washrooms or low to medium traffic areas.
  • Lightweight (light enough to go on any wall), easy to install and maintain.
  • Finishes available in brushed metal, polished chrome and arctic white.
  • Finishes available in brushed metal, reflex silver and arctic white.

Application:

Suitable for light to frequent duty use, ideally suited to smaller washrooms and offices, restaurants, sports clubs and bars.

General information
Color

Brushed Metal, Chrome, White

Features

Automatic operation, Vandal proof hardware, 20 seconds drying time, 72db noise output, Easy installation

Finish

Brushed Metal, Chrome, White

Material

304 Stainless Steel

Shape

Rectangular, chamfered profile

Size

225mm W x 282mm H x 160mm D

WarrantyDescription

2 years

Uniclass 2015
Hand dryers (Pr_40_70_62_37)Primary
Specification data - Hand dryers
Product Reference

Essential Hand Dryer

Standards

CE, RoHs

Form

Hands-under

Operation

Infrared automatic ‘no touch’

Timer

60 seconds auto cut off

Electrical supply -
Power rating

1500 W

Rated operational voltage

220–240 V AC

Frequency

50/ 60 Hz

Body -
Finish

Arctic white

Brushed metal

Polished chrome

Ingress protection minimum

IPX1

Noise level at 1 m maximum

72 dB

Installation

Wall mounted

Drying time

20 seconds

Air speed

12 m/s

Thermal protection

Cut off above 70°C

Net weight

4 kg

Standard product features

Colour:

Dependent on finish.

Features:

Automatic operation, vandal proof hardware, 20 seconds drying time, 72 dB noise output, easy installation.

Finish:

Three finishes available.

Material:

Stainless steel, grade 1.4301 (304).

Shape:

Rectangular, chamfered profile.

Size:

225 x 282 x 160 mm (w x h x d).

Warranty description:

Two years.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
