Equinox Cubicles

Description

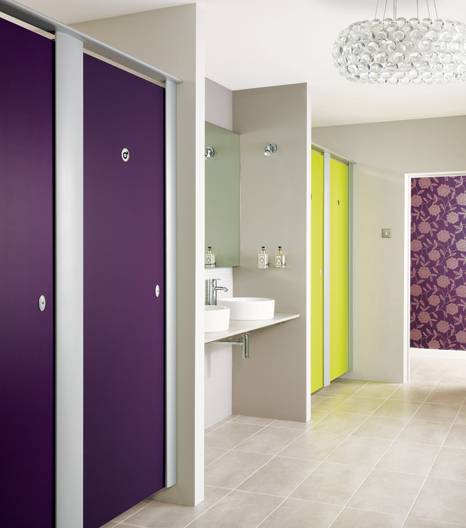

Frameless cubicles with curved aluminium pilasters and elliptically-formed hardware. Available in a choice of three finishes.

General information

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems

Product Reference

Equinox HPL

High pressure laminate covered chipboard panels.

Equinox MFC

Melamine faced chipboard panels.

Equinox SGL

Solid grade laminate panels.

Depth

Maximum: 2000 mm from face of back wall or rear ducting.

Colour/ Finish

-

Panels

Consult Venesta Washroom Systems for details of colour range.

Doors

Consult Venesta Washroom Systems for details of colour range.

Rails and pilasters

Dark grey aluminium

Light grey aluminium

Polished aluminium

Fittings

Dark grey aluminium

Light grey aluminium

Stainless steel

To match polished aluminium rails and pilasters.

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

Dimensions:

  • Height: 2115 mm from FFL to top of headrail.
  • Floor clearance: 100 mm.

General:

  • Headrail: High strength, extruded aluminium.
  • Pilasters: High strength, extruded aluminium forming slim section rounded pilasters.
  • Wall fixings: Continuous channel.
  • Pedestal: Complete with adjusting shims and security fixings.

Ironmongery:

  • Hinges: Aluminium, anti-tamper safety hinge.
  • Bolts: Lever-operated indicator bolt with circular faceplate and emergency release facility.

Product Options

Product reference:

– Equinox HPL:

  • Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: 18 mm.
  • Edge treatment: 1 mm thick matching PVC.

– Equinox MFC:

  • Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
  • Thickness: 18 mm.
  • Edge treatment: 1 mm thick matching PVC.

– Equinox SGL:

  • Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.
  • Thickness: 13 mm.
  • Edge treatment: All edges radiused and polished (black).
