EOS97 Modular Flat Glass Rooflight - Fixed and Opening - Rooflight
Verified by manufacturer 1 day ago
EOS97 Modular Flat Glass Rooflight - Double Glazed (With upstand)
EOS97 Modular Flat Glass Rooflight - Double Glazed (With upstand)
Robust and insulated modular glass rooflight, available with fixed and opening units.
Application
Flat or low pitched roof applications - designed for roofs between 0–15°.
Suitable for use in projects where environmental impact is a high priority.
Description
Robust and insulated modular glass rooflight, available with fixed and opening units.
Features and benefits:
- Allows the combination of fixed, opening or walk-on rooflights.
- Flexibility of design.
- Electrically operated versions with concealed integrated motors.
- Waterproof top plate acts as an effective gutter system, efficiently channeling away excess water.
- Manufactured to meet the requirements of EN 14351-1.
- Made-to-measure sizes available.
- Double and triple glazing available.
- Glazing design allows for draining and ventilation behind the pane with glazing pads.
- The glass surface is raised above the frame edge to allow water run-off. Glass surface edges have been painted with a ceramic paint to protect against UV degradation.
- Complete unit (glass, frame and kerb) can be supplied to a CWCT TN66/67 specification for impact resistance to reduce the likelihood of death or injury caused by falls.
- To avoid water pooling, upstands can be supplied with a 5° slope.
- Designed for quick and simple installation by any roofing/ main contractor.
- Part L compliant upstand.
- Air permeability tested to EN 12207.
- Watertightness tested to EN 12208.
General information
Color | Grey Guidance for specification option: Frame. Clear Guidance for specification option: Glazing. Other |
Finish | Powder-coated Matt |
Material | Aluminium Glass |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Dependent on glazing configuration and upstand size. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/460 Rooflights L10/45 Rooflights |
Specification data - Framed rooflights
Classification data | |
Form | Modular. |
Size | Manufacturer guidanceConsult manufacturer and insert requirements. Can be supplied in any size up to 4000 mm. |
Product performance | |

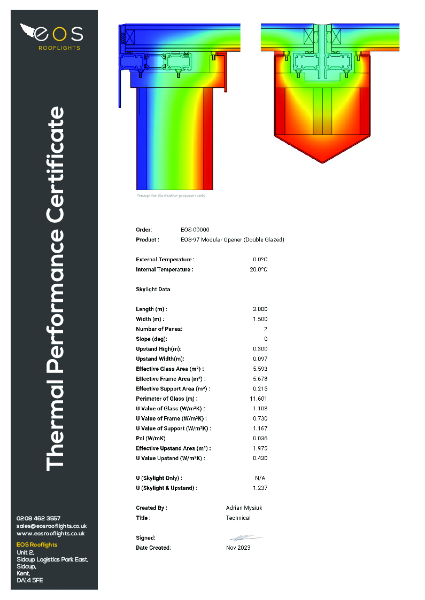

Whole window U-value | 1.23 W/m²K. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Powder coating. |
Colour | RAL 7016, anthracite grey. Guidance for specification option: 60% gloss. Other. Guidance for specification option: A wide choice of RAL frame colours available. Consult manufacturer for details. |
Glazing or infill | |
Type | Insulating glass units. Other. Guidance for specification option: Other glass specifications are available on request, including laminated safety glass. Consult manufacturer and insert requirements. |
Construction | Double skin. Guidance for specification option: Double glazed specification: 32 mm low emissivity insulating glass units, 8 mm clear heat soak tested toughened glass outer pane, 16 mm argon filled cavity, 8.8 mm clear laminated float glass inner pane. Other configurations available. Consult manufacturer for details. |
Colour | Clear. |
Coating | Not required. Solar control coating. Easy clean coating. |
Integral kerb | Aluminium. Guidance for specification option: Supplied unfinished. |
Operation | |
Type | N/A - fixed pane. Powered, electric. |
Control | N/A - fixed pane. Standard switch. Smart switch. Guidance for specification option: Smart switch that allows you to personalize settings for automatic operation based on changing weather conditions and external temperatures. Can be controlled via a mobile phone. |
Accessories | Not required. Black banding. Guidance for specification option: Add a sleek aesthetic with a black vinyl paint border applied before glazing. This feature creates a seamless finish when viewed from above, ensuring a clean and modern look from every angle. |
Upstand | Insulated upstand. Guidance for specification option:
Consult manufacturer for details and insert requirements. Manufacturer guidancePolyisocyanurate (PIR) urethane insulation sandwiched between mm structural OSB 2. The top plate is constructed using foam board with triple gaskets to ensure airtight seal. |
Design | Manufacturer guidanceInsert requirements - can be a mix of fixed, opening or walk-on rooflights. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
