Envello Décor - Decorative and Structural Aluminium Trim

Verified by manufacturer 4 months ago

Décor Shutter, 16 mm installed width

Millboard Company Ltd, The Variant:
Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • CWCT Certificate

    CWCT Certificate

    Certificate type

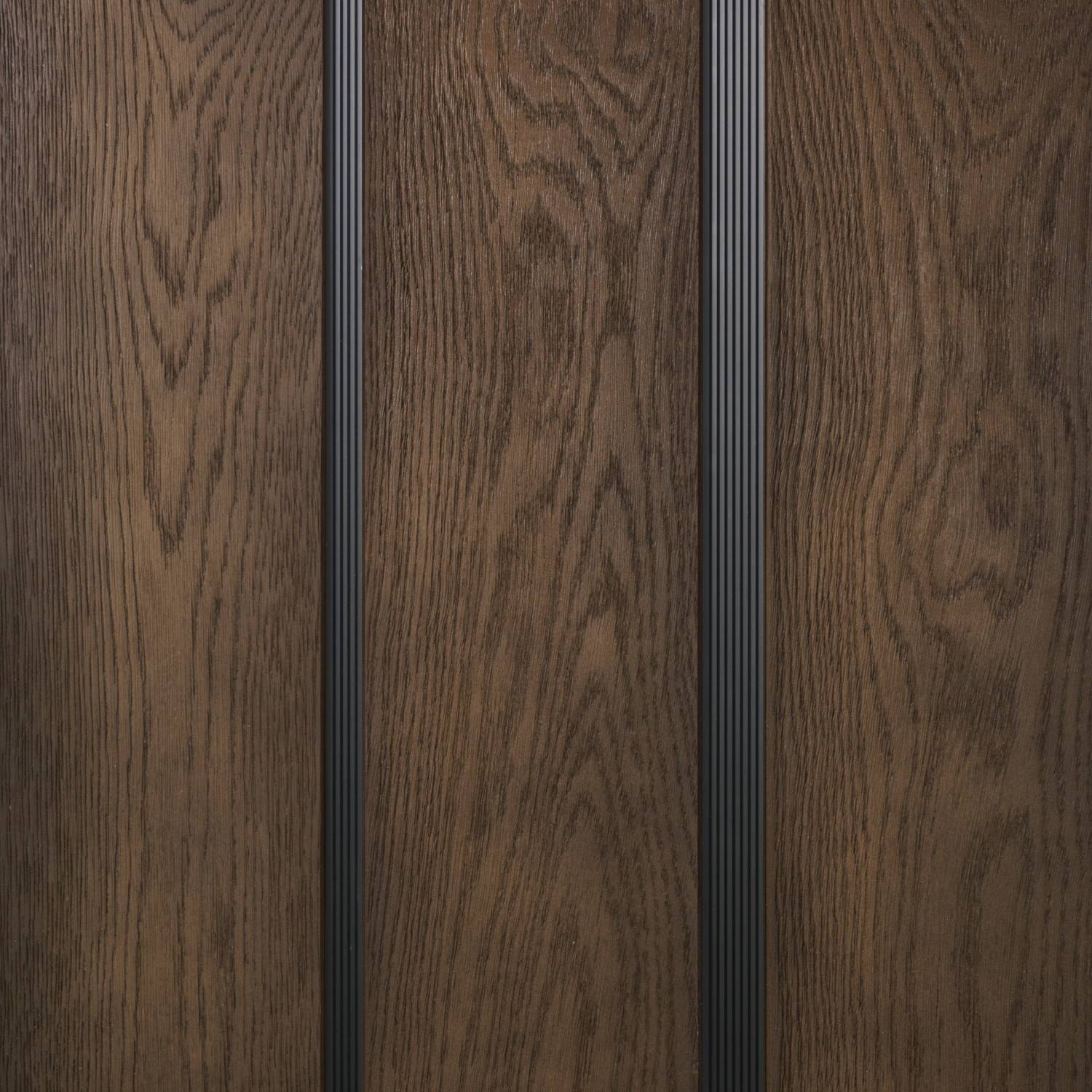

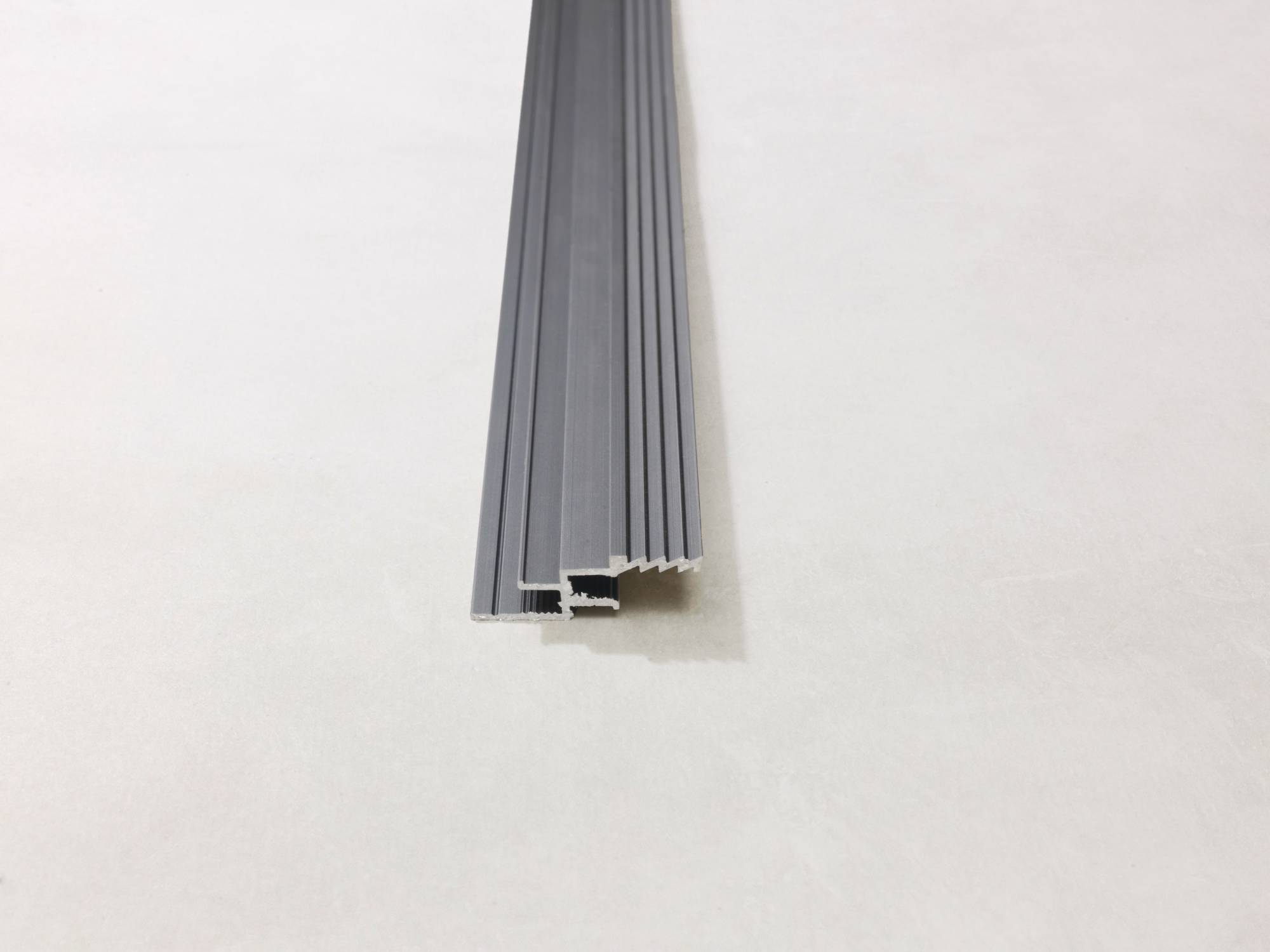

A decorative and structural aluminium trim designed to enhance cladding installations, creating a higher premium feel and overall finish.

Jump to:
+44 (0)24 7643 9943 Website

Application

Designed to enhance cladding installations, creating a higher premium feel and overall finish.

Suitable for outdoor use.

Description

A decorative and structural aluminium trim designed to enhance cladding installations, creating a higher premium feel and overall finish.

Allows the users to either section/ zone their cladding area or create a visually distinct display further refining their outdoor living space.


Features and benefits:

  • Premium finish - Finished to Qualanod standards.
  • Multiple widths - Available in two widths and profiles for multiple design-led finishes.
  • Highly UV resistant - Anodized to AA25 architectural grade for high UV resistance.
  • Suitable for outdoor use - 6063 Grade aluminium provides excellent corrosion resistance.
  • Shadow Line+ compatible.
  • Superior strength - Enables spans of up to 900 mm centres, when used with Shadow Line+.


Fire-rated system:

  • The Envello Décor has been tested to EN 13501-1 as a system incorporating the Shadow Line+ cladding, when used in conjunction with each other the Envello Décor improves the overall fire performance of the system classification to a Euroclass C.
  • This testing is carried out by a UKAS-accredited lab and is tested in accordance with how the cladding will be fitted as per the installation guide.

General information

Color

Black

Bronze

Gold

Finish

Anodized

Material

Aluminium

Shape

Other

Length

3600 mm

Width

47 mm

Guidance for specification option:

Installed width: 16 mm.

60 mm

Guidance for specification option:

Installed width: 32 mm.

Height

16 mm

Uniclass

Pr_35_90_28_52 Metal finishing trimsPrimary

CAWS

H21/15 Horizontal timber weatherboarding

H21/116 Horizontal timber weatherboarding

H21/10 Vertical timber weatherboarding

H21/115 Vertical timber weatherboarding

H21/111 Horizontal timber weatherboarding

H21/110 Vertical timber weatherboarding

Specification data - Metal finishing trims

Fire performance

-

Reaction to fire

The Envello Décor has been tested to EN 13501-1 as a system incorporating the Shadow Line+ cladding, when used in conjunction with each other the Envello Décor improves the overall fire performance of the system classification to a Euroclass C.

Guidance for specification option:

This testing is carried out by a UKAS-accredited lab and is tested in accordance with how the cladding will be fitted as per the installation guide.

Material

Aluminium EN AW-6063 T6.

Finish

-

Coating

Anodized finish to Architectural (construction) grade AA25.

Colour

Carbon.

Bronze.

Gold.

Texture

Manufacturer's standard.

Profiles

Décor Shutter.

Size

16 mm.

Guidance for specification option:

Installed width.

Overall width: 47 mm.

Manufacturer guidance

Length: 3600 mm (as supplied).

Depth: 16 mm.

Weight

1.4 kg.

Guidance for specification option:

Per 3.6 m length.

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium

Third party certifications

BS EN 13501-1

BS EN 13501-1

Envello Décor and Shadow Line+ Fire test report

CWCT Certificate

CWCT Certificate

Envello Décor and Shadow Line+ Wind test report

Literature

Envello Decor Product Spec Sheet

Envello Decor Product Spec Sheet
