Elite System 56
Description

All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee ; the system must be installed by a Euroclad Elite Systems recommended installer.

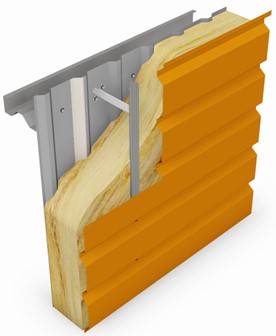

Elite System 56 is fast and economical horizontal clad walling for light industry, retail, dry sports and leisure buildings.

Elite System 56fr fire rated version is also available.

Specification data
Product Reference

Elite System 56

External sheet -
Type

MW5CS profile.

Finish

Corus Colorcoat HPS200®

Corus Colorcoat Prisma®

Colour

___

Vapour control membrane

Monarflex VB

Procheck 500

Not required

Accessories

Flashings, finish and colour matching external sheet

Not required

Standard product features

External sheet cover width:

  • Type: Euroclad MW5CS, 0.7 mm steel.
  • Cover width: 1000 mm.

External Sheet Colours:

From Corus Standard Range, Repertoir and through consultation with Euroclad.

Liner panel:

Euroclad 19/1000 0.4 mm steel, standard factory finish.

Spacers (0.30 U-value):

Eurobar Mast 135 mm high.

Breather membrane:

Euroclad does not recommend a breather membrane in Elite systems.

Vapour control membrane:

Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.

System U-value:

  • 0.30 W/m²°C: 140 mm Euroclad Elite Flexislab.

Alternative spacer/ insulation combinations are available to achieve greater U-values.

Acoustic performance (140 mm Euroclad Elite Flexislab/ 0.7 mm steel):

SRi = 41dB - contact Euroclad for details.

Product Options

External sheets:

Coating:

  • Steel (Corus Colorcoat): HPS200®/ Prisma® - a Corus Confidex® guarantee is given with these coatings.

Accessories:

Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
