Horizontal Wall Cladding System
All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee; the system must be installed by a Euroclad Elite Systems recommended installer.
Elite System 55 is fast and economical horizontal clad walling for light industry, retail, dry sports and leisure buildings.
Elite System 55fr fire rated version is also available.

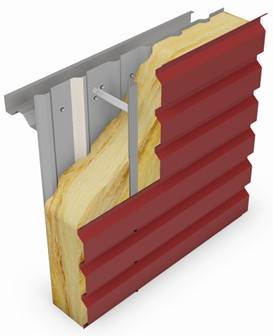

Elite System 55
32/ 1000 Reverse profile.
Corus Colorcoat HPS200®
Corus Colorcoat Prisma®
Vapour control membrane
Flashings, finish and colour matching external sheet
Standard product features
External Sheet Colours:
From Corus Standard Range, Repertoir and through consultation with Euroclad.
Euroclad 19/1000 0.4 mm steel, standard factory finish
Spacers (0.30 U-value):
Eurobar Mast 135 mm high.
Euroclad does not recommend a breather membrane in Elite systems.
Vapour control membrane:
Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.
Acoustic performance (140 mm Euroclad Elite Flexislab/ 0.7 mm steel):
SRi = 41dB - contact Euroclad for details
Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
