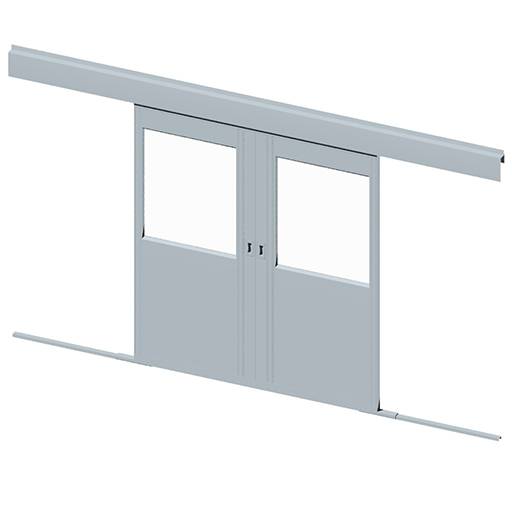

Elan double skin steel, Bi-parting sliding doors are available in a variety of styles for use with the Elan panel partitioning wall system.
Elan is a high quality demountable, relocatable double skin steel partitioning system designed and manufactured for commercial, office and factory applications. The system is based on standard panels in full steel, full glass or steel and glass and comes complete with a range of door types and styles.
The system features controlled factory assembled units of monobloc construction, with two steel skins separated by a composite honeycomb or rockwool core and uses a concealed cleat system for site assembly. Removable skirting and vertical junction channels allow access for wiring. All components are factory finished in epoxy powder coat.
Epoxy powder coated
Carbon steel facings with insulation core
Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required
K30/10 Relocatable partition system
K30/130 Relocatable partition system
K30/135 Relocatable partition/ Ceiling system
|Fire resistance of complete system (to BS 476-22)|
30 minutes integrity
60 minutes integrity
|Wall/ Vertical structure|
Exposed framing to panels, comprising steel channels cleat fixed together to form a concealed joint
Matching sections for corners and junctions. 50 x 50 mm steel hollow section support mullions at 3000 mm centres bolted to floor with M10 countersunk expanding anchors
Galvanized steel floor channel with plastic or steel skirting
Top capping channel and cover strips for joints
Double skin steel panels with composite honeycomb or rockwool infill
Epoxy powder coated
Grey BS 00A05
Grey RAL 7037
Sandstone BS 08B17
White RAL 9010
Blue RAL 5010
Concealed cleat system
Chair rail glazed
Steel-glass-steel with glazed panel from 1091–2031 mm above ffl
Steel-glass-steel with glazed panel from 1091–2387 mm above ffl
6.4 mm single glazing
6 mm single glazing
Double glazed with 36 mm cavity
Integral blinds within double glazed units
Hinged steel single doors
Hinged steel double doors
Sliding steel doors
Timber single doors
Timber double doors
Steel pressed box section
900 x 2023 mm
1000 x 2023 mm
1851 x 2023 mm
2051 x 2023 mm
1000 x 2180 mm
2000 x 2180 mm
2400 x 2180 mm
|Cable management/ Outlets|
Ceilings and lights
Sliding glass hatch
Drop down hatch with hinged flap
Doors with automatic operation
|Standard product features|
Maximum sound reduction to BS 5821-1: 1984 over speech range 400-2500 Hz:
Nominally 17 kg/m² excluding glass.
Partitions are available as non-fire rated or fire rated, complying with BS 476-22, providing 30 or 60 minutes fire resistance, depending on panel elevation and glazing options. Consult Troax Lee manufacturing Ltd for details of panel fire rating.
Partition abutments, Cable management/ outlets:
Consult manufacturer for recommendations and details.
Standard widths: 300, 400, 500, 600, 700, 800, 900, 1000 mm (non-standard widths are available).
Standard heights: 2438, 2743, 3048 and 3657 mm (non-standard heights and multi-tiered options are available).
Panels are available in a range of five standard colours, but non-standard and corporate colours, to the nearest BS or RAL colour, are available on request.
Ironmongery options include: 3 lever mortise lock with lever handles, pull handle and push plate, mortise lock with euro profile cylinder, digital lock, claw lock for sliding doors and all doors can be padlockable.
