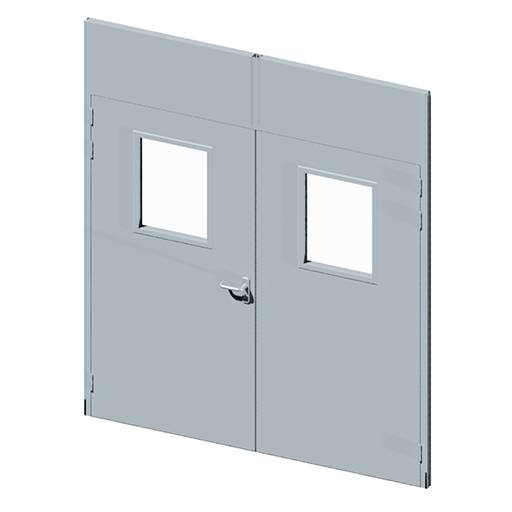

Elan double skin steel, double hinged doors are available in a variety of styles for use with the Elan panel partitioning wall system.

Jump to:
+44 (0)1793 542000 www.troax.com/gb

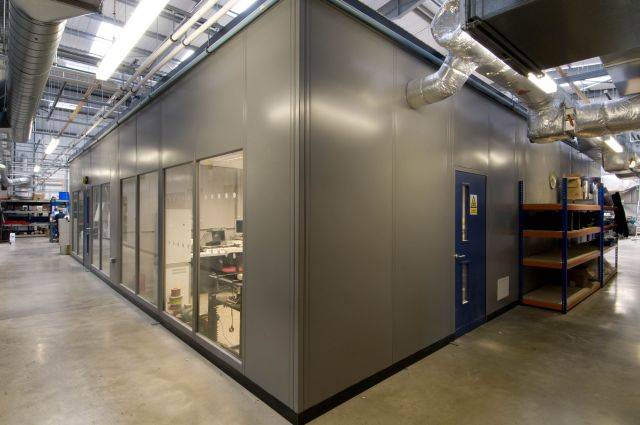

Elan is a high quality demountable, relocatable double skin steel partitioning system designed and manufactured for commercial, office and factory applications. The system is based on standard panels in full steel, full glass or steel and glass and comes complete with a range of door types and styles.

The system features controlled factory assembled units of monobloc construction, with two steel skins separated by a composite honeycomb or rockwool core and uses a concealed cleat system for site assembly. Removable skirting and vertical junction channels allow access for wiring. All components are factory finished in epoxy powder coat.

General information


Epoxy powder coated


100 mm high powder coated kick plate


Carbon steel facings with insulation core




Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary


K30/10 Relocatable partition system

K30/130 Relocatable partition system

K30/135 Relocatable partition/ Ceiling system

Specification data - Partition panels

Product Reference

Elan partitioning

Fire resistance of complete system (to BS 476-22)

Non-fire rated

30 minutes integrity

60 minutes integrity

Partition height

2438 mm

2743 mm

3048 mm

3657 mm

Partition abutments



Insert requirements.

Deflection allowance

Insert requirements.


Insert requirements.

Wall/ Vertical structure

Insert requirements.


Exposed framing to panels, comprising steel channels cleat fixed together to form a concealed joint

Junctions/ Corners

Matching sections for corners and junctions. 50 x 50 mm steel hollow section support mullions at 3000 mm centres bolted to floor with M10 countersunk expanding anchors

Skirtings/ Sills

Galvanized steel floor channel with plastic or steel skirting


Top capping channel and cover strips for joints

Solid panels

Double skin steel panels with composite honeycomb or rockwool infill


Insert requirements.


Epoxy powder coated


Grey BS 00A05

Grey RAL 7037

Sandstone BS 08B17

White RAL 9010

Blue RAL 5010

Joint treatment

Concealed cleat system

Glazed panels



Fully glazed

Transom glazed

Chair rail glazed

Steel-glass-steel with glazed panel from 1091–2031 mm above ffl

Steel-glass-steel with glazed panel from 1091–2387 mm above ffl


Insert requirements.


6.4 mm single glazing

6 mm single glazing

Double glazed with 36 mm cavity


Insert requirements.


Integral blinds within double glazed units




Hinged steel single doors

Hinged steel double doors

Sliding steel doors

Timber single doors

Timber double doors

Door frames

Steel pressed box section


900 x 2023 mm

Single leaf.

1000 x 2023 mm

Single leaf.

1851 x 2023 mm

Double leaf.

2051 x 2023 mm

Double leaf.

1000 x 2180 mm


2000 x 2180 mm


2400 x 2180 mm


Vision panels

Insert requirements.


Manufacturer's standard

Cable management/ Outlets

Insert requirements.



Ceilings and lights

Sliding glass hatch

Drop down hatch with hinged flap

Other requirements

Doors with automatic operation

Standard product features

Sound insulation:

Maximum sound reduction to BS 5821-1: 1984 over speech range 400-2500 Hz:

  • All-steel panels: 36 dB.
  • Part single glazed panels with 6 mm thick glass: 36 dB.
  • Part double glazed panels with insulating glass units: 38 dB.

Panel weight:

Nominally 17 kg/m² excluding glass.

Product Options

Fire resistance:

Partitions are available as non-fire rated or fire rated, complying with BS 476-22, providing 30 or 60 minutes fire resistance, depending on panel elevation and glazing options. Consult Troax Lee manufacturing Ltd for details of panel fire rating.

Partition abutments, Cable management/ outlets:

Consult manufacturer for recommendations and details.


Standard widths: 300, 400, 500, 600, 700, 800, 900, 1000 mm (non-standard widths are available).

Standard heights: 2438, 2743, 3048 and 3657 mm (non-standard heights and multi-tiered options are available).


Panels are available in a range of five standard colours, but non-standard and corporate colours, to the nearest BS or RAL colour, are available on request.


  • Single leaf hinged steel or timber doors: 900 and 1000 mm wide (steel only) x 2023 mm high, with overpanels to suit overall height of partition. non-standard door sizes are available.
  • Double leaf hinged steel or timber doors: 1851 and 2051mm (steel only) x 2023 mm high, with overpanels to suit overall height of partition. non-standard door sizes are available.
  • Sliding steel doors: 1000, 2000 and 2400 mm wide x 2180 mm high. Sliding doors use low friction trolleys for maintenance free operation. Bottom guide rails do not intrude into door opening and allow free access for all types of traffic. Doors can be single leaf or bi-parting.


Ironmongery options include: 3 lever mortise lock with lever handles, pull handle and push plate, mortise lock with euro profile cylinder, digital lock, claw lock for sliding doors and all doors can be padlockable.


  • 25mm slat venetian blinds can be incorporated into double glazed panels.
  • Steel ceilings, self-supported tiled ceilings and suspended tiled ceilings.
  • Sliding glass hatch: For inter communication between areas.
  • Drop-down hatch: Hinged steel panel can be used as a serving shelf.
