EJOT BA-V Plus M8 (Carbon Steel)
EJOT BA-V Plus M8 (Carbon Steel)
European Technical Approval (ETA)
Certificate type
A range of through bolts for indoor and outdoor use.
Application
- For embedment in cracked and non-cracked concrete
- For anchoring medium-heavy to heavy loads, such as pillars and metal/ wooden structures.
- EJOT® BA-V Plus is suitable for dry indoor conditions with temporary condensation.
- EJOT® BA-F Plus for humid indoor use, outdoor inland rural areas, only in non-safety critical applications.
- EJOT® BA-E Plus is suitable for dry internal and outdoor use, including industrial and coastal environments.
- EJOT® BA-E Plus HCR is for extremely corrosive conditions, such as high chlorine concentrations (swimming halls) road tunnels and desulphurization plants.
Description

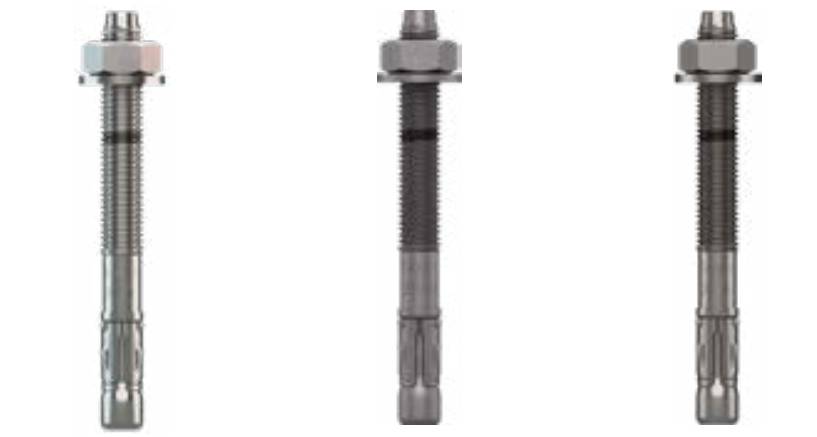

A range of through bolts for indoor and outdoor use.
- EJOT® BA-V Plus is a galvanized zinc-plated carbon steel through bolt for cracked and non-cracked concrete.
- EJOT® BA-F Plus is a hot-dipped galvanized carbon steel through bolt for cracked and non-cracked concrete.
- EJOT® BA-E Plus is a A4 stainless steel through bolt for cracked and non-cracked concrete. High corrosion resistance (HCR) 1.4529 stainless steel is available upon request.
Features and benefits:
- Two embedment depths (M8–M12).
- 78–178 mm lengths available.
- Installation torque achieved with 30–50% fewer revolutions.
- Setting depth marking on the thread.
- Marked with an identification code.
- ETA approved.
- Fire resistance: F30, F60, F90, F120.
General information
Color | Grey Silver |
Finish | Galvanized |
Material | Steel Stainless steel |
Shape | Hexagon |
Length | 72 mm 75 mm 88 mm 92 mm 95 mm |
Width | 8 mm 10 mm 12 mm 16 mm |
Uniclass | |
CAWS | G20/725 Hammer-in fasteners G10/305 Proprietary anchors |
Specification data - Expansion anchors
Classification data | |
Certification | European Technical Assessment (ETA) with CE marking and a Declaration of Performance (DoP). |
Format | Through anchor. |
Material | Carbon steel. |
Finish | Zinc-plated to BS EN ISO 4042. |
Head arrangement | Hexagon nut and washer. |
Anchor length | 75 mm. 95 mm. 115 mm. 150 mm. |
Thread diameter | M8. |
Sustainability data
Material | Steel Stainless steel |
Product certifications
European Technical Approval (ETA)

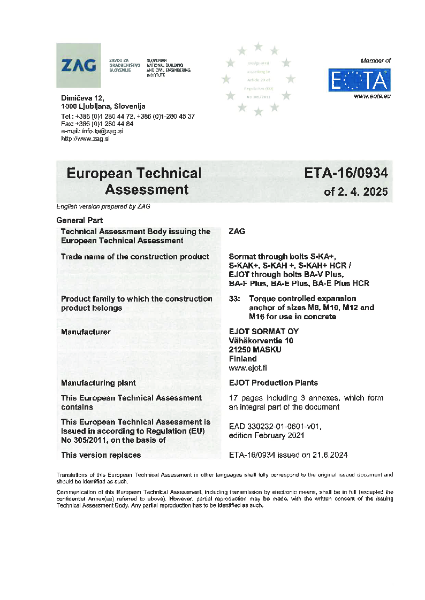

EJOT ETA 16/0934 Through Bolts BA Plus
Literature
Literature type

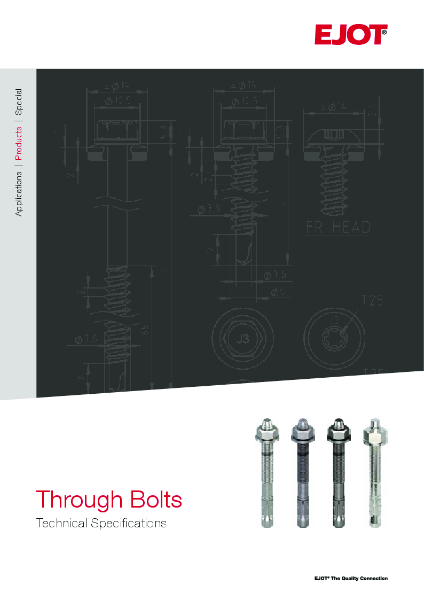

EJOT Through Bolts Technical Specifications

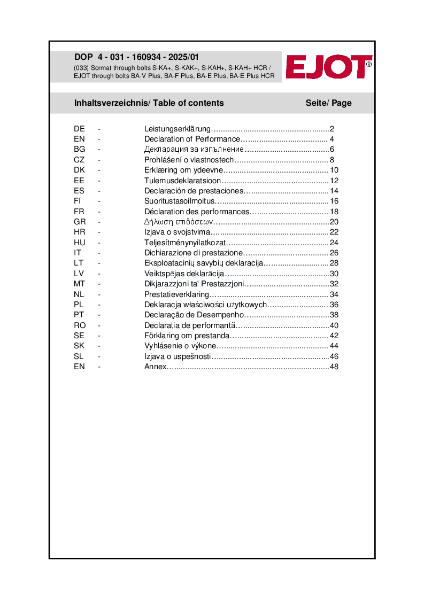

DoP Eta-16-0934 Through Bolts
