EJOT Iso-Bar ECO - Fastening Element
Verified by manufacturer today
EJOT Iso-Bar 200
EJOT Iso-Bar 200
Passive House Institute - Certificate
Certificate type
A thermally separated fastening element for fixing rope greening systems to facades with thermal insulation.
Application
For attaching green facades to walls with thermal insulation composite systems (ETICS)
Description

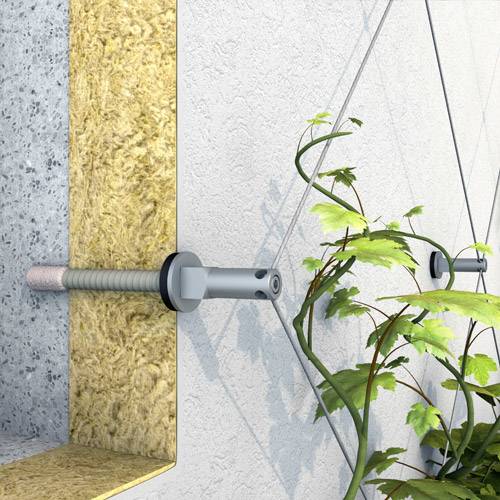

The EJOT Iso-Bar ECO is a thermally broken fastening element with a stainless steel adapter for flexible cable support and an additional sealing element. It is installed using injection mortar and is suitable for use in concrete, solid brick, and perforated brick.
Features and benefits:
- Flexible rope attachment through adjustable adapter
- Variable cable guides/grid geometries
- Low classified thermal bridge effect
- Subsequent, flexible installation
- Can be cut to length on site to suit site specific details
- Small number of length variants to suit insulation thicknesses up to 300 mm
- Permanent seal against external moisture
- Simple and safe installation thanks to innovative assembly tools
- Expansion pressure-free assembly
- Can also be used at temperatures down to -20° C in combination with Multifix USF Winter mortar
Components:
- EJOT Iso-Bar element 200 / 260 / 320 / 380
- 60mm dia. washer inc. 58mm dia. seal
- Adaptor including cylinder screw
- Assembly tool
- Perforated mesh sleeve (for use with perforated masonry/brickwork)
- Mixing nozzle extender
General information
Color | Grey Silver White |
Material | Glass Fibre |
Shape | Circle |
Length | 200 mm 260 mm 320 mm 380 mm |
Width | 22 mm |
Height | 22 mm |
Uniclass |
SKU Code | 8779200110 |
Specification data - Fibre-reinforced plastics dowels
Classification data | |
Material | Glass fibre composite. |
Dimensions | |
Diameter | 22 mm. |
Length | 200 mm. |
Integral accessories | Washer Ø 60 mm with seal Ø 58 mm, adapter including cylinder screw, assembly tool, perforated sleeve, mixing nozzle expansion. |
Accessories | Multifix USF mortar. Guidance for specification option:
USF Winter mortar. Guidance for specification option:
Iso-Bar ECO rope cross 90° - plastic. Iso-Bar ECO rope cross 90° - A4. Iso-Bar ECO rope cross adjustable - A4. Iso-Bar ECO climbing rung - plastic. Iso-Bar ECO round strand rope Ø 4 mm - A4. Iso-Bar ECO rope cap. |
Sustainability data
Material | Glass Fibre |
Product certifications

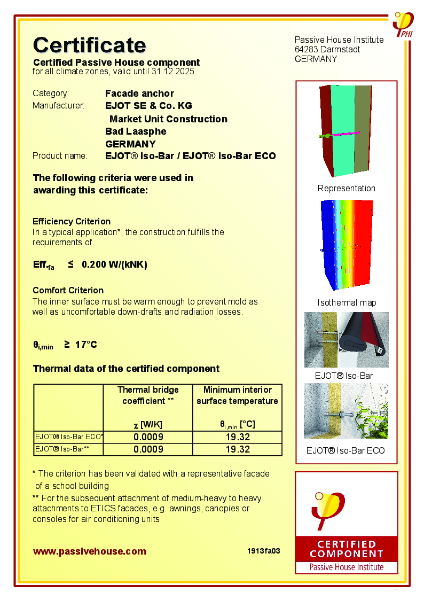

Passive House Institute - Certificate
Certified Passive House Component
Literature

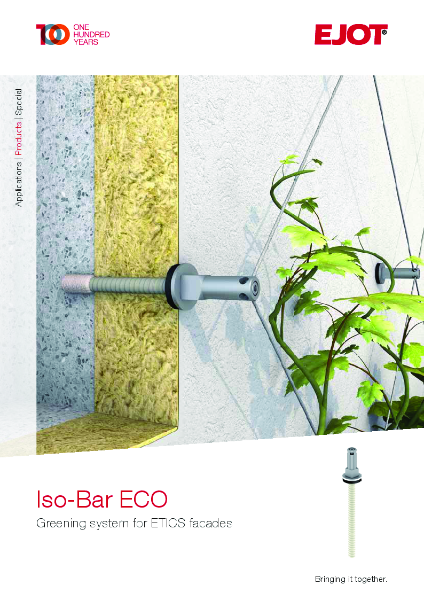

EJOT Iso-Bar ECO
