EJOT Concrete Screw - Concrete Screw

Name: EJOT Concrete Screw - Concrete Screw
Brand: EJOT
SKU: b5xbGixUnTc5WVRJSH1Qhx

Verified by manufacturer 3 days ago

JC2-KB Plus 8x55/5 Concrete Screw

EJOT

Product certifications:

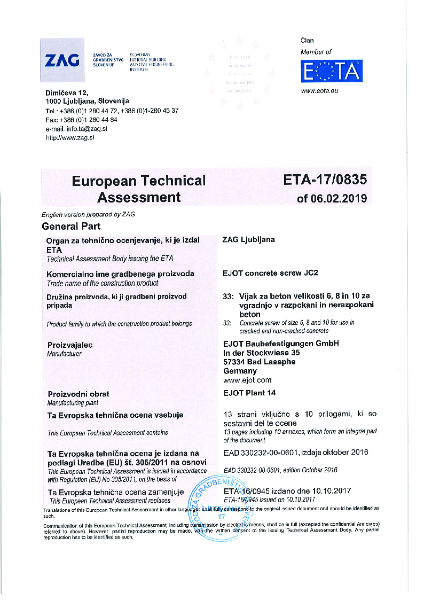

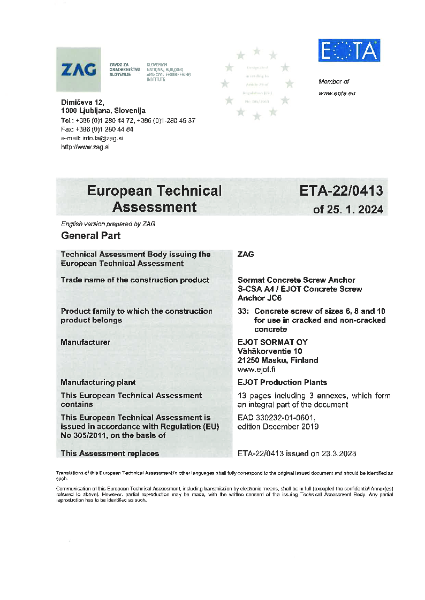

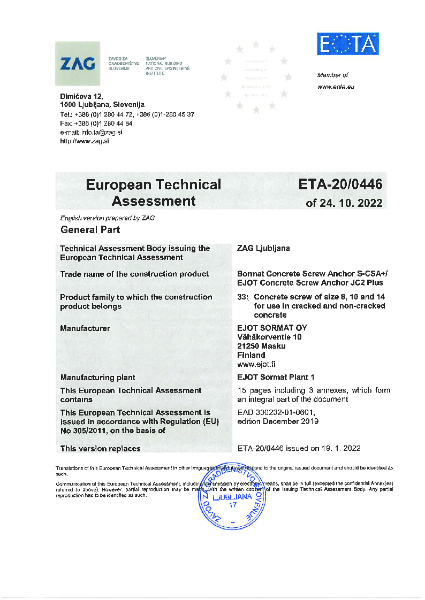

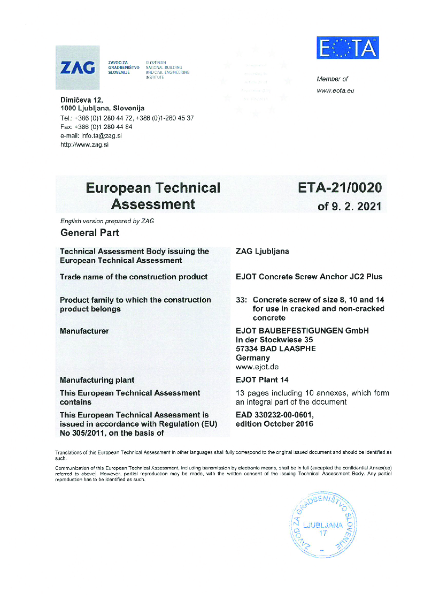

European Technical Approval (ETA)
Certificate type
European Technical Approval (ETA)
Certificate type
European Technical Approval (ETA)
Certificate type
European Technical Approval (ETA)
Certificate type

A range of concrete screws for indoor and outdoor use.

Jump to:

01977 687040 Website

Application

EJOT^® JC2-KB Plus

For dry indoor use.
ETA approved for cracked and non-cracked concrete.
Also suitable for clay, sandstone or lime brickwork.
Typical applications include façade scaffolds and temporary structures, industrial shelving, cable trays, railings, stairs and battens.

EJOT^® JC6-KB

Permanently wet indoor use.
Outdoor use, including industrial and maritime environments.
ETA approved for cracked and non-cracked concrete C20/25–C50/60.
Suitable for canopies, gates, shelving, cable trays, rails, stadium seating, impact protection, timber brackets and more.

Description

A range of concrete screws for indoor and outdoor use.

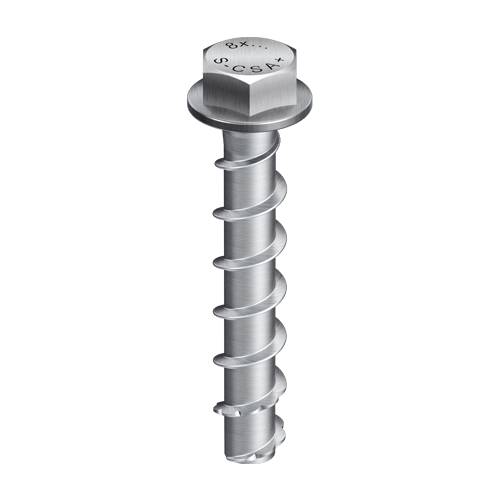

EJOT^® JC2-KB Plus is a galvanized, zinc-plated steel screw with a hexagon head with flange. And offered in two embedment depths. M6, M8, M10 and M14 options available. Lengths: M6: 35-140mm, M8: 55–140 mm, M10: 60–160mm, M14: 75-130mm

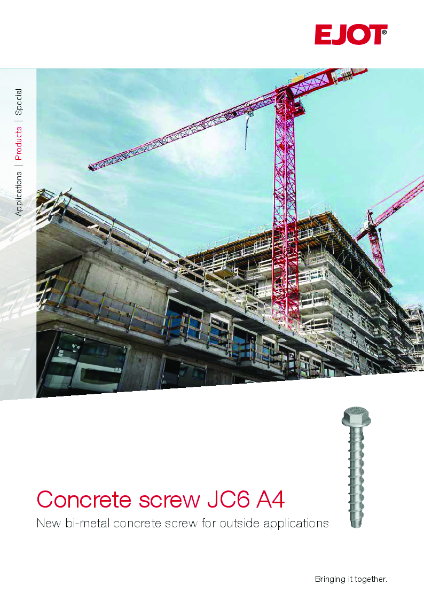

EJOT^® JC6-KB is an A4 stainless steel screw with a hardened steel tip and hexagon head with flange. M6, M8 and M10 options available. Lengths: M6: 50–80 mm, M8: 55–100 mm, M10: 90–120 mm

Features and benefits:

No expansion forces, therefore reduced edge distance and spacing.
Self-tapping screw anchor for push-through installation.
Fully removable.
R120 fire resistance.

General information

Color	Grey Silver
Finish	Galvanized Zinc plated
Material	Steel Stainless steel
Shape	Hexagon
Length	35 mm 45 mm 50 mm 55 mm 60 mm 70 mm 75 mm 80 mm 90 mm 100 mm 110 mm 120 mm 130 mm 140 mm 160 mm Show more
Width	6 mm 8 mm 10 mm 14 mm
