Effisus ProFlex FR - Fire Rated Weatherproofing Membrane

Name: Effisus ProFlex FR - Fire Rated Weatherproofing Membrane
Brand: EFFISUS
SKU: jRFo4BQQiEnM9Nzp4bQDjM

Verified by manufacturer 2 months ago

EFFISUS

Product certifications:

BREEAM - Certification
Certificate type
VOC Content test Certificate
Certificate type
LEED US
Certificate type
BBA Agrément Certificate
Certificate type

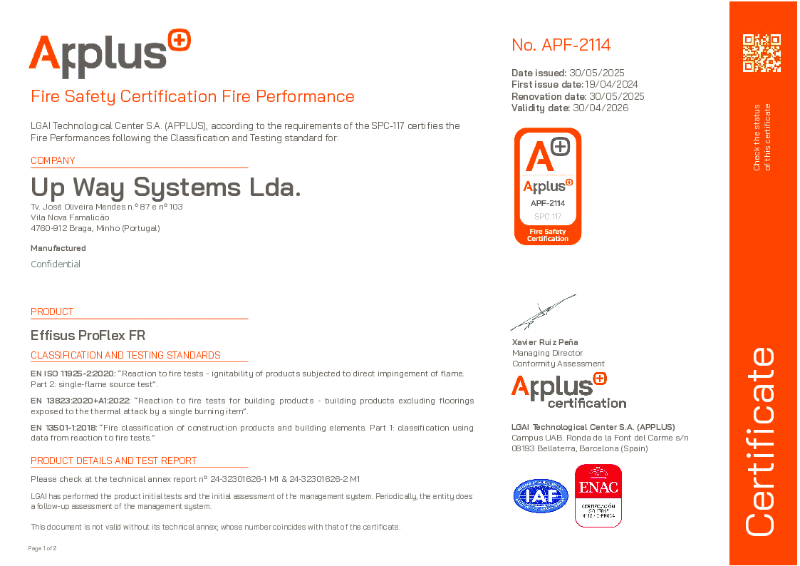

Fire Safety Certification
Certificate type

Interface Façade Solution

Jump to:

+44 (0) 20 39941008 Website

Application

Designed for sealing facade interfaces and construction joints on:

Typical curtain walls.
Rainscreen/ brick ventilated facades.
Precast.
Masonry.
Other applications.

Description

Effisus ProFlex FR is a watertight, airtight and vapour barrier, fire rated Class B-s3,d0 facade interface membrane with a high elongation capacity.

Developed for sealing facade interfaces and construction joints on typical curtain walls, on rainscreen/brick ventilated facades, precast, masonry and many other applications.

Features and benefits:

Watertight: Class W1 – Highest classification as per BS EN 1928.
Fire Performance: B-s3, d0 according to BS EN 13501–1 in conformity with The Building Regulations 2010 - Approved Document B (ABD) updated June 2022.
Excellent Mechanical Properties: 200% Elongation capacity according to BS EN 12311-1, allowing to accommodate building differential movements.
Exceptional Tensile and Tear strength as per BS EN12311-1 and BS EN 12310-1.
Sustainability - Environmentally friendly and recyclable.
Complete System: Wide range of fixing/ sealing accessories with all compatibilities ensured in accordance with UK end use applications.
Customization: Wide range of self-adhesive bands and bespoke layout.
Unlimited widths.

General information

Color	Beige
Finish	Coated
Material	Other
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	15 year

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	H11/110 Curtain walling H92/120 Rainscreen cladding H92/785 Breather membrane H21/20 Breather membrane H21/130 Breather membrane P10/320 Breather membrane P10/65 Breather membrane

SKU Code	490001
GTIN/EAN	5600342963008

Specification data - Plastics sheets

Classification data
Material	Manufacturer's standard.
Purpose	Waterproofing membrane.
Standard	To BS EN 13859-2.
Third-party certification	CE and UKCA marked to EN 13859-2.
Performance characteristics	-
Tensile strength (minimum)	Exceptional.
Tear resistance	Exceptional.
Elongation to break	200%.
Water vapour resistance (minimum)	W1.
Fire performance	To BS EN 13501–1, B-s3, d0.
Form	Manufacturer's standard.
Physical properties	-
Colour	Beige.
Weight (minimum)	Manufacturer's standard.
Dimensions	-
Thickness (minimum)	- Manufacturer guidance Consult manufacturer and insert requirements.
Width (minimum)	- Manufacturer guidance Consult manufacturer and insert requirements.
Accessories	- Manufacturer guidance Wide range of fixing/ sealing accessories available. Consult manufacturer for details and insert requirements, or omit.

Sustainability data

Contains Red List materials	No
Country of material origin	Portugal
Country of product manufacture	Portugal
Material	Other
Recyclability	Recyclable
Expected Life	Lifetime
