Effisus Ecofacade Pre-Fab Family
Verified by manufacturer 5 months ago
Effisus Ecofacade Pre-Fab Corners 1 mm
Effisus Ecofacade Pre-Fab Corners 1 mm
Certificate of Conformity
Certificate type
CE Marking
Certificate type
LEED US
Certificate type
EPDM Facade connection prefabricated weatherproofing solution.
Application
Designed for window frames, facade-to-window connections, and challenging facade perforations, this solutions deliver superior performance for seamless and reliable sealing, guaranteeing efficiency and long-term protection.
Description
Effisus Ecofacade Pre-Fab
Fully customized, pre-fabricated sealing system designed to meet the specific demands of each building project. Engineered to deliver high performance and long-term durability, it offers superior resistance to extreme temperatures and UV exposure, ensuring reliable protection and added value for facade weatherproofing.
Key Features & Benefits
- Certified Performance: Designed to comply with the most rigorous environmental and sustainability standards.
- Durability: 100% waterproof, UV resistant, and airtight, ensuring a robust and long-lasting solution.
- Versatility: Tailored to project-specific dimensions and configurations.
- Energy Efficiency: Enhances indoor air quality, extends the life of facade components, and minimizes the risk of condensation.
- Cost-Efficiency: Reduces material waste and installation time.
- Quality & Consistency: Minimizes human error, improves application speed, and ensures high-quality results.

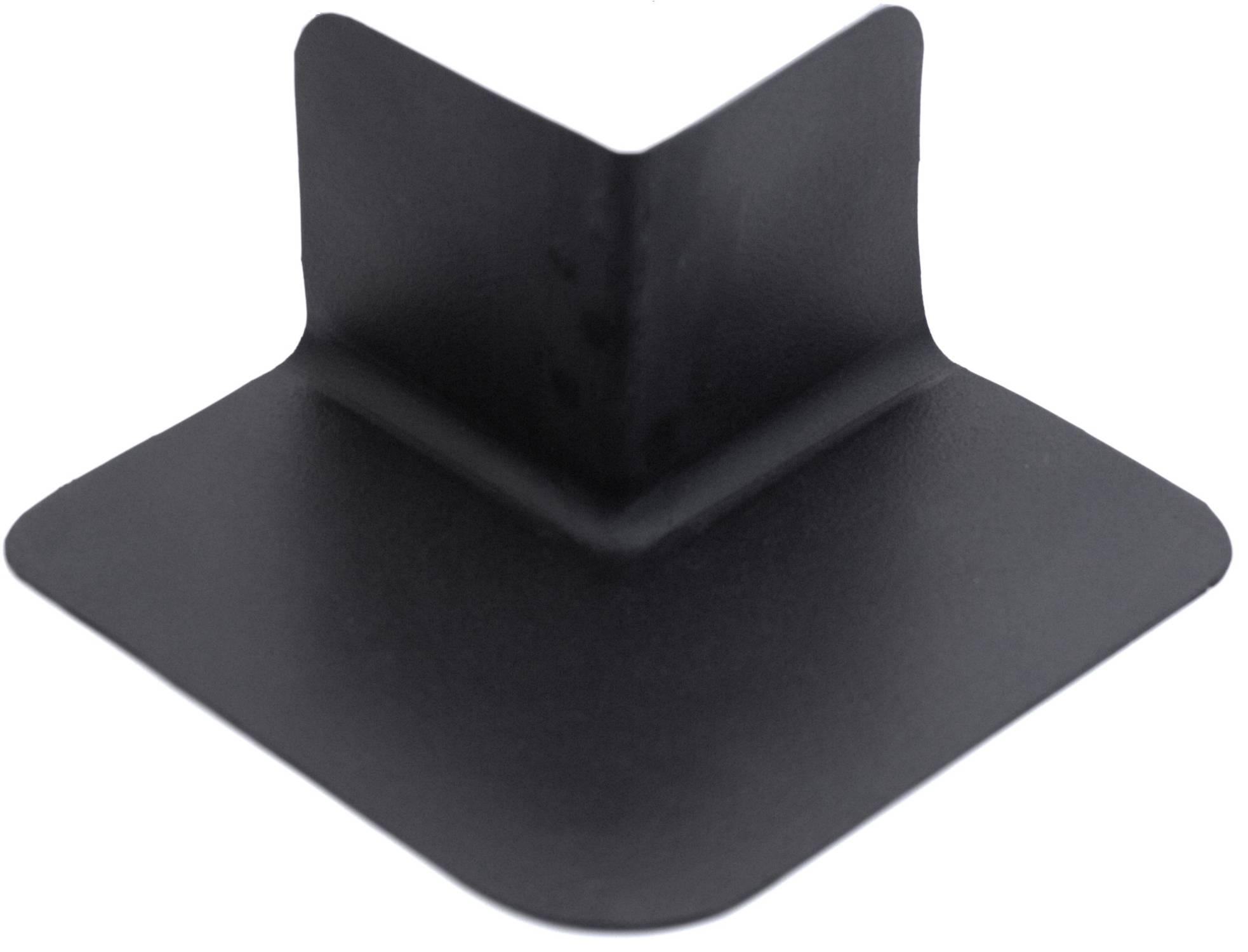

Effisus Ecofacade Pre-Fab Corners: Custom-made for efficient and precise sealing of window frame corners. These prefabricated corners drastically reduce installation time and increase sealing accuracy.
Effisus Ecofacade Pre-Fab Frames: Designed for fast and effective sealing between facades and window frames. Traditionally labor-intensive and wasteful, this task becomes seamless and sustainable with frames pre-molded to exact specifications, ensuring a long-lasting, clean, and error-free installation.

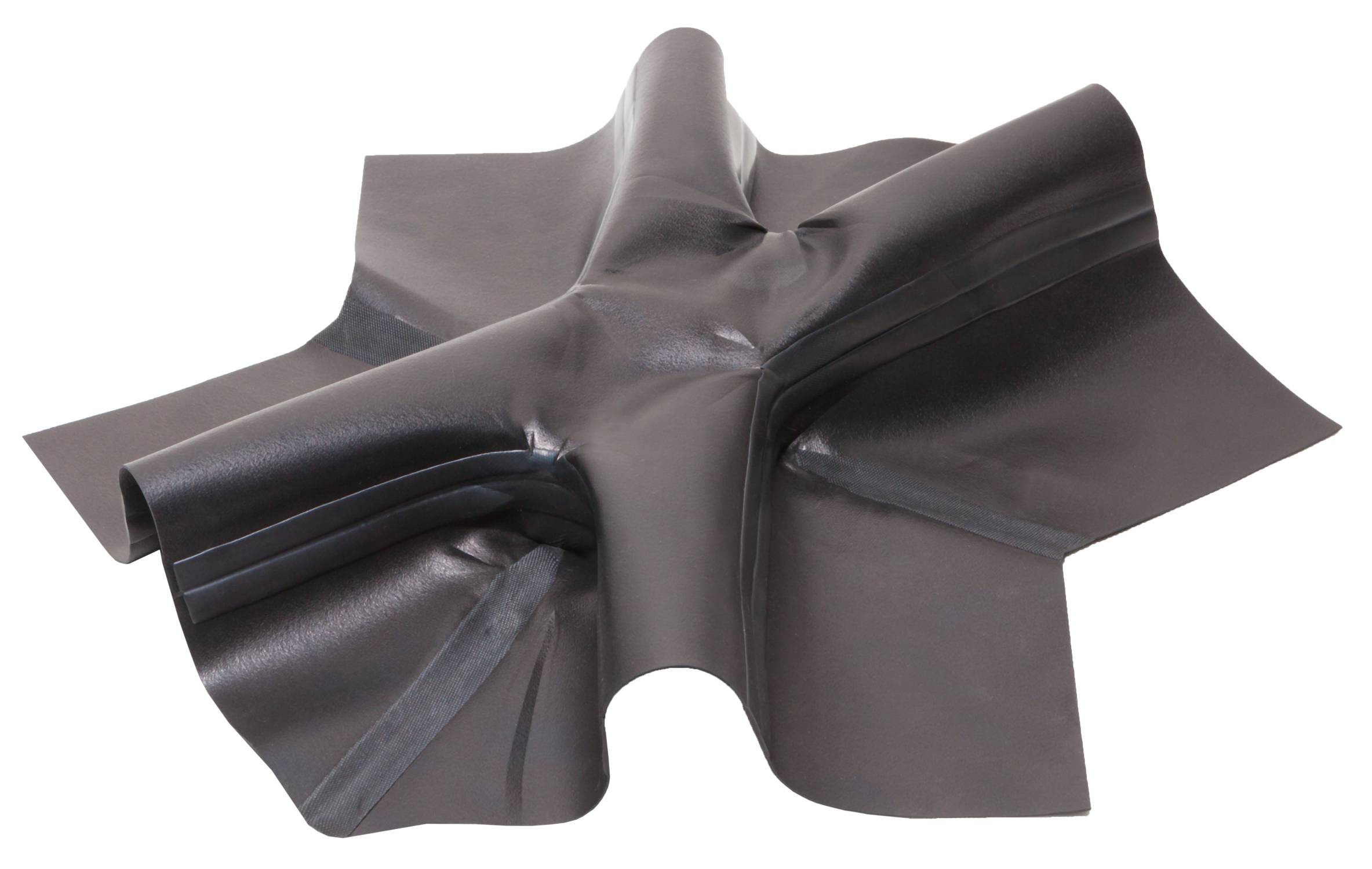

Effisus Pre-Fab TrueSeal: A 3D vulcanized solution engineered to seal complex penetrations and architectural facade details, such as those found in rainscreen cladding systems. This high-tech EPDM molded piece simplifies otherwise time-consuming tasks, increases reliability, and significantly reduces risks of leaks and installation errors.
Comprehensive solution for sustainable and efficient facade weatherproofing. By accelerating critical installation processes, minimizing waste, and extending system lifespan, the Effisus Ecofacade Pre-Fab Family is the smart choice for modern building envelopes.
General information
Color | Black |
Finish | Smooth |
Material | EPDM |
Shape | Other Manufacturer guidanceCustomizable dimensions and configurations. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | P21/92 Weatherstrip to windows P21/62 Weatherstrip to door head and jambs L10/10 Wood windows P21/960 Weatherstrip to windows P21/860 Door seals L10/210 Wood windows |
SKU Code | 132670 |
Specification data - Door and window weatherstrips and seals
Classification data | |
Third-party certification | Cahier des Charges by Socotec; LEED. |
Functions | Weather seals. |
Classification grades (minimum) | |
Category of use | Type W. Guidance for specification option: W1. |
Size | To suit windows. |
Materials | |
Seals | EPDM. |
Colour | Black. |
Execution | Installing weather-stripping or seals. |
Accessories | Not required. Effisus Bonding KF Adhesive. Guidance for specification option: Paste adhesive and sealant with exceptional bonding strength especially suitable for rough, uneven surfaces. With Effisus Bonding KF Adhesive, installation can be carried out at temperatures down to –10°C* and up to +35ºC, even on moist (absorbent) surfaces, allowing corrections on the membrane position. Effisus Bonding KFP Adhesive. Guidance for specification option: A paste adhesive and sealant that brings together a single adhesive with exceptional properties of adhesiveness, waterproofing and UV resistance, with suitable elongation in accordance with facade application. Effisus Bonding KF+P Adhesive. Guidance for specification option: Effisus Bonding KF+P Adhesive brings together a solvent-free innovative adhesive and sealant with exceptional properties of waterproofing and UV resistance, and suitable elongation. Effisus 2Bond GO Tape. Guidance for specification option: Double-sided adhesive butyl tape with excellent adhesiveness to the most common construction materials. It can be used for sealing operations between two surfaces or nail/screw penetrations, adhering perfectly to the Effisus Ecofacade System. |
Thickness | 1 mm. |
Resistance to water penetration | W1. |
TensileStrength | ≥ 350 N/50 mm. |
Elongation | 400±15%. |
Dimensional stability | ≤0.5%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Portugal |
Material | EPDM |
Product certifications

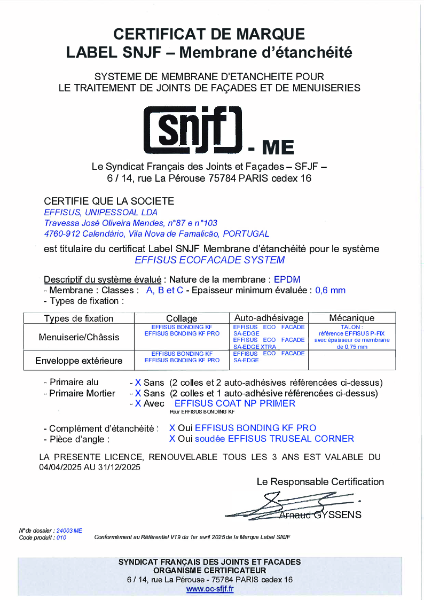

Certificate of Conformity
Effisus Ecofacade Family SNJF Certificate
CE Marking
Effisus Ecofacade System LEGL
LEED US
Effisus Ecofacade System LEED
Literature
Technical Data Sheet Effisus Ecofacade
Case studies
Lots Road Power Station - London
Mayfield Watford - London
Axis Madrid
Charlotte Street, London
Buckingham Green - London
Sways Paris
