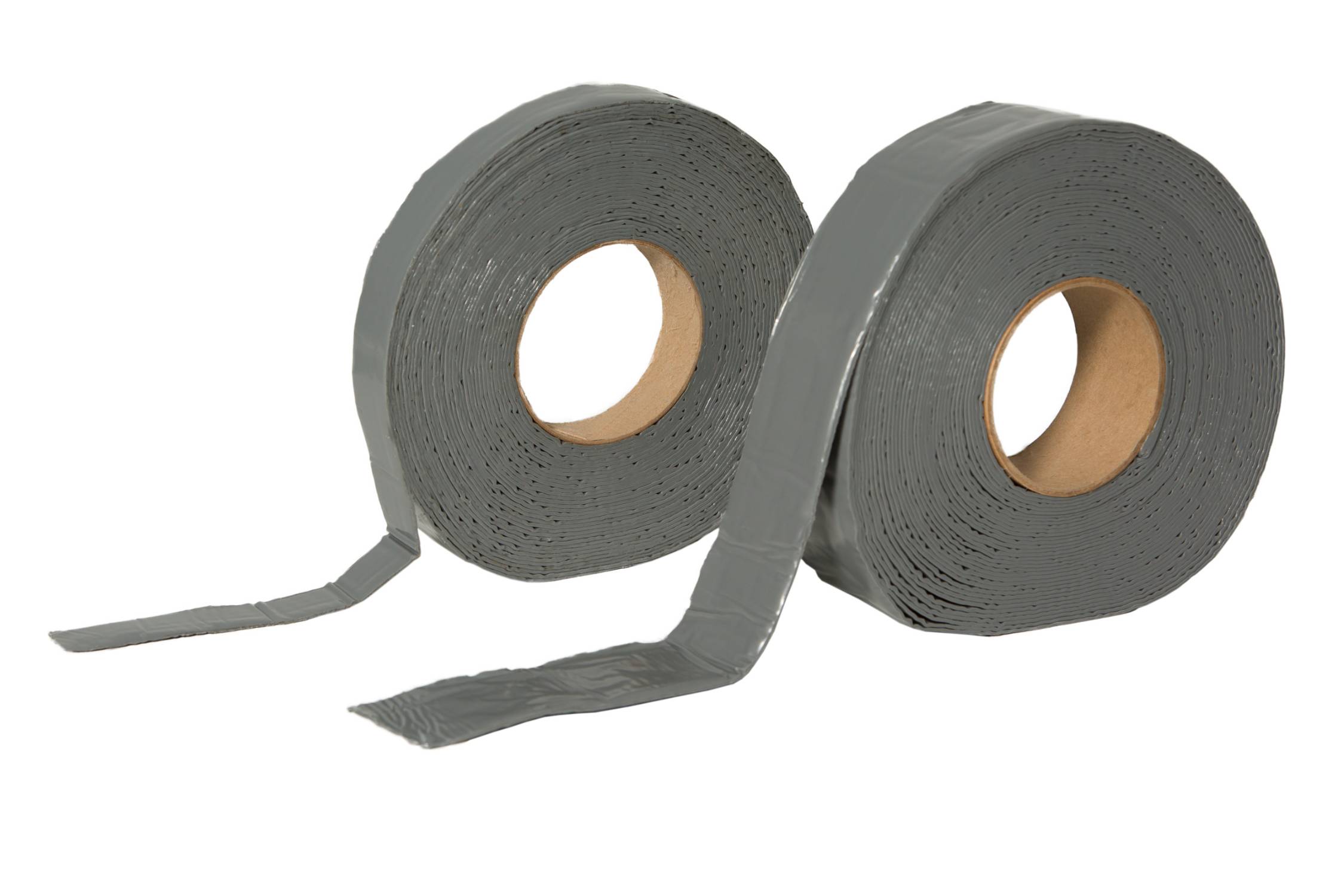

Effisus 2Bond DS Tape
Verified by manufacturer 6 months ago

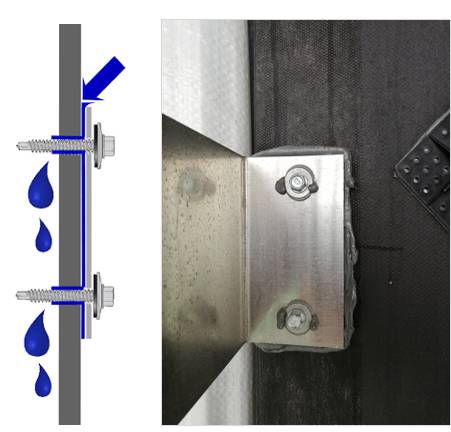

Double-sided adhesive/ sealant tape. Ideally to seal any nail/ screw membrane perforations. Class A2-s1, d0 when tested with Effisus Vapour FR membrane system and Effisus Breather FR membrane system.
Application
Suitable for use in a wide range of construction substrates including polycarbonate, glass, metals (steel, galvanized, zinc, aluminium, etc.), natural stone, concrete, masonry, plaster or ceramic, wall membranes (EPDM, polypropylene, polyethylene or similar).
Description
Adhesive tape solution for sealing between two surfaces of the same or different materials, and sealing any kind of nail/ screw penetration.
Based on an advanced technology with active adhesive sealants that ensure good adhesion to the most diverse materials.
It is a part of the Effisus Breather FR, Effisus Vapour FR System, Effisus Breather FR-B System and Effisus Ecofacade Envelope System.
Features and benefits:
- Robust: Waterproof, vapour-tight and permanently flexible from -56ºC up to +93ºC.
- Elastic: Accommodates differential movements.
- Universal: Compatible with wide range of substrates.
- Durable: High life expectancy.
- Flexible: Adapts to the needs of different construction end use applications.
- Lifespan superior to 20 years.
- Accessories not needed.
- Without solvents.
- It doesn’t release harmful gases, therefore ensuring the indoor air quality of the buildings.
- Extremely stable against the action of atmospheric agents.
General information
Color | Grey |
Material | Polymer Sealant Thermoplastic elastomer (TPE) |
Length | 15250 mm |
Width | Bespoke |
Height | 1.54 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | P10/65 Breather membrane H92/120 Rainscreen cladding H11/110 Curtain walling H21/20 Breather membrane P10/320 Breather membrane H21/130 Breather membrane H92/780 Air and vapour control layer H92/785 Breather membrane |
Specification data - Butyl rubber adhesive tapes
Bond | Double-sided. |
Size | Manufacturer guidanceUpon client request is possible to deliver widths multiple of 5 mm up to 1219 mm. |
Colour | Grey. |
Thickness: | 1.54 mm |
Shear resistance of joints (to EN 12317-2) | 81-108 N/50 mm. |
Elongation at break | 20-50 mm. |
Resistance to water penetration | W1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | Portugal |
Literature
Technical Data Sheet Effisus 2Bond DS
Case studies
Creek Harbour - Dubai
London Wall Place
