Edilians Phalempin Tiles - Clay roof tile
Verified by manufacturer 3 months ago
Traditional clay plain tile with a distinct anti-capillary channel.
Description
A traditional clay plain tile produced at Edilians’ Phalempin factory in northern France. The tile is available in a unique range of mellow natural colours and is designed to add distinction and character to pitched roofing and tile hanging. The tile has a distinct anti-capillary channel to ensure enhanced performance even with pitches as low as 30°.
Dry fixing is recommended at ridges and hips. A wide range of matching accessories is available to complete a traditional roof design, including ventilating tiles.
Features and benefits:
- Distinctive natural colour range.
- Suitable for roof and vertical tiling.
- Matching Ornamental Club tiles.
- Range of traditional fittings.
- Complete dry roof solution available.
- Natural product - silicone free.
- 59 tiles per m².
- Minimum roof pitch of 30°.
- Compatibility with Edilians PVt modules.
- Comprehensive 30 year guarantee (subject to terms and conditions).
- A+ Rating in the Building Research Establishment’s (BRE) Green Guide to Specification.
- BS 6399-2:1997. BS 5534:2003 can be provided on request.
General information
Color | Red Other |
Finish | Sanded |
Material | Clay |
Shape | Rectangle |
Length | 270 mm |
Width | 170 mm |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | H60/10 Vertical tiling H60/105 Clay roof tiling H60/110 Clay roof tiling with counterbattens H60/145 Clay vertical tiling H60/3 Roof tiling H60/5 Roof tiling with counterbattens |
Specification data - Clay plain tiles
Standard | BS EN 1304. |
Colour | Amber (007).Millennium (132).Rustic Red (006).Val de Seine (104).Vintage Code (145).Volcano (122).Weathered (110). |
Size | 270 x 170 mm. |
Width | 170 mm. Manufacturer guidance(Effective width) |
Capacity | 60 per m². Manufacturer guidance(Covering capacity) |
Weight | 1.1 kg per tile; 65 kg/m². |
Roof pitch | 30°. Manufacturer guidance(Minimum) |
Battens | 10 linear metres. Manufacturer guidance(Batten coverage m²) |
Staples/nails | 38/40 x 2.65 mm. Manufacturer guidance(Nail size) |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Material | Clay |
Literature

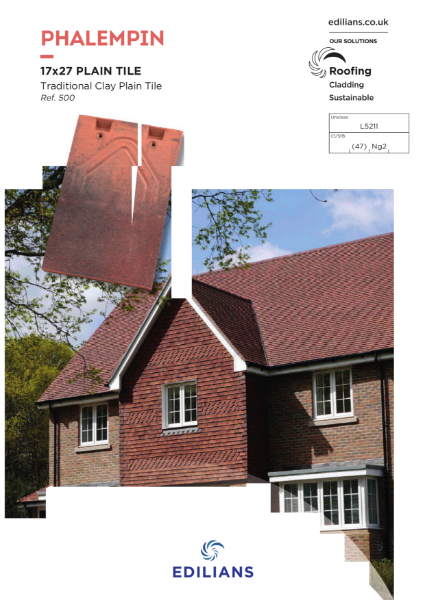

Edilians Phalempin Clay Plain Tile
