EDENKERB® - Rain Garden Kerb

Name: EDENKERB® - Rain Garden Kerb
Brand: Marshalls plc
SKU: ua31vTGhsB4Pu4ZKZzkddp

Verified by manufacturer 3 days ago

Marshalls plc

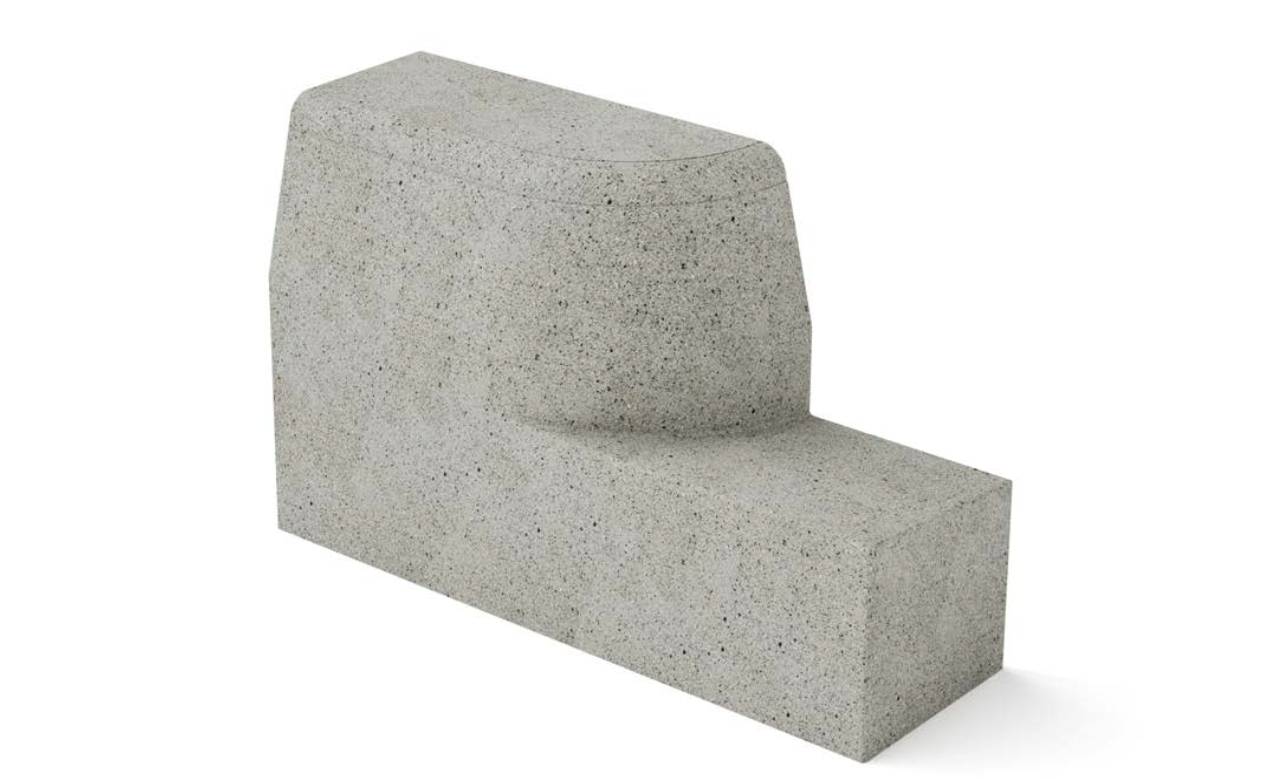

Precast concrete rain garden kerb.

Jump to:

+44 (0)330 0574472 Website

Application

Suitable for use as a rain garden kerb system.

Description

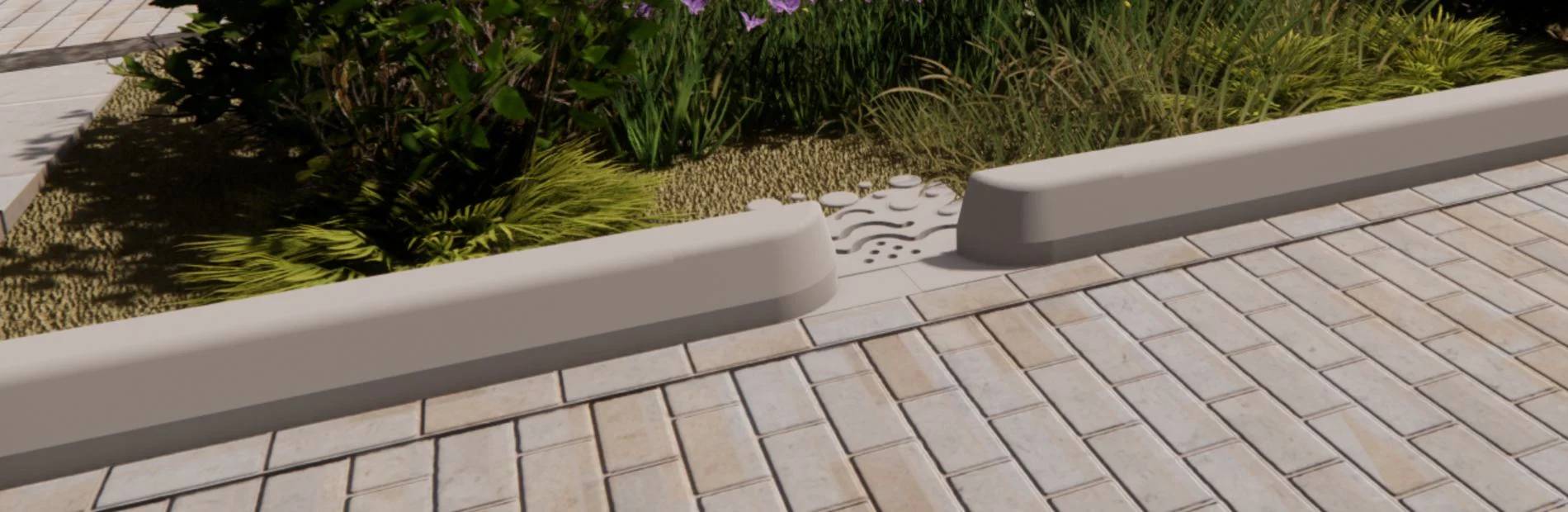

EDENKERB™ is a complete solution for integrating rain garden kerbs into outdoor designs. Rain gardens are a Sustainable Drainage System (SuDS) which ensures effective stormwater management while contributing to increased biodiversity.

Pre-cut left and right-hand kerbs enable detailing of the inlet feature of the rain garden. The kerb’s integrated gradient promotes water entry from street level. Used with the complementary diffuser flag, the flow of water is slowed into the garden facilitating effective absorption.

Features and benefits:

Available in two profiles, Standard Half Battered and Standard BN, and two heights.
Solid unit with pre-cut inlet.
Time and cost saving.
Sustainable SuDS solution supporting current and upcoming legislation.
Combines with Marshall's kerb and paving ranges.

General information

Color	Grey
Material	Concrete
Shape	Rectangle
Length	400 mm
Width	125 mm
Height	255 mm 305 mm

Uniclass	Pr_25_93_45_18 Concrete kerbsPrimary
CAWS	Q10/110 Proprietary precast concrete Q10/10 Precast concrete

SKU Code	RK9010050, RK9010100, RK9010150, RK9010200, RK9010250, RK9010600, RK9010650, RK9010700, RK9010750

Specification data - Concrete kerbs

Classification data
Standard	To BS EN 1340.
Physical properties	-
Colour	Natural.
Finish	As cast.
Dimensions	125 x 255 x 400 mm. 125 x 305 x 400 mm.
Weathering resistance	≤1.0 kg/m² as a mean with no individual value >1.5 kg/m² (freeze thaw durability).
Abrasion resistance	≤23mm (Wide Wheel Abrasion Test).
Bending strength	Characteristic bending strength of 3.5 MPa with no individual result less than 2.8 MPa.
Unpolished slip resistance value (USRV) (minimum)	PTV to BS EN 1340, above 58. Guidance for specification option: Mean polished skid resistance value (PSRV) : > 67.
Special shapes	EDENKERB Standard Half Battered. EDENKERB Standard BN.
Integral accessories	EDENKERB Diffuser Flag Standard. Guidance for specification option: 450 x 450 x 60 mm solid concrete unit with smooth surface and diffusing texture.
