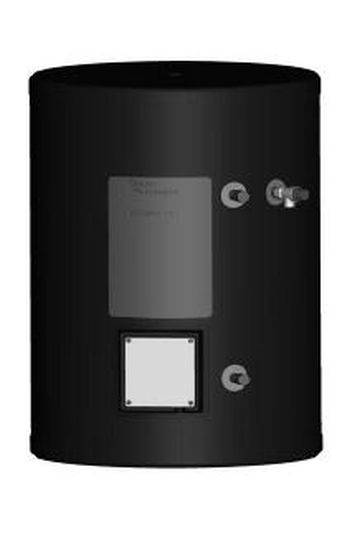

ECSd Direct Cylinder

Description

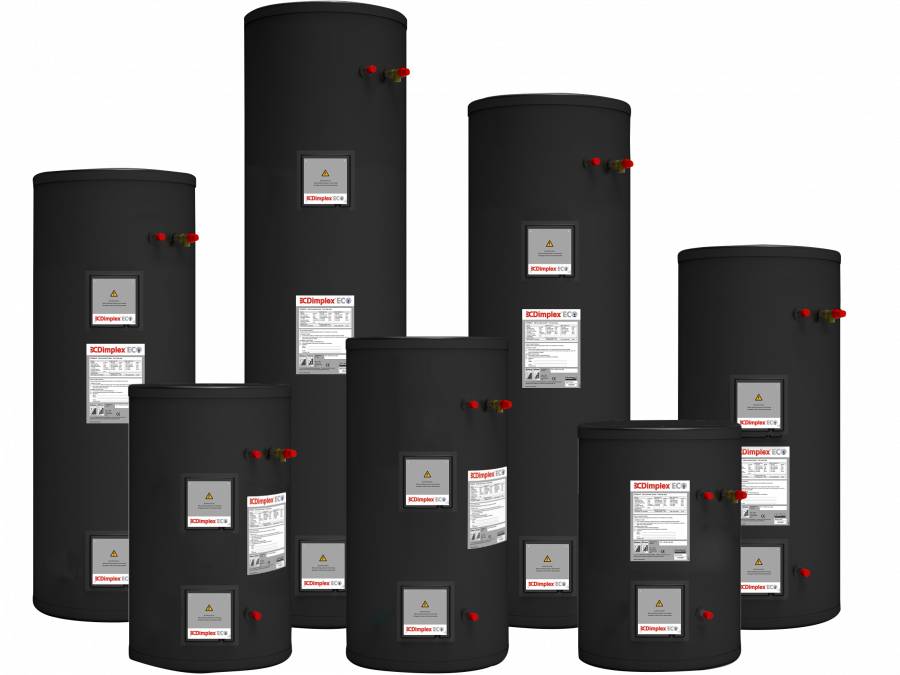

A range of unvented standard direct cylinders.

Features and benefits:

  • Duplex stainless steel cylinder.
  • 60 mm PU foam insulation for low standing heat losses.
  • Over 60% in volume from recycled material.
  • Surface mounted sensor devices for compatibility and ease of maintenance.
  • PU-insulation with GWP: < 1 and ODP: 0.
  • KIWA approved (water and building regulations).

Guarantee:

  • Inner cylinder: 25 years.
  • Immersion heaters: Two years (excluding the effects of lime scale).
  • Other components (excluding expansion vessel membrane) two years.

General information

Color

Black

Features

Tough, attractive, easy to clean outer casing made from 100% recycled materials, immersion for sterilisation and back up heating, mains pressure hot water, fast filling baths, powerful invigorating showers, simultaneous supply of water to all bathrooms, no cold water storage tank required, freeing up valuable living space, long life low maintenance hot water supply,

Material

Duplex stainless steel inner cylinder LDX2101, HIPS/ ABS (from 100% recycled materials) outer casing

Shape

Cylindrical

Size

810 x 580 x 580 mm

WarrantyDescription

Cylinder vessel (25 years), other components (2 years)

Uniclass 2015

Pr_60_50_20_21 Direct hot water storage cylindersPrimary

CAWS

S90/37 Direct hot water storage cylinders

S90/370 Direct hot water storage cylinders

Specification data - Direct hot water storage cylinders

Product Reference

ECS Direct

Type

ECSd100-580

Capacity: 100 L. Primary hot water capacity: 83 L. Height: 810 mm.

ECSd125-580

Capacity: 125 L. Primary hot water capacity: 96 L. Height: 960 mm.

ECSd150-580

Capacity: 150 L. Primary hot water capacity: 124 L. Height: 1130 mm.

ECSd175-580

Capacity: 175 L. Primary hot water capacity: 149 L. Height: 1280 mm.

ECSd210-580

Capacity: 210 L. Primary hot water capacity: 182 L. Height: 1504 mm.

ECSd250-580

Capacity: 250 L. Primary hot water capacity: 232 L. Height: 1780 mm.

ECSd300-580

Capacity: 300 L. Primary hot water capacity: 260 L. Height: 2080 mm.

Standard product features

Size:

  • Diameter: 580 mm.
  • Coil return: 190 mm.
  • Thermostat: 430 mm.
  • Immersion: 208 mm.
  • Coil surface area: 0.5 m² for ECSi100–150, and 0.8 m² for ESCi175–300.

Material:

  • Inner cylinder: Duplex stainless steel.
  • Outer casing: Black HIPS/ ABS (from recycled materials).
  • Inlet/ outlet: Stainless steel.
  • Coils: Corrugated stainless steel.
  • Insulation: PU foam.

Operating conditions (maximum):

  • Potable water temperature: 70°C.
  • Heating water temperature: 90°C.
  • Operating pressure: 3 bar.
  • Number of immersion elements: Two, except ECSd100-580 which has one.

Cold water supply:

  • Minimum dynamic pressure: 1.5 bar.
  • Maximum pressure: 12 bar.
  • Minimum flow rate: 15 L/min.

Connections:

  • Cold water inlet: 22 mm stainless steel.
  • Hot water outlet: 22 mm stainless steel.
  • Coil flow/ return: 22/ 28 mm stainless steel.
  • Tundish: 15/ 22 mm.
  • Sensor: Surface mounted.
  • T&P valve: ½" F BSP.
  • Immersion heater: 1¾" F BSP.

Safety components:

  • Pressure reducing valve and strainer: 3 bar.
  • Expansion relief valve: 6 bar.
  • T&P valve: 7 bar/ 90°C.
  • Factory pressure tests: 12 bar.
  • Expansion: External (12–24 L, model dependant).

Primary re-heat time in accordance with EN 12897/ Heat loss in 24 hours:

  • ECSd100-580: 22 minutes/ 0.9 kW.
  • ECSd125-580: 25 minutes/ 0.95 kW.
  • ECSd150-580: 33 minutes/ 1.10 kW.
  • ECSd175-580: 27 minutes/ 1.12 kW.
  • ECSd210-580: 31 minutes/ 1.41 kW.
  • ECSd250-580: 40 minutes/ 1.51 kW.
  • ECSd300-580: 49 minutes/ 1.96 kW.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library

Third party certifications

  • KIWA
