ECS Heat Pump

Description

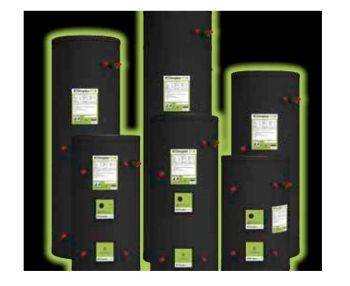

A range of unvented stainless steel cylinders for heat pumps. The cylinders are designed to operate seamlessly with heat pumps to provide an efficient way of supplying domestic hot water. Employing a large surface area heat exchanger, they maximize the transfer of heat generated from renewable energy to the stored water, optimizing heat pump efficiency and reducing running costs.

Suitable for use with a wide range of heat pumps and compatible with the range of Dimplex heat pumps, the cylinders is available in capacities from 125–300 L to serve most domestic hot water demands.

Features and benefits:

  • Optimally sized, high surface area heat exchangers for heat pump operation.
  • Tough, easy to clean outer casing – manufactured from recycled materials.
  • Immersion for sterilisation and back up heating.
  • 60 mm of CFC-free foam injected insulation for excellent heat retention – minimizing heat loss and energy consumption.

General information

Size

Diameter: 580 mm

Immersion: 208 mm

Heat pump return: 190 mm

Uniclass 2015

Pr_60_50_20_42 Indirectly heated unvented hot water storage cylindersPrimary

CAWS

S90/410 Indirectly heated unvented hot water storage

S90/410 Indirectly heated unvented hot water storage

Specification data - Indirectly heated unvented hot water storage cylinders

Product Reference

ECS Heat Pump

Type

ECS150HP-580

Capacity: 150 L. Primary hot water capacity: 120 L. Height: 1130 mm.

ECS175HP-580

Capacity: 175 L. Primary hot water capacity: 142 L. Height: 1280 mm.

ECS210HP-580

Capacity: 210 L. Primary hot water capacity: 180 L. Height: 1505 mm. Secondary return: 967 mm.

ECS250HP-580

Capacity: 250 L. Primary hot water capacity: 238 L. Height: 1780 mm. Secondary return: 1105 mm.

ECS300HP-580

Capacity: 300 L. Primary hot water capacity: 267 L. Height: 2080 mm. Secondary return: 1255 mm.

Standard product features

Size:

  • Diameter: 580 mm.
  • Immersion: 208 mm.
  • Heat pump return: 190 mm.

- Heat pump flow:

  • ECS150HP-580 and ECS175HP-580: 845 mm.
  • ECS210HP-580 and ECS250HP-580: 895 mm.
  • ECS300HP-580: 930 mm.

- Thermostat:

  • ECS150HP-580: 545 mm.
  • ECS175HP-580: 620 mm.
  • ECS210HP-580: 732 mm.
  • ECS250HP-580: 870 mm.
  • ECS300HP-580: 1020 mm.

Heat pump coil heatable volume:

  • ECS150HP-580: 141.5 L.
  • ECS175HP-580: 173.5 L.
  • ECS210HP-580: 210 L.
  • ECS250HP-580: 250 L.
  • ECS300HP-580: 300 L.

Number of immersion elements:

One.

Expansion vessel:

  • ECS175HP-580 and ECS210HP-580: 19 L.
  • ECS250HP-580 and ECS300HP-580: 24 L.

Heat pump coil size in accordance with EN 12897:

  • ECS150HP-580: 51 kW.
  • ECS175HP-580: 43.3 kW.
  • ECS210HP-580 and ECS250HP-580: 47 kW.
  • ECS300HP-580: 43 kW.

Heat pump coil surface area:

  • ECS150HP-580 and ECS175HP-580: 2.8 m².
  • ECS210HP-580 and ECS250HP-580: 3.0 m².
  • ECS300HP-580: 3.2 m².

Primary re-heat time in accordance with EN 12897/ Heat loss in 24 hours:

  • ECS150HP-580: 7 minutes/ 1.10 kW.
  • ECS175HP-580: 11 minutes/ 1.12 kW.
  • ECS210HP-580: 12 minutes/ 1.41 kW.
  • ECS250HP-580: 17 minutes/ 1.51 kW.
  • ECS300HP-580: 20 minutes/ 1.96 kW.
