DURASTEEL®
Verified by manufacturer 2 months ago
DURASTEEL® - 2500 x 1200 x 9.5 mm
DURASTEEL® - 2500 x 1200 x 9.5 mm

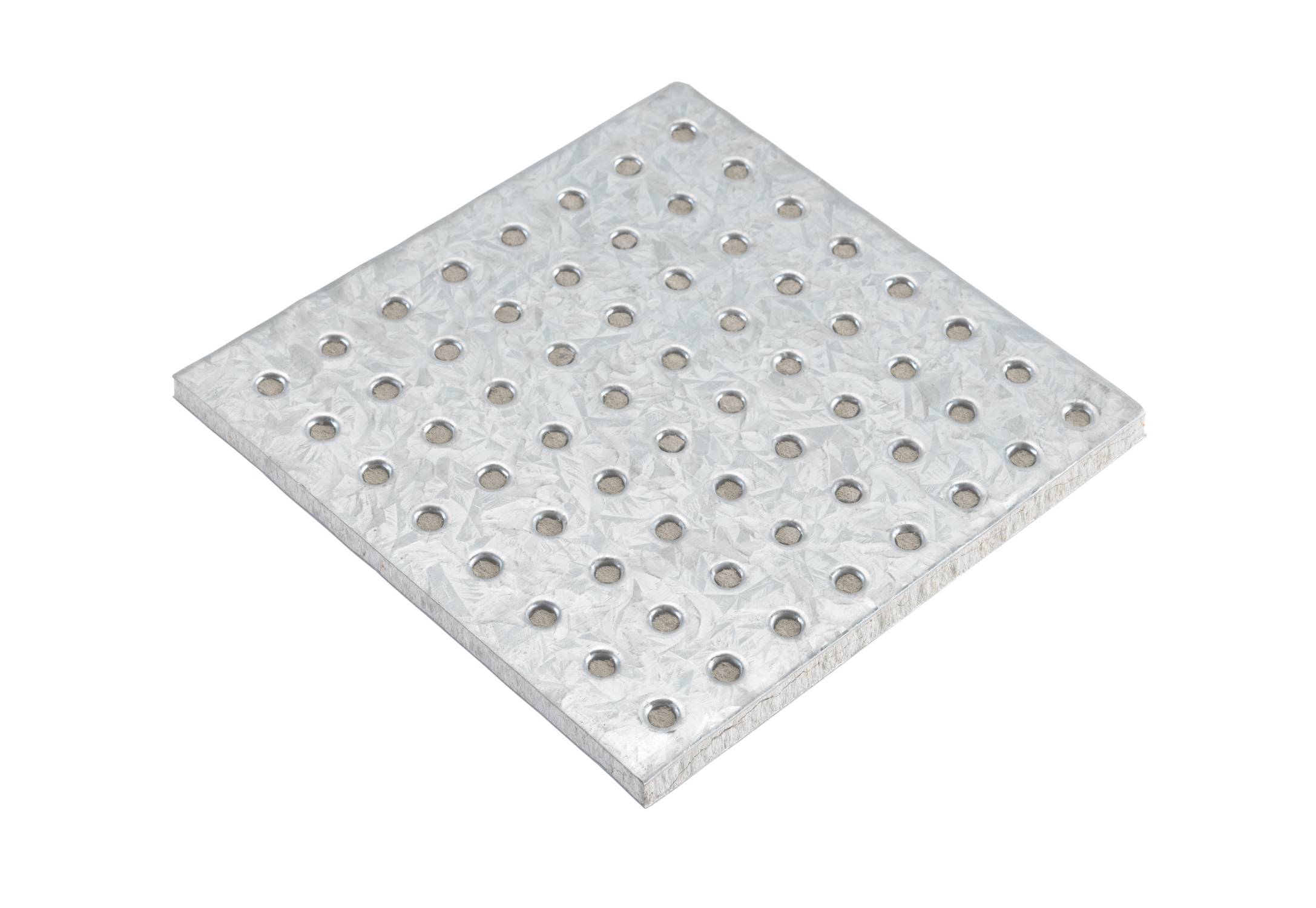

A composite board manufactured with a fibre reinforced cement core, with outer facings of 0.5 mm perforated galvanized steel mechanically bonded to each surface of the core.
Application
Designed for fire resistance and impact resistance in public and service corridors, warehousing, industrial buildings, mass transit systems, manufacturing facilities and other areas subject to abnormally rough use. Also designed for blast resistance to off-shore facilities, petro-chemical industrial facilities, gas processing plants and other areas subject to projectile or explosive risk.
Description
A composite board manufactured with a fibre reinforced cement core, with outer facings of 0.5 mm perforated galvanized steel mechanically bonded to each surface of the core. Other steel finishes such as stainless steel are also available for use where greater resistance to corrosion is required.
DURASTEEL® systems combine lightness, strength, impact resistance and durability with exceptional fire resistance. These systems remain resistant to firefighter hoses leaving the board capable of performing their function should fire services be required to withdraw before a fire is extinguished.
DURASTEEL® systems have been used successfully for many years, including rail and metro projects, military facilities and in commercial, pharmaceutical and petrochemical plants.
Features and benefits:
- 60–240 minutes' fire protection.
- Hydrocarbon tested.
- High impact resistant.
- Blast resistant.
- Moisture resistant.
- Fit and forget system.
- 40+ year service life.
- Fast installation.
- Can withstand prolonged cellulosic, hydrocarbon or jet fire and hose-streams from firefighting.
- The steel laminated boards can be left untreated in galvanized finish, or decorated with water or oil-based paints.
General information
Finish | Galvanized Other Guidance for specification option: Stainless steel Manufacturer guidanceDependent on Colour specified. |
Material | Cementitious Guidance for specification option: A composite panel of fibre-reinforced cement with mechanically bonded punched steel sheets on both surfaces. Steel |
Shape | Rectangle |
Length | 2500 mm 2000 mm |
Width | 1200 mm |
Height | 9.5 mm |
Warranty description | Guidance for specification option: All elements are tested as a combined system to ensure compatibility, with one source of warranty. |
Uniclass | |
CAWS | K11/60 Board K11/795 Wall lining on metal framing K11/885 Fire protection board K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K40/270 Boards |
Specification data - Carbon steel-faced plasterboard panels
Declaration of conformity | To BS 476-22, maximum 240 minutes, To BS 476-7, Class 1.Guidance for specification option: In accordance with Building Regulations Approved Document B, Class 0. |
Construction | As a self-supporting membrane.As a suspended ceiling system. |
Edges | Punched steel sheets. |
Finish as delivered | Galvanized steel.Paint.Stainless steel.Manufacturer guidanceDependent on colour specified. |
Colour | Galvanized steel.Stainless steel. |
Width | 1200 mm. |
Height | 2500 mm. |
Thickness | 9.5 mm. |
Blast resistance | Not required. Required. Guidance for specification option: Promat ‘Fireblast’ software produces rapid structural calculations for blast resistance up to 4 bar, which can then be complemented by the required level of fire protection. Consult manufacturer for further information. |
Weight | 21.0 kg/m². |
Composition | A composite panel of fibre-reinforced cement with mechanically bonded punched steel sheets on both surfaces. |
Dimensions | 2500 x 1200 x 9.5 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Manufacturer guidanceNot recyclable. |
