Robust fence system.

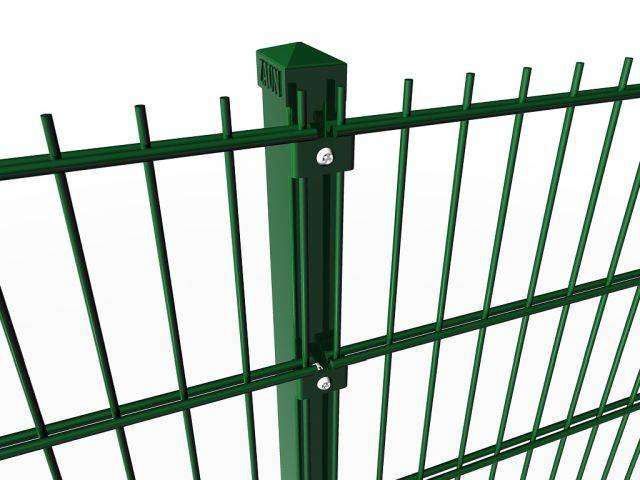

Zaun’s Duo6L Clamp twin wire perimeter fencing is a more economical version our standard Duo6 fencing system, designed at 3 m centres. It combines a perfectly engineered robust design with a low visual impact that will blend into any situation.
Manufactured from dual horizontal 6 mm wires sandwiching a single 5 mm vertical wire, producing a 50 x 200 mm mesh pattern that is not only strong and vandal resistance but also offers the best value.
Each panel is fixed with either a full length clamp bar or bracket system.
Features and benefits:
Applications:
Finish | Galvanized and polyester powder coated |
Uniclass 2015 | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product Reference | Duo6L ClampDuo6L Zaunfix |
Height | 0.630–6.0 m, insert requirements. |
Fixing | Bolt downIn groundWall |
Gates | - |
Pedestrian | Not requiredRequiredSingle leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. |
Vehicular | Not requiredRequiredDouble leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. |
Safety capping | Not requiredRequired |
Projection | MinimalStandard |
Standard product features | Finish: Galvanized and polyester powder coated. Mesh: Duo6 mesh comprising 50 x 200 mm mesh with dual 6 mm horizontal wires at 200 mm centres and single 5 mm vertical wires at 50 mm centres. Posts: Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 3025 mm centres. Post to panel fixing: - Clamp: Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar. - Zaunfix: Panels fixed to posts with ZaunFix clip and bolt fixings at 400 mm centres. Gates: Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts. |
