Sports fence system.
Zaun’s Duo6 Sports Spectator Rails are specifically designed to improve safety for both players and spectators. They are manufactured to the highest quality from strong tubular section and supplied with the Duo6 Sports mesh infill – making them lightweight, robust and attractive. The mesh infill is produced using twin wire 6 mm horizontal wires and uses EPDM rubber inserts to insulate the panels from the noise from impact during play, while stylish fixings hold the horizontal rails.
They can be designed with any number of gates of any size into the pitch perimeter to allow maintenance equipment unfettered access to the pitch. The Football Association has made spectator rails a requirement for many Non-League clubs, but Zaun’s Duo6 Sports Spectator Railings are also suitable for areas such as skate parks, where spectators on the playing surface would pose a safety hazard.
Features and benefits:
Galvanized and polyester powder coated
Q40/125 Open mesh steel panel general purpose fencing
Q40/27 Open mesh steel panel general purpose fencing
Q40/30 Proprietary fencing
Q40/430 Proprietary fencing
Duo6 Sports Spectator Rail
1.0–1.2 m, insert requirements.
Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.
Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.
Standard product features
Galvanized and polyester powder coated.
Duo6 mesh comprising 50 x 200 mm mesh with single 5 mm vertical wires at 50 mm centres and dual 6 mm horizontal wires at 200 mm centres.
60 x 60 mm rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres.
Post to panel fixing:

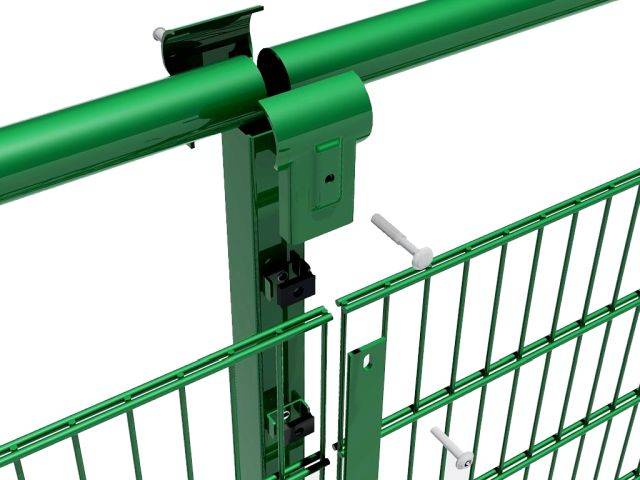

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 200 mm centres with EPDM inserts. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
