Application

  • Civic and public sector.
  • Sport and leisure.
  • Schools and education.

Description

Zaun’s Duo6 Sports Lite is another development from the popular Duo range, offering the best economic solution by using fewer materials in the construction.

It offers a lighter weight, lower cost alternative to Duo6 Sports fencing. The Lite version uses the same rubber inserts used in the standard Duo6 Sports system and the panels are fixed to the posts every 400 mm as opposed to every 200 mm. This is ideal for situations where the noise from ball impacts is not likely to cause a problem with local residents. This lightweight panel keeps costs to a minimum, but the dual horizontal wires welded either side of the verticals ensure that the system retains the high level of rigidity necessary for ball courts.

A clamp bar covers the panel ends so no sharp edges are exposed.

Features and benefits:

  • Reduces noise and rattle caused by ball impact with EPDM inserts and fixings every 400 mm.
  • 50 x 200 mm open mesh increases visibility to ensure there are no hiding places for the safety of players.
  • Twin wire structure provides a rigid strong mesh panel that is low maintenance and provides no solid surface for vandals.
  • Continuous panel without mid-rails to injure players.
  • Supplied with standard or minimal projections at the top of the panel.
  • Available either bolt down, in ground or on wall.
  • Goal and basketball ends also available.

Applications:

  • Civic and public sector.
  • Sport and leisure.
  • Schools and education.

General information
Finish

Galvanized and polyester powder coated

Uniclass 2015 Metal mesh panel fencing systems (Ss_25_14_67_51)
Specification data
Product Reference

Duo6 Sports Lite

Height

0.630–6.0 m, insert requirements.

Fixing

Bolt down

In ground

Wall

Gates -
Pedestrian

Not required

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular

Not required

Required

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Projection

Minimal

Standard

Standard product features

Finish:

Galvanized and polyester powder coated.

Mesh:

Duo6 mesh comprising 50 x 200 mm mesh with dual 6 mm horizontal wires at 200 mm centres and single 5 mm vertical wires at 50 mm centres.

Posts:

Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres.

Post to panel fixing:

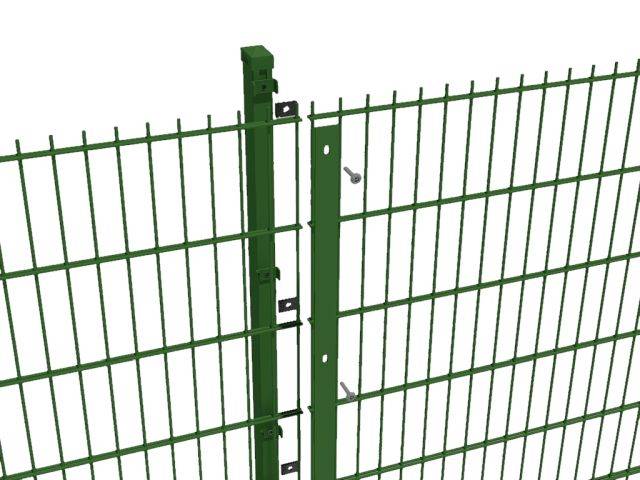

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres with EPDM inserts. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.

Gates:

Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
