DUH Hospital Disposal Unit - Hopper Only

Verified by manufacturer over a year ago

KWC DVS Limited

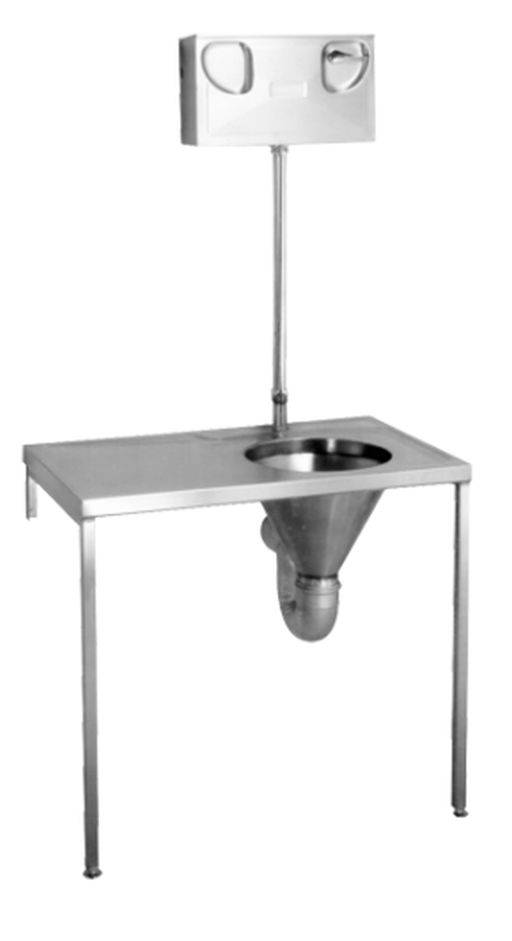

DUH hospital pattern disposal sink - hopper only.

Jump to:
BIM object icon
+44 (0)1246 458900 Website

Application

Hospital pattern disposal sinks with left or right hand drainer designed for either duct or surface mounting.

Description

The disposal unit can be mounted either on stainless steel cantilevered brackets or on stainless steel front leg supports with adjustable feet to provide a working height of 900 mm.


Features and Benefits:

  • The sluice hopper incorporates a 110 mm diameter outlet, which can accommodate a 'P' or 'S' trap.
  • Plastic cisterns with stainless steel down-pipes are for duct mounting.
  • Stainless steel cisterns with stainless steel down-pipes are for surface mounting.
  • Cisterns have 9L capacity and are fitted with a 13 mm HP brass valve, plastic float and CP metal flushing lever handle.
  • Cisterns should only be fed from a tank water supply and the flush volume is of 9L.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

 Grade 1.4301 (304).

Length

1000 mm

Width

600 mm

Warranty description

Five year

Uniclass

Pr_40_20_93_37 Hospital pattern disposal unitsPrimary

CAWS

N13/386 Disposal units

Product range

Disposal units

Specification data - Hospital pattern disposal units

Form

1000 x 600 mm hopper with plain top.

Finish and material

Satin finished, stainless steel.

 Grade 1.4301 (304).

Hand

Left hand drainer.

G22016L.


Right hand drainer.

G22016R.


Product Reference

(G22016L) 207.0000.063

Hospital pattern disposal sink DUH with left hand drainer and back inlet for duct mounted cisterns.

(G22016R) 207.0000.064

Hospital pattern disposal sink DUH with right hand drainer and back inlet for duct mounted cisterns.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

Recyclable.

-

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

2

IFC
-

1
