DUH Hospital Disposal Unit - Bowl & Hopper - G22018 range
Verified by manufacturer over a year ago

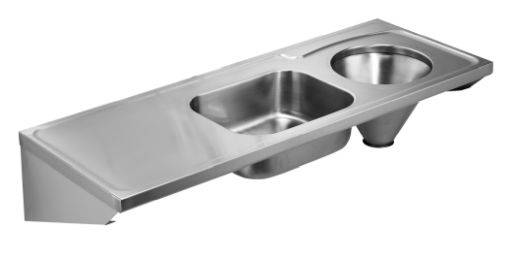

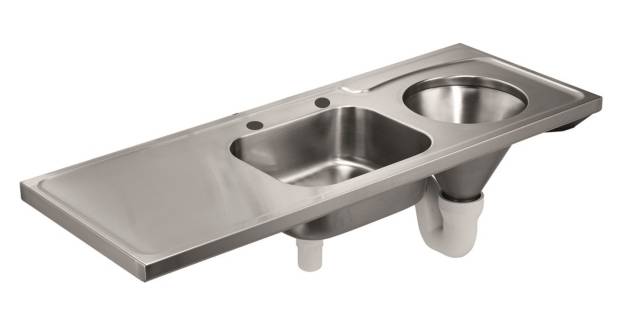

DUHS hospital pattern disposal sink with back inlet.
Application
Hospital disposal unit which can be mounted on either stainless steel cantilever brackets or stainless steel front leg supports.
Description
DUHS hospital pattern disposal sink with back inlet.
Features and Benefits:
- The top is turned down on all four edges and incorporates a wet area recess.
- Fitted with a sluice hopper at one end which can be suitable for either top entry or duct mounted services.
- The hopper has a 110 mm diameter outlet which can accept a P or S trap, available as an extra.
- A wash up bowl is positioned next to the sluice hopper and is prepared for a 38 mm waste outlet.
- The wash up bowl does not have an overflow.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Length | 600 mm |
Width | 1600 mm |
Height | 300 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/386 Disposal units |
Product range |
Specification data - Hospital pattern disposal units
Form | 1600 x 600 mm hopper with turned down top and sink. |
Finish and material | Satin finished, Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Hand | Left hand drainer.Right hand drainer. |
Options | Front leg supports.Guidance for specification option: Unit can be mounted on stainless steel front leg supports. Front leg supports give a working height of 900 mm and have adjustable feet which can be screwed to the floor for extra stability. Cantilever brackets.Guidance for specification option: Unit can be mounted on either stainless steel cantilever brackets. |
Product Reference | (G22018LT) 207.0000.066 Guidance for specification option: LH drainer top 110 mm outlet, back inlet for duct mounted cisterns with two tapholes at 200 mm centres (G22018RT) 207.0000.068 Guidance for specification option: RH drainer top 110 mm outlet, back inlet for duct mounted cisterns with two tapholes at 200 mm centres |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
