Description

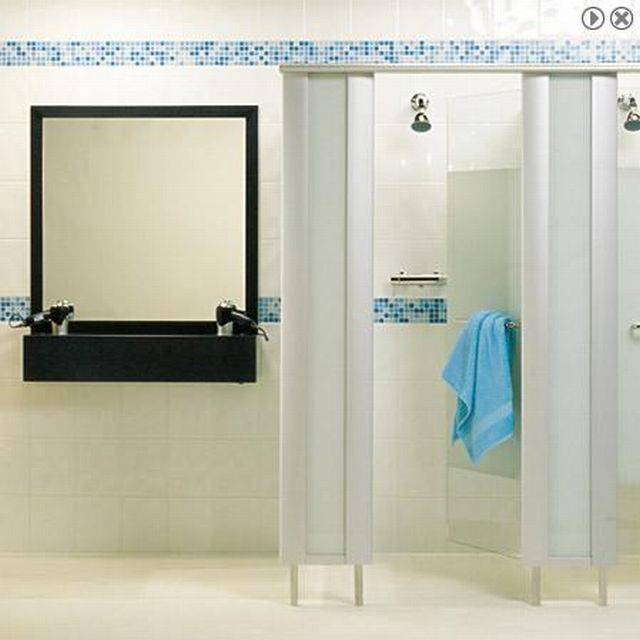

Shower cubicle with either solid grade laminate or glass doors.

General information
Material

As schedule ___

A wide range of materials available, please contact manufacturer for details.

Size

2040 mm overall height including 150 mm floor clearance

Uniclass 2015 Panel cubicle systems (Ss_25_12_60_60)
Specification data
Product Reference

Duet Shower Cubicle

Type

DuetGs

Glass doors.

DuetGsglS

Glass doors and solid grade laminate partition.

DuetSGLs

Solid grade laminate doors.

Material

As schedule ___

A wide range of materials available, please contact manufacturer for details.

Colour

As schedule ___

Pilaster finish

Manufacturer's standard

Other finishes available upon request subject to surcharge.

As schedule ___

Legs

Not required

Required

Standard product features

Size:

2040 mm overall height including 150 mm floor clearance.

Headrail:

Satin anodized aluminium aerofoil profile to match pilasters.

Ironmongery:

  • Grade 316 stainless steel channel bracket partition and pilaster fixings.
  • Standard: Satin polished finish.
  • Glass doors: Pickled, passivated and electro plated finish with exterior towel rail and internal pull knob.

Product Options

Type:

- Glass doors (DuetGs):

  • Panels: 6 mm toughened and screen printed safety glass bonded to 13 mm thick solid grade laminate.
  • Doors and partition: 10 mm toughened and screen printed safety glass.

- Glass doors and solid grade laminate partition (DuetGsglS):

  • Panels: 6 mm toughened and screen printed safety glass bonded to 13 mm thick solid grade laminate.
  • Doors: 10 mm toughened and screen printed safety glass.
  • Partition: 12/ 13 mm solid grade laminate (SGL).

- Solid grade laminate doors (DuetSGLs):

Panels, doors and partitions made of 12/ 13 mm solid grade laminate (SGL).

- Colour:

To be confirmed from WW standard range, subject to depth of partition.

Edge treatment:

  • Glass doors (DuetGs): All edges polished
  • Glass doors and solid grade laminate partition (DuetGsglS): Exposed edges machined to a smooth finish.
  • Solid grade laminate doors (DuetSGLs): Exposed edges machined to a smooth finish with radiused safety corner details to doors.

Pilaster finish:

Split pairs of elliptical/ aerofoil aluminium pilasters 100 x 40 mm. Satin anodized as standard.

Legs:

Two options available:

  • Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels.
  • Not required as main pilaster extended to floor.
