Application

Suitable for light steel frames of 1.2 to 3 mm thick section.

Description

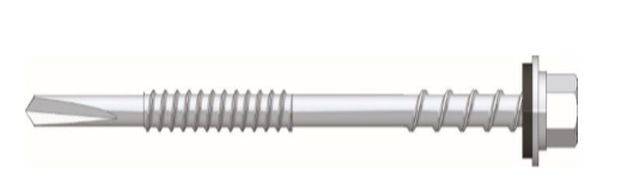

Dual thread, self-drilling, self-tapping screws used to fix surface fixed brick tie channels onto insulated structural steel framing system (SFS) steel studwork (Metsec) without crushing the insulation. The screws feature a hardened, shaped drill tip to allow installation without the need for pre-drilling. Includes a bonded neoprene isolation washer


Features and benefits:

  • CE marked.
  • Easy to install.
  • Other sizes are available upon request.
  • For use with Wincro's 25/14 Bricktie Channel.
  • Compliant with BS EN 1090-1 and BS EN 845-1.
  • Available in bright zinc plated (BZP) steel and stainless steel (SS).
  • Feature a drill tip to suit 1.2 to 3 mm thick steel allowing installation without pre-drilling.
  • A component of the WC27 Channel System.

General information

Color

Silver

Material

Steel

Guidance for specification option:

Bright zinc plated (BZP) steel, standard.

Stainless steel

Shape

Other

Length

65 mm

82 mm

98 mm

120 mm

130 mm

Show more

Manufacturer guidance

Other sizes are available on request, consult manufacturer for details.



Uniclass

Pr_20_29_76_75 Self-tapping screwsPrimary
Pr_20_29_76_76 Self-drilling screws

CAWS

F30/290 Proprietary special fixings

Specification data - Self-tapping screws

Standard

To BS EN 1090-1 and BS EN 845-1.

Material

Stainless steel (SS).

Guidance for specification option:

WBSDD120SS.


Bright zinc plated (BZP) steel.

Guidance for specification option:

Standard - WBSDD120ZP.


Size

-

Length

120 mm.

Thickness

65-95 mm.

Manufacturer guidance

Insulation and backing board thickness, specifier to detail.
