DT-A1 Hygieniglass surface sliding bi-parting door

Verified by manufacturer 25 days ago

Automated.

Dortek Ltd Variant:

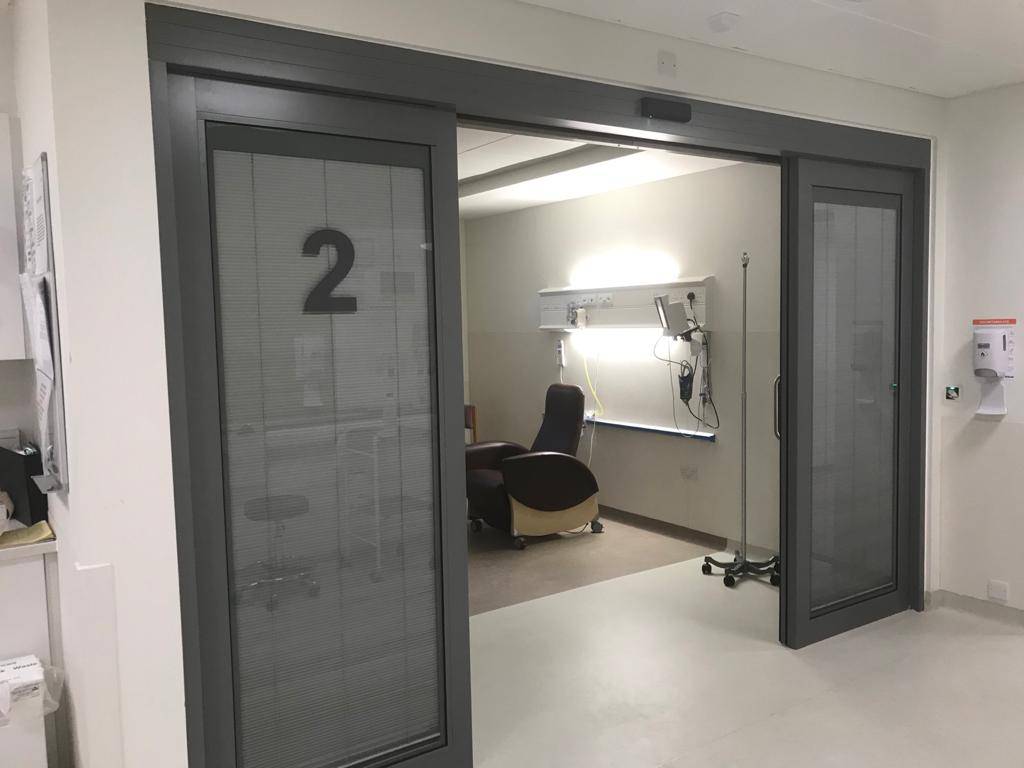

Surface sliding bi-parting glass door.

Jump to:
BOS
+44 (0)1482 226848 Website

Application

  • Healthcare.
  • cleanrooms.
  • laboratories.
  • pharmaceutical manufacturing.
  • BSL3 & BSL4 labs.
  • ICU.

Description

Surface sliding bi-parting glass door. Innovative glass sliding system that is durable, contemporary and ideal for providing visibility. The smooth sliding action saves on opening space.


Features and benefits:

  • Surface sliding door.
  • Manual or automated door.
  • Surfaced mounted track that spans over the opening and sliding space.
  • DT5 track and canopy.
  • Sloped canopy with option of flat top.
  • Powder coated aluminium frame with option of stainless steel surround frame.
  • Single glazed 6mm toughened glass.
  • Sloped edge beading between glass and frame.
  • Options include manifestations, blinds or switchable glass within door & fixed glazed panels.


Antimicrobial options:

  • Antimicrobial copper alloy handles. Aesthetic finish and appearance of stainless steel 400mm or 650mm sizes available.
  • On-line coated glass with a photocatalytic coating providing antimicrobial properties. Can be toughened or laminated.
  • Consult manufacturer.

General information

Color

Silver

Other

Guidance for specification option:

Colour to RAL number, consult manufacturer.

Finish

Powder-coated

Satin

Material

Aluminium

Glass

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

L20/490 Automatic doors

L20/60 Doors

Product range

Doors / Sliding Doors

Specification data - Sliding door and partition sets

Performance

Internal.

Arrangement

Bi-parting opening.

Track system

DT5 aluminium track system.

Guidance for specification option:

With complete with low friction nylon roller bearings.

Door leaves

-

Construction

Guidance for specification option:

Mounting type:

  • Track mounted over the structural opening.
  • Requires sliding space.
  • Requires track fixing over the opening and sliding space.


Optional:

  • Fixed glazed panel within the structural opening.
  • Track mounted within Structural opening (self supporting unit).
  • Glass sliding door sliding over fixed glazed panel.
  • 100 x 145 mm aluminium box section at head section and 100 x 45 mm aluminium up rights fixed into opening.
  • Fixed glazed panel fixed within opening.

Finish and colour

Powder coated, RAL.

Guidance for specification option:

As standard. Colour to RAL number, insert requirement.

Satin aluminium.

Guidance for specification option:

Optional.

Stainless steel.

Guidance for specification option:

Optional.

Operation

Automated.

Guidance for specification option:

  • Electric automation with micro processor controls.
  • Motor position top or end mounted on track.
  • Full safety sensor mounted above doors.


Optional:

  • Battery backup for automation.
  • Electronic locking.
  • Manual opening force less then 15nm with no seals or damper.

Hardware

Not required.

Accessories

Not required.

LCD switchable glass.

Guidance for specification option:

  • Max size 1500 x 3200 mm.
  • Opaque in off state and translucent in “on” state.

Glass

Double glazed 6 mm, toughened glass.

Single glazed 6 mm, toughened glass.

10.4 mm laminated safety glass.

Guidance for specification option:

Optional.

Toughened & laminated safety glass.

Guidance for specification option:

Optional.

Antimicrobial glass.

Guidance for specification option:

Optional.

Canopy

Sloping canopy.

Flat top canopy.

Canopies

Stainless steel.

Guidance for specification option:

As standard.

Powder coated, RAL.

Guidance for specification option:

Optional, insert requirement.

Manufacturer guidance

Colour / finish.

Frame

High surround frame.

Guidance for specification option:

45 x 110 mm (width x high).

Aluminium corner edge profile.

Guidance for specification option:

Optional.

Stainless steel wall liner.

Guidance for specification option:

Optional.

Controllers

Push button.

Radar.

Touchless sensors.

Manufacturer guidance

Automation Controllers.

Glass panel

Fixed glazed panel on one side.

Fixed glazed panel either side for bi-parting.

Manufacturer guidance

45 mm wide x 110 mm high powder coated aluminium surround frame profile to match door blade.

110 mm wide x 45 mm high surround frame.

Glass spec to match door blade.

Integral venetian blinds

Integrated venetian blind systems with horizontal slats with tilt only.

Colour/ Finish

Guidance for specification option:

Colour of blind slat from standard range, insert requirement.

Manufacturer guidance

Venetian blind colour.

Blinds operation

Sloped beading.

Guidance for specification option:

Between glass and frame.

Rectangular beading.

Guidance for specification option:

Between glass and frame.

Seals

Not required.

Draught compression seals.

Guidance for specification option:

To leading & trailing edges, jambs and transoms.

Sustainability data

Contains Red List materials

No

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
