Dryrod Damp Proofing Rods - Next Generation Rising Damp Treatment from The Makers of Dryzone

Dryrod Damp Proofing Rods - Next Generation Rising Damp Treatment from The Makers of Dryzone

Safeguard Europe Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Dryrods are the next generation treatment for rising damp. They provide a higher level of performance and quicker installation speed than any other rising damp treatment currently available.

Jump to:
+44 (0)1403 210204 www.safeguardeurope.com

Application

When treating from the outside, a row of holes should be drilled into the mortar course 120 mm apart and approximately 150 mm above the ground. When treating from the inside, the holes should be drilled into the lowest accessible mortar course.


Depending on the thickness of the wall, mark the drill bit ‘x’ distances from the tip (as per chart shown in image)


Drill the holes the necessary depth ensuring you reduce your drilling pressure once you reach 40 mm short of the full hole depth. Reducing pressure ensures a cleaner hole and prevents damage to the far side of the wall.


If necessary, re-drill the holes twice to remove any excess debris. If excess debris continues to obstruct full rod insertion the Dryzone System Hole Clearing Tool can be used to ensure the hole is completely clear.

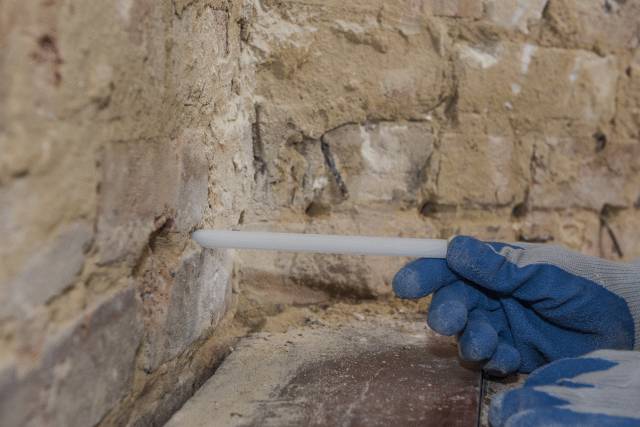

Wearing suitable gloves, remove the rods one by one from the packet. Where necessary, e.g. 4.5” walls, cut the rods to the appropriate length using the Dryzone System Rod Cutting Tool and insert them into each of the drill holes.


Ensure the rods are recessed approximately 5 mm from the brick face.

Description

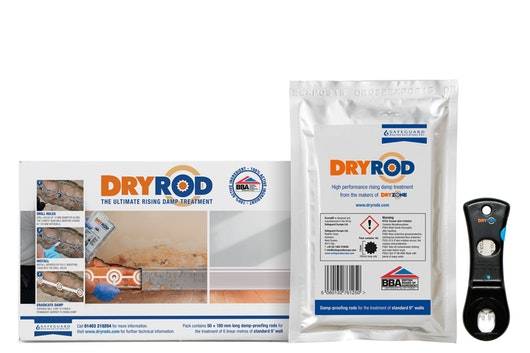

Dryrod damp-proofing rods are patented, 12 mm diameter grooved rods that carry a water-repellent material. The rods are inserted into pre-drilled 12 mm holes along the mortar lines of a building. The water-repellent they carry diffuses deeply into the damp masonry, curing to form a highly effective barrier to dampness. This forms a damp-proof course, which stops further rising damp from occurring and helps the wall to dry out.


Dryrod is effective where the wall is highly saturated, cold or warm (it can be used in freezing conditions), very porous, highly alkaline (new mortar), and with low alkalinity (old mortar). To be applied by a suitably qualified contractor.


Features and benefits:

  • Consistent application due to controlled dosing of water repellent.
  • Simple application, just drill and insert rod (no specialist application equipment needed).
  • Effective in both new (alkaline) and old (neutral) mortar.
  • Can be applied in cold conditions.
  • Spillage and mess eliminated.

General information

Color

White

Uniclass

Pr_20_31_53_41 Injection mortar damp-proof coursesPrimary

CAWS

C45/220 Chemical injection dpc system

C45/30 Chemical injection dpc system

Specification data - Injection mortar damp-proof courses Enhanced data

Third party product certification

BBA Certificate.

Colour

White.

Pack size

10.

30.

50.

Literature

Dryrod Damp-Proofing Rods Data Sheet

Dryrod Damp-Proofing Rods Data Sheet

97/3363 Dryrod Damp-Proofing Rod

97/3363 Dryrod Damp-Proofing Rod

Dryrod/Dryzone Billingshurst Case Study

Dryrod/Dryzone Billingshurst Case Study

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

97/3363
