product no longer available -

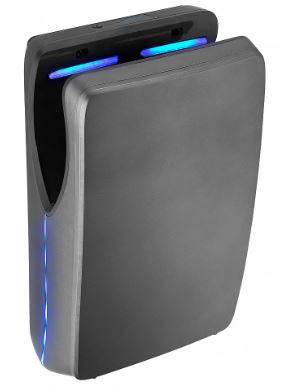

Description

  • Universal brushed motor, suitable for high traffic locations with a life of 4200 hours, Produces a 335 MPH (30,000 rpm) airspeed, creating in house tested 11 seconds’ dry times.
  • Energy consumption of the motor is 1kW.
  • Main heater element is 0.5kW.
  • Total rated power of 1.5kW, however unit will be working at 1kW in most locations as main heater element only activates in washroom temperatures lower than 25oC.
  • Casing is made of antibacterial ABS with the plastic injected with silver ions for enhanced hygiene.
  • H14 HEPA filter included as standard and has been tested to remove > 99,5% microbes.
  • Sound is a low 65.6db from 2M with results provided by the Technical University of Valencia.
  • The unit has a 500ml drainage tank which collects the excess water from hand drying. The drainage tank is easily accessible from the bottom of the dryer for servicing.
  • A luminous display system notifies of when the HEPA filter needs changing, when the water tray is full and when the brushes need changing.
  • Sensor can be regulated to increase or decrease sensitivity.

General information
Color

Graphite

Features

Fast drying, water vaporising, LED lighting, cost effective, small wall foot print for type of unit

Finish

Graphite

Material

Acrylonitrile butadiene styrene, polycarbonate, polybutylene terephthalate

Shape

Rectangular

Size

540 x 320 x 180 mm

Uniclass 2015 Hand dryers (Pr_40_70_62_37)
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.1
Revit
- 2 2.1
Download now from NBS National BIM Library
