Application

Suitable for low to heavy use, from less than 50 uses, up to 500 uses per day. For airports, food production areas, hotels, offices and restaurants.

CE marked.

Description

Hand dryer with three bladed air outlets and two high velocity motors.

Features and benefits:

  • 11 seconds dry time.
  • Vandal-proof.
  • Intelligent diagnostic system included to alert when the water tank is full or the filter needs cleaning.
  • Water is driven into the easily serviceable water tank, ensuring walls and floors stay dry and mess free.
  • Microban antimicrobial protection prevents the growth of bacteria, mould and mildew in water stagnant areas. It will not wash away or wear out during the life of the product, therefore giving a superior level of germ-free protection than continuous use of disinfectants alone.
  • Motors run at 1750 W rated power and utilize the high velocity airflow, due to there being no heater element present.
  • Seven year guarantee.

Applications:

Suitable for low to heavy use, from less than 50 uses, up to 500 uses per day. For airports, food production areas, hotels, offices and restaurants.

CE marked.

General information
Features

3 blade outlets and 2 soft start motors produce high velocity airflow and quick dry times; Microban antimicrobial protection prevents the growth of bacteria, mould and mildew in all water collection areas; 7 year guarantee

Material

ABS Polymer

Size

300 x 195 x 617 mm

Uniclass 2015 Hand dryers (Pr_40_70_62_37)
Specification data
Product Reference

DF08S

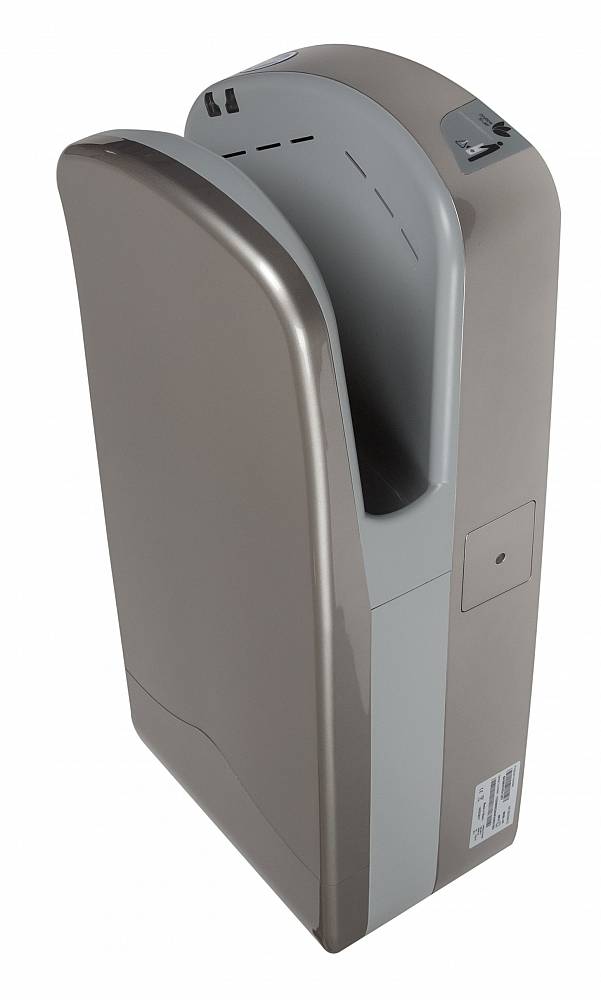

Silver.

DF08W

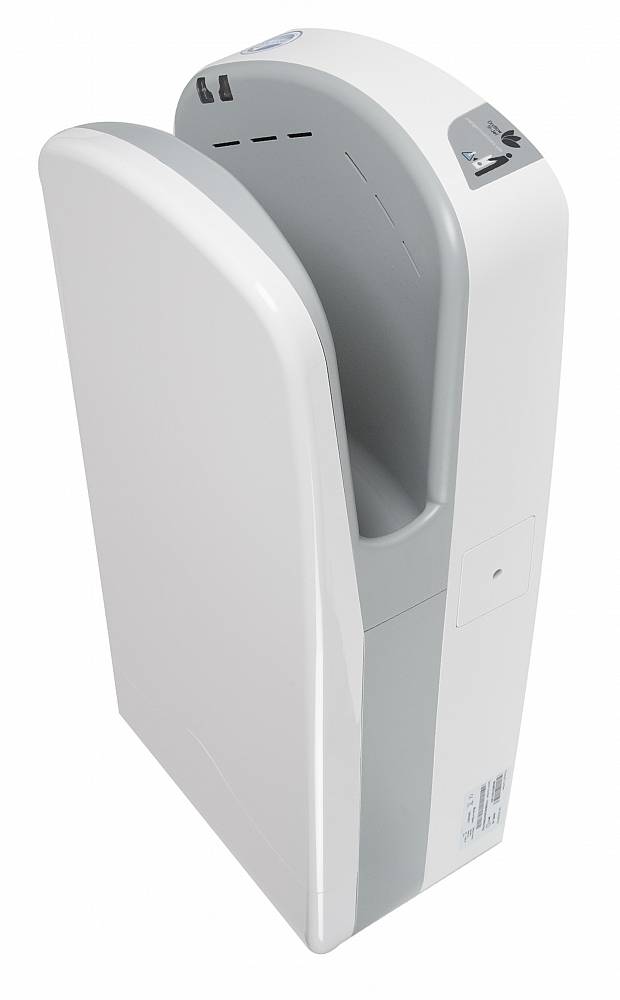

White.

Accessories

Not required

HEPA filter

Total retention rate of 99.5% of microbes.

Odour neutralizer

Leaves a pleasant fragrance.

Standard product features

Size (h x w x d):

617 x 300 x 195 mm.

Material:

2.6 mm thick ABS polymer with Microban antibacterial protection in drying areas.

Technical characteristics:

  • Rated power: 1760 W (1.76 kW).
  • Input voltage: 220–240 V (50–60 Hz).
  • Energy per dry: 5.38 Wh.
  • Motor: Universal brush motor.
  • Motor speed: 30 000 rpm.
  • Air speed: 211 mph (94 m/s).
  • Operating sound level (at one metre): 78 dBA.
  • Operating temperature range (at ambient temperature): 22–25°C.
  • Standby power consumption: 1 W.
  • Motor cut-off time: 25 seconds.
  • Ingress protection (IP) rating: IPX1.
  • Sensor type: IR.
  • Weight: 9.15 kg.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
