Application

Suitable for light to mid use, from 51–300 uses per day. For bars, limited space washrooms and one-cubicle bathrooms, offices and restaurants.

CE marked.

Description

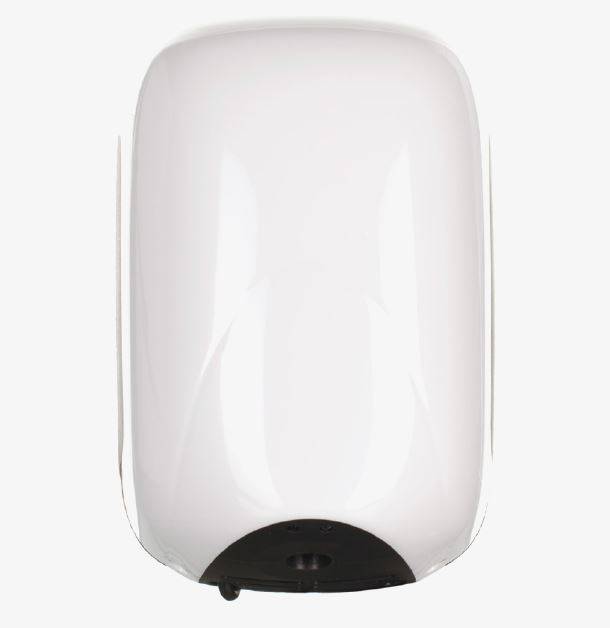

Small, high-velocity hand dryer with a single, compressed air flow outlet.

Features and benefits:

  • 20–25 seconds dry time.
  • Absorption heater included.
  • Relatively quiet noise level.
  • Energy efficient drying experience, and small running costs.
  • Compact design which maximizes mobility space in disabled washrooms. Unit is less than half the width of a piece of A4 paper.
  • Infra-red sensor with automatic hand detection and adjustable range.
  • Expected life of the 400 W motor is 1000 continuous hours, with a brush life of 500 hours.
  • Two year guarantee.

Applications:

Suitable for light to mid use, from 51–300 uses per day. For bars, limited space washrooms and one-cubicle bathrooms, offices and restaurants.

CE marked.

General information
Material

Impact resistant ABS plastic with black nylon

Uniclass 2015 Hand dryers (Pr_40_70_62_37)
Specification data
Product Reference

GFJ01W

White.

GFJ03

Polished chrome.

Accessories

Not required

HEPA filter

Total retention rate of 99.97% of particles greater than 0.3 microns.

Standard product features

Size (h x w x d):

238 x 156 x 99.5 mm.

Material:

Impact resistant ABS plastic with black nylon.

Technical characteristics:

  • Rated power (adjustable motor): 900 W (0.9 kW).
  • Input voltage: 220–240 (50–60 Hz).
  • Energy per dry (at maximum speed): 5.25 Wh.
  • Motor: Universal brush motor.
  • Motor speed: 28 000 rpm.
  • Air speed (maximum): 155 mph (70 m/s).
  • Air volume: 65.69 cfm.
  • Operating sound level (at two metres): 70 dB.
  • Operating temperature range (at 22°C): 57°C.
  • Heater element power: 500 W (optional use by switch).
  • Motor cut-off time: 35 seconds.
  • Ingress protection (IP) rating: IP23.
  • Sensor type: IR.
  • Weight: 1 kg.
