DropTile Black - Indoor rubber sports flooring
Verified by manufacturer 3 months ago
SCS Certified
Certificate type
Black, heavy rubber DropTile for free weights and heavy exercise equipment.
Application
Commercial applications such as gyms, schools and sports facilaties.
Description

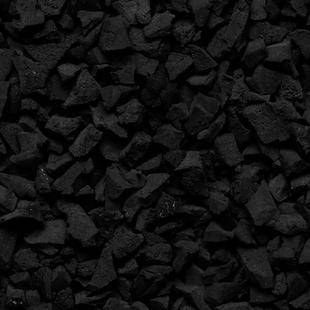

Black, heavy rubber DropTile for free weights and heavy exercise equipment. It has a high resistance to impacts and falling of heavy loads (up to 150kg) thanks to its 30mm layer extremely dense made from a mixture of chosen EPDM rubber granules bonded with polyurethane elastomer.
Features and benefits:
- Adhesive-free for easy installation.
- Good acoustic performance.
- High impact resistance.
- Eight connector pins per tile.
- Reinforced backing.
General information
Color | Black |
Finish | Smooth |
Material | Rubber Polyurethane |
Shape | Rectangle |
Length | 1000 mm |
Width | 500 mm |
Height | 30 mm |
Warranty description | Three year |
Uniclass | |
CAWS | M50/10 Resilient floor tiling M50/110 Resilient floor tiling |
Specification data - Rubber tiles
Standard | To ISO 24346, ISO 23997, ISO 24341, EN 14808, EN 12235, EN 13501-1, EN ISO 1798, DIN 53505, DIN 53516, EN 13893, EN 13036-4, ISO 10140-3. |
Properties | |
Dimensions | |
Depth | 30 mm. |
Plan size | 500 x 1000 mm. |
Upper layer | |
Material | Granulated rubber. |
Colour | 430009200 Droptile black 30 mm. |
Backing layer | |
Material | Granulated rubber. |
Colour | Black. |
Installation | Loose-Lay. |
Reaction to fire | Cfl-s1. |
Weight | 27 kg/m². |
Packing | Manufacturer guidance80 tiles per box, 40 m² per box. |
Shock absorption | 51%. |
Ball rebound | 98%. |
TensileStrength | 0.75N/mm². |
Elongation at break | 50%. |
Hardness | 60 ± 5 Shore A. |
TemperatureRange | -30°C to 80°C. |
Static coefficient of friction | > 0.3 μ (DS). |
Impact sound reduction | 26 dB. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United States |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
SCS Certified
VOC - Floorscore - Tarkett Droptile & Dropzone
