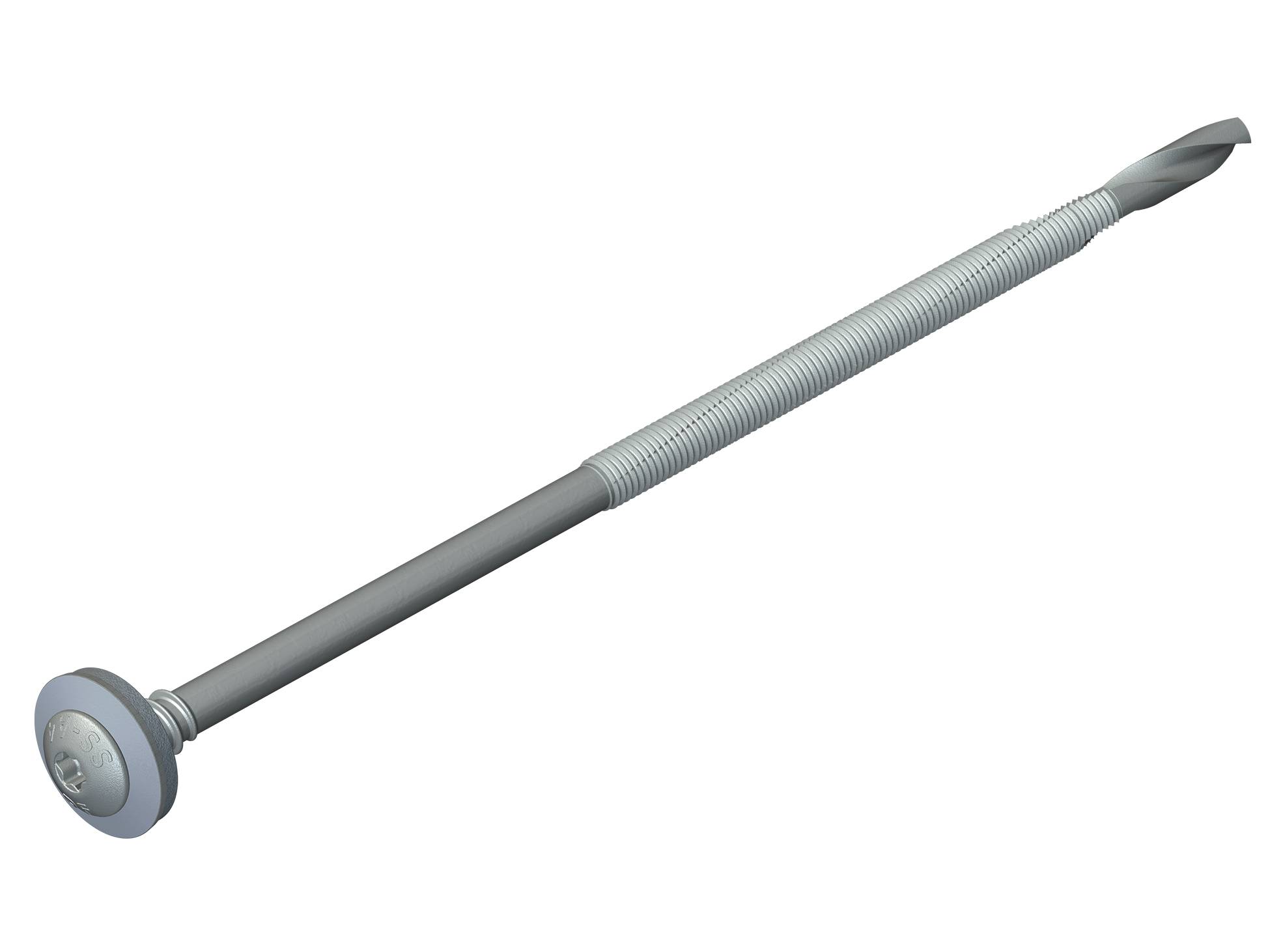

DrillFast® Stainless Steel DF12-SSA4-P(L)-HT Composite Panel Fasteners
Verified by manufacturer 2 months ago
European Technical Approval (ETA)
Certificate type
Stainless steel low profile self-drilling fasteners for installing insulated sandwich panels to heavy steel.
Application
For mechanically fixing composite panel systems to heavy steel purlins and sections.
Description
Stainless steel self-drilling fasteners for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A4/ 316 stainless steel for optimum resistance to corrosion
- Bi-metal manufactured for superior drilling performance
- Excellent pull-out and shear performance
- High thread provides optimal clamping force to top sheet
- Purpose designed and precision manufactured
- ETA Approved
- CE marked
General information
Color | Silver Beige Black Blue Bronze |
Finish | Lacquered Coated |
Material | Stainless steel Guidance for specification option: Grade A4-316 Austenitic stainless steel. |
Length | 165 mm 230 mm |
Width | 5.5 mm |
Warranty description | 40 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H43/219 Fasteners H92/120 Rainscreen cladding H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel |
Product range |
Specification data - Self-drilling screws
Material | 1.4401 stainless steel (316M), with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Low profile. |
Size | |
Diameter | 5.5 mm. |
Length | 165 mm.230 mm. |

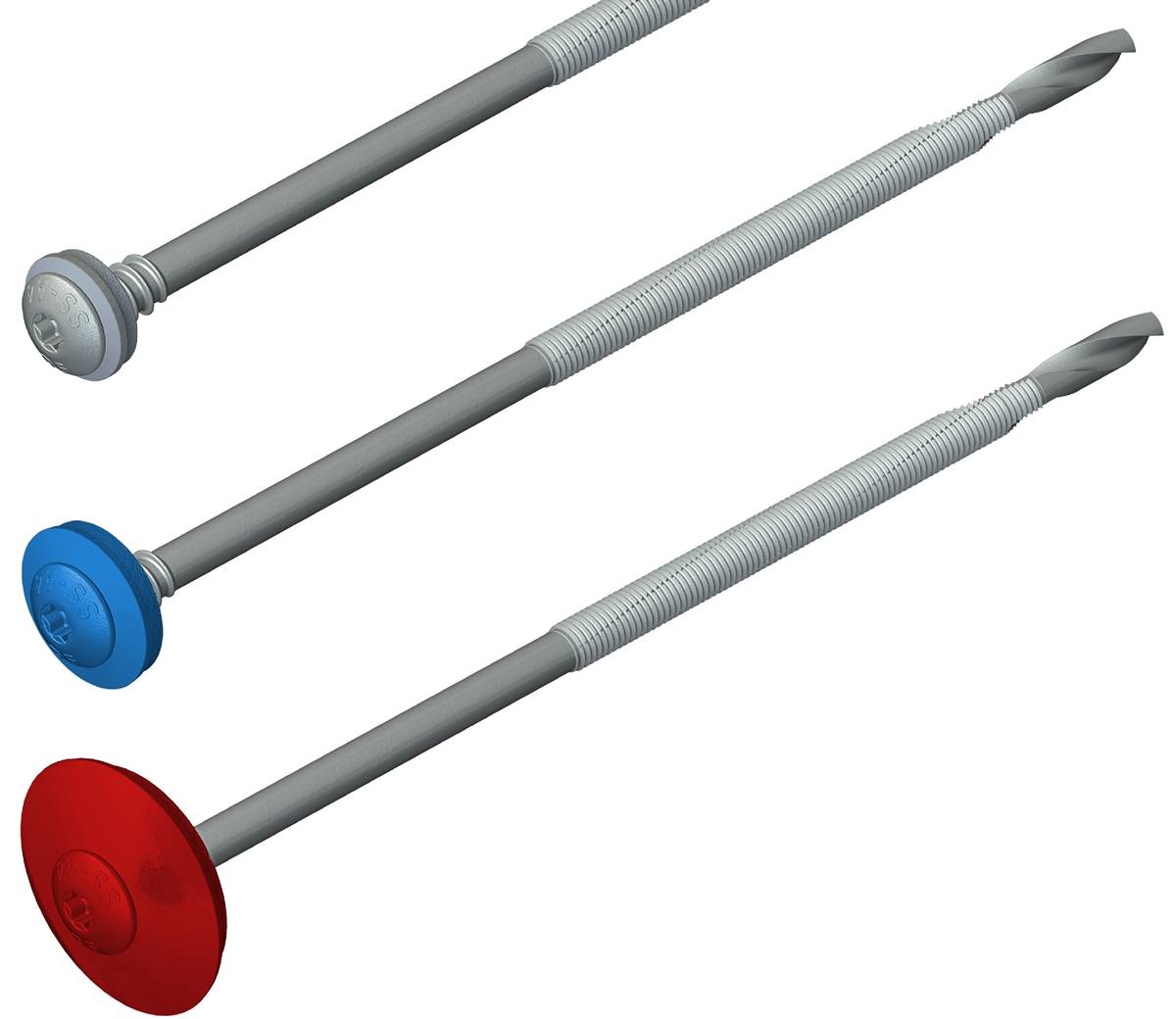

Washers | Not required.S15 stainless/ EPDM.Guidance for specification option: 15-mm diameter. S19 stainless/ EPDM.Guidance for specification option: 19-mm diameter. A29 aluminium/ EPDM.Guidance for specification option: 29-mm diameter. |
Execution | Manufacturer guidanceSee manufacturer's literature for full installation and handling details. |
Drilling capacity | 4.0–12.0 mm thick steel. |
Sustainability data
Material | Stainless steel Guidance for specification option: Grade A4-316 Austenitic stainless steel. |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1177
