DrillFast® Stainless DFT-SSA4-P(L)-4.9 Low Profile Timber Fasteners

Name: DrillFast® Stainless DFT-SSA4-P(L)-4.9 Low Profile Timber Fasteners
Brand: Fixfast Ltd
SKU: xn85a2QRZ9uU1PjCWXg5Eu

Verified by manufacturer 2 months ago

Third party certifications:

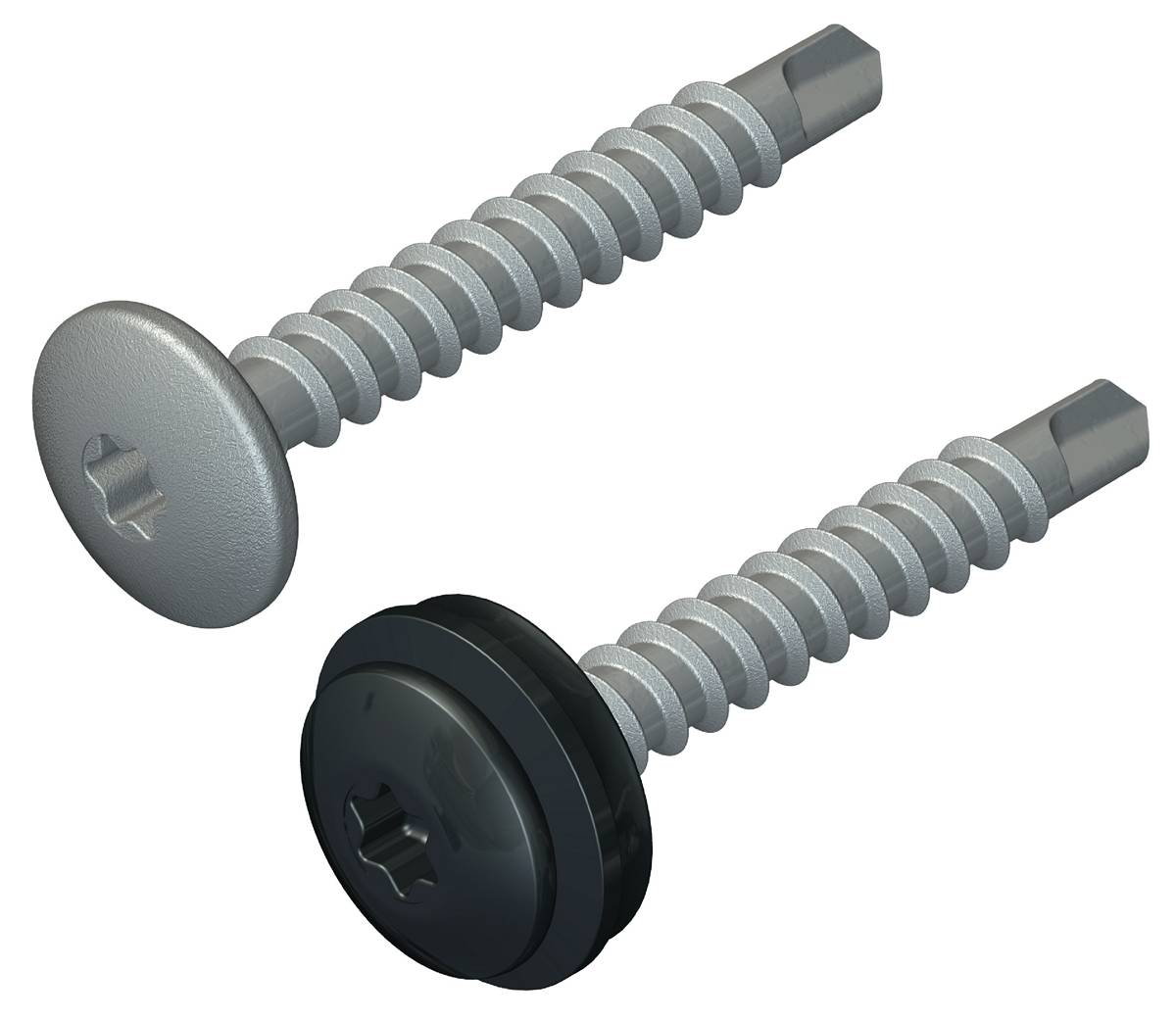

Stainless steel self-drilling fasteners for fixing roofing and cladding sheets and components to timber.

Jump to:

Application

For mechanically fixing metal sheeting systems to timber. Installed using colour coded (Red) drive bar.

Stainless steel self-drilling fasteners for roofing and cladding.

Features and benefits:

Color	Silver Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Coated Lacquered
Material	Stainless steel Guidance for specification option: Grade A4-316 Austenitic stainless steel.
Length	35 mm
Width	4.9 mm
Warranty description	40 year Guidance for specification option: Up to 40 years, consult manufacturer for details.

Uniclass	Pr_20_29_76_76 Self-drilling screwsPrimary
CAWS	H31/219 Fasteners H31/120 Metal H31/10 Metal H92/120 Rainscreen cladding

Product range	Fastener Systems

Material	1.4401 stainless steel (316M), with carbon steel case hardened welded point.
Finish	Organic coating.
Head type	Low profile pan, TX25 recess.
Size	-
Diameter	4.9 mm.
Length	35 mm.

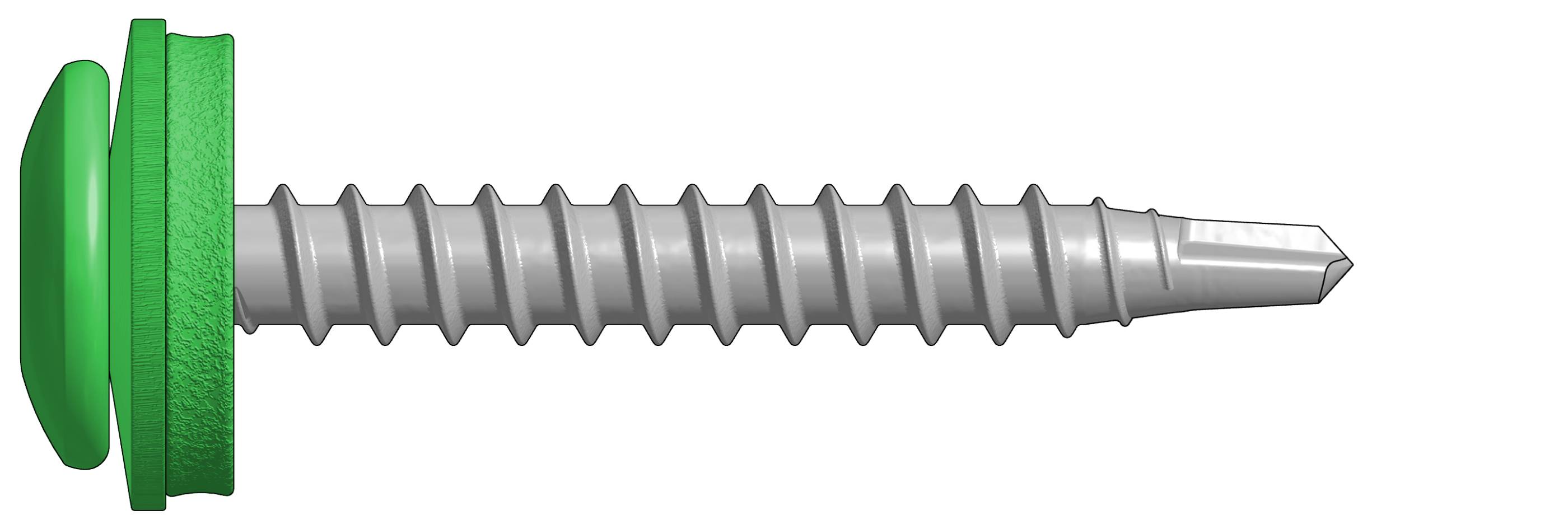

Washers	Not required. S12 stainless/ EPDM. Guidance for specification option: 10-mm diameter. S15 stainless/ EPDM. Guidance for specification option: 15-mm diameter. S19 stainless/ EPDM. Guidance for specification option: 19-mm diameter.
Execution	- Manufacturer guidance See manufacturer's literature for full installation and handling details.
