DrillFast Lacquered
Description

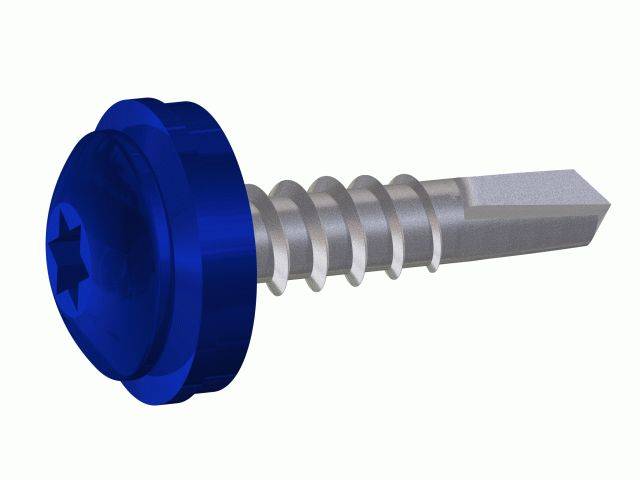

The DrillFast Lacquered range features a low profile domed head, which together with the highly durable colour co-ordinated finish, complement a large variety of modern architecture. With an increasing range of applications where the aesthetics of the fastener are of paramount importance, the fasteners can perform the task whilst matching in perfectly with the project.

Benefits:

  • Low profile head – For discreet fastening applications, and increased aesthetic appearance.
  • Powder coated head – Provides an excellent colour match to hundreds of RAL, BS and NCS colours.
  • Aluminium/ bonded washers – 10, 15, 19 or 29 mm diameter aluminium gives high-pullover strength and EPDM seal offers long-lasting seal.
  • Free-spin zone – Eliminates thread strip out in thin sheet materials, standard on stitching and high thread fasteners.
  • Optimized thread design – Enhanced pull-out performance and smoother tapping.
  • A2 and A4 grade stainless steel – For high corrosion resistance. Carbon steel lacquered fasteners are also available.
  • Optimized hardness – Eliminates failures.
  • Unique drill point geometry - Drills quickly and cleanly.

General information

Material

A2/304 and A4/316 Austenitic stainless steel

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

G30/280 Attachment of decking

H31/10 Metal

H31/110 Metal

H31/120 Metal

H31/160 Profiled plastics sheet

H31/240 Lining

H31/241 Lining

H31/30 Profiled plastic sheet rooflights

H31/40 Lining

Specification data - Self-drilling screws

Product Reference

DrillFast Lacquered

Type

As schedule

Contractor's choice

Colour

Polyester powder coated, colour

Insert requirements.

Washers

Not required

A10

For flashings.

A15

For cladding.

A19

For roofing.

L29

For rooflights.

Standard product features

Material:

A2/304 and A4/316 Austenitic stainless steel.

Product Options

Type:

- Standard fasteners:

For single skin sheeting, built-up systems, trim and flashing details.

  • DF3-SS-PL-5.5 x 25 mm.
  • DF3-SS-PL-5.5 x 35 mm.
  • DF3-SS-PL-5.5 x 50 mm.
  • DF3-SS-PL-5.5 x 75 mm.
  • DF12-SS-PL-5.5 x 40 mm.
  • DFT-SS-PL-4.9 x 35 mm.
  • DFT-SS-PL-4.8 x 25 mm.
  • DFT-SS-PL-4.8 x 38 mm.
  • DFT-SS-PL-4.8 x 60 mm.

- Composite panel fasteners:

For composite panel systems, bonded or loose laid.

  • DF3-SS-PL-HT-5.5 x 105 mm.
  • DF3-SS-PL-HT-5.5 x 130 mm.
  • DF3-SS-PL-HT-5.5 x 155 mm.
  • DF3-SS-PL-HT-5.5 x 180 mm.
  • DF3-SS-PL-HT-5.5 x 230 mm.

- Stitching fasteners:

For steel sheet stitching.

  • DF2-SS-PL-A10-4.8 x 20 mm.
  • DF2-SS-PL-A15-4.8 x 20 mm.
  • DF2-SS-PL-A10-6.3 x 25 mm.
  • DF2-SS-PL-A15-6.3 x 25 mm.
  • DF2-SS-PL-A19-6.3 x 25 mm.

For drilling capacity into steel and build-up (with or without washer), refer to manufacturer's literature for details.
