DrillFast® Dual Purpose Fasteners

Application

  • For mechanically fixing metal sheeting systems to light metal purlins and rails.
  • For mechanically fixing/ stitching two metal sheets up to 1 mm thick together.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2 or Class 3 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.

To be fixed with Fixfast RedDrive.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

Carbon steel self-drilling fasteners for roofing and cladding (0.5–3 mm).

Features and benefits:

  • High quality carbon steel with SAE1022 hardened case.
  • Good drilling and tapping performance.
  • High pull-out and shear performance.
  • Thread is designed for easy drilling into steel purlins.
  • Free-spin design helps to prevent damage arising from over-driving the fastener.
  • Available with powder coating for colour matching.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

  • For mechanically fixing metal sheeting systems to light metal purlins and rails.
  • For mechanically fixing/ stitching two metal sheets up to 1 mm thick together.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2 or Class 3 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.

To be fixed with Fixfast RedDrive.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Material

Steel SAE1022 case, hardened

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

null Metal roof tiling

H67/5 Metal roof tiling

Product range

Fastener Systems

Specification data - Self-drilling screws

Product Reference

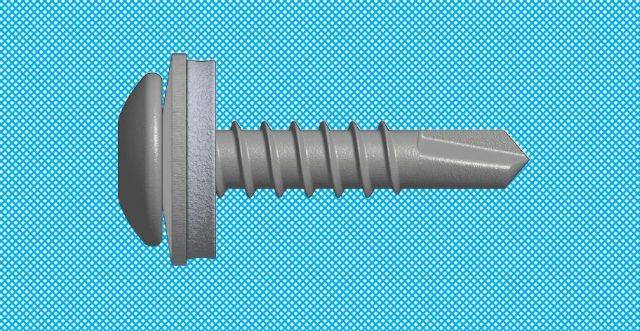

DrillFast® Carbon Steel Dual Purpose Fasteners for 0.5–3 mm steel, DF3-DP-A10-5.5 x 25

25 x 5.5 mm (l x diameter).

DrillFast® Carbon Steel Dual Purpose Fasteners for 0.5–3 mm steel, DF3-DP-A15-5.5 x 25

25 x 5.5 mm (l x diameter).

DrillFast® Carbon Steel Dual Purpose Fasteners for 0.5–3 mm steel, DF3-DP-A19-5.5 x 25

25 x 5.5 mm (l x diameter).

Washer

Required

Consult manufacturer for information.

Not required

Colour

Polyester powder coated, colour

Insert requirements.

Standard product features

Material:

Steel SAE1022 case, hardened.

Coating:

Multiple layer organic.

Head Type:

Low profile pan, TX25 recess.

Drilling capacity:

0.5–3 mm (steel).

Minimum penetration (light steel purlins and steel sheet):

10 mm (through underside).

Build up:

1–9 mm (dependent on washer use).

Durability class:

  • Interior environments: C1 (25).
  • Semi-interior: 20.
  • Urban C2 (12).
  • Rural: C3.
  • Industrial/ coastal: C4.
  • Marine: C5.

Technical characteristics:

- Characteristic values:

  • Pull out values (axial load resistance, to BS 5427): On 0.5 mm steel: 0.68 kN; on 1.2 mm steel: 1.52 kN; on 2 mm steel: 3.01 kN; on 3 mm steel: 5.42 kN.
  • Pull through values (axial load resistance): 0.5 mm steel with A15 washer: 3.68 kN.
  • Shear values (lateral load resistance): 0.5 mm steel: 1.06 kN.

- Design values:

  • Pull out values (axial load resistance, to BS 5427): On 0.5 mm steel: 0.51 kN; on 1.2 mm steel: 1.14 kN; on 2 mm steel: 2.27 kN; on 3 mm steel: 4.08 kN.
  • Pull through values (axial load resistance): 0.5 mm steel with A15 washer: 2.76 kN.
  • Shear values (lateral load resistance): 0.5 mm steel: 0.80 kN.

Other figures and specific testing are available on request - consult manufacturer for information.

Product Options

Product reference:

Consult manufacturer for further details.
