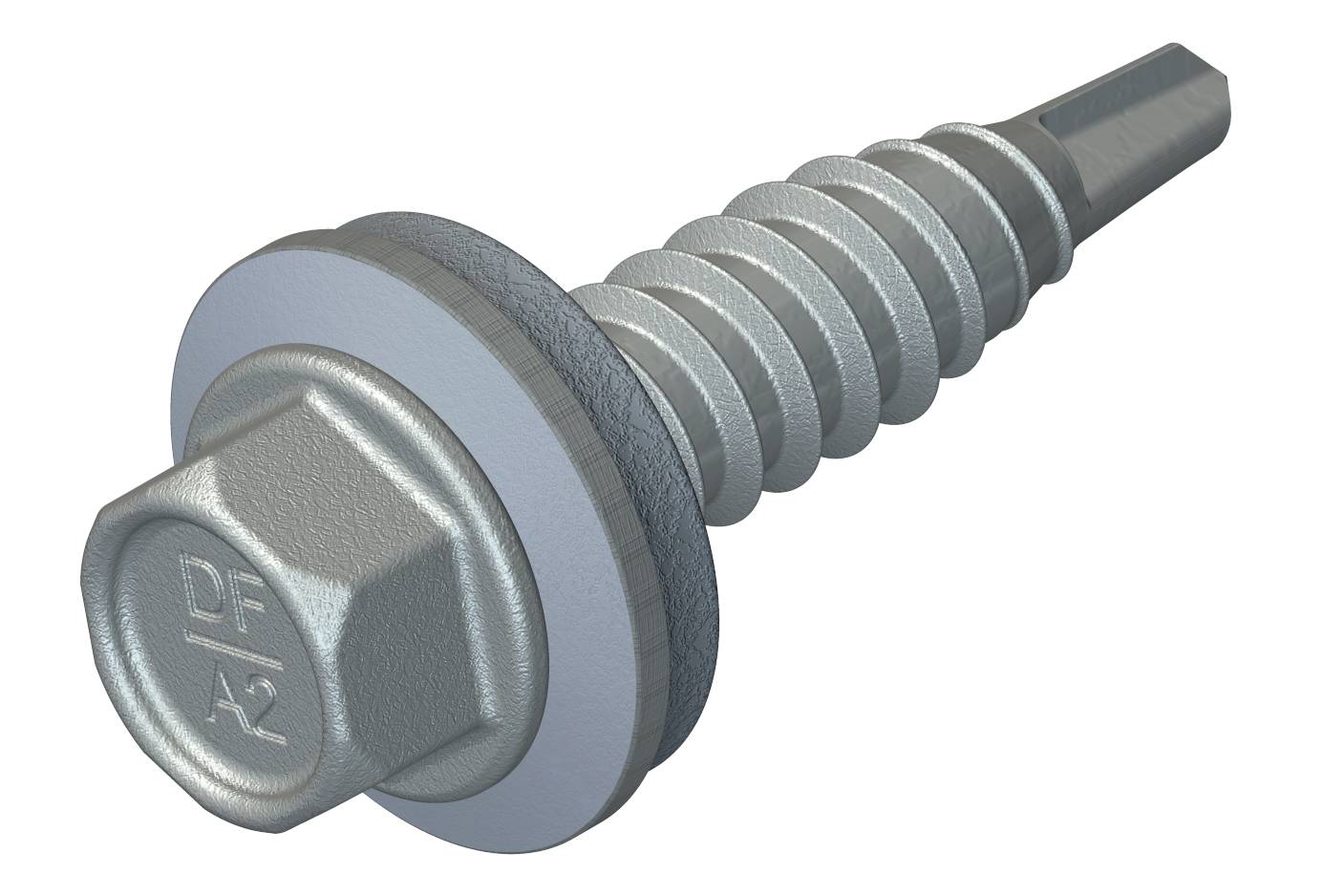

DrillFast® A2/304 Stainless DF2-SS-LS Stitching Fasteners
Verified by manufacturer 1 month ago
DF2-SS-LS-A15-6.3 x 25
DF2-SS-LS-A15-6.3 x 25
European Technical Approval (ETA)
Certificate type
Stainless steel self-drilling fasteners for stitching roofing and cladding sheets.
Application
For mechanically fixing (stitching) two metal sheets up to 1-mm thick together.
Description
Stainless steel self-drilling fasteners for roofing and cladding
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover.
- A2/ 304 stainless steel for optimum resistance to corrosion.
- Bi-metal manufactured for superior drilling performance.
- Excellent pull-out and shear performance.
- Purpose designed and precision manufactured.
- Free-spin design helps prevent damage arising from over-driving the fastener.
- ETA approved and CE marked
General information
Color | Silver |
Finish | Coated |
Material | Stainless steel Guidance for specification option: Grade A2-304 Austenitic stainless steel. |
Length | 25 mm |
Width | 4.8 mm 6.3 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H31/219 Fasteners H31/120 Metal H31/10 Metal |
Product range |
Specification data - Self-drilling screws
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Hexagonal, 8 mm. |
Size | |
Diameter | 6.3 mm. |
Length | 25 mm. |
Washers | A15 aluminium/ EPDM.Guidance for specification option: 15-mm diameter. |
Execution | Manufacturer guidanceSee manufacturer's literature for full installation and handling details. |
Drilling capacity | Two steel sheets, up to 1 mm-thick each. |
Sustainability data
Material | Stainless steel Guidance for specification option: Grade A2-304 Austenitic stainless steel. |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1178
