Dribond TG100FS System Ei Fire Rated Integrity-Insulation - Fire Rated Glazed Partition System

Name: Dribond TG100FS System Ei Fire Rated Integrity-Insulation - Fire Rated Glazed Partition System
Brand: Dribond Limited
SKU: ptbxGytNpSnVyE3x9xMti6

Verified by manufacturer 28 days ago

EI60 (60/60 integrity/insulation)

Dribond Limited

Ei30 or Ei60 glazed internal partitioning system with an ultra-slim aluminium profile.

Jump to:

+44 (0) 1142 430808 Website

Application

Internal partition panels.

Description

Ei30 or Ei60 glazed partition with an ultra-slim profile.

Through design innovation methods and years of vigorous testing and planning Dribond® has delivered a robust, fire-resisting internal partitioning system to the market which is self-sealing and upgradable from Ei30 to Ei60 by changing glass and gaskets.

Features and benefits:

Up to 64 dB Rw sound reduction.
32 mm ultra-slim depth.
100 mm narrow width.
Mullion/Transom option
Internal mullion/tramsom with external plant-on bar option
Up to 3000 mm high.
Aluminium can be powder-coated, anodised and simulated stainless steel.
A range of ironmongery is available to meet with the aesthetic requirement of each project.
Excellent acoustic attenuation standard Ei30 52db and Ei60 55db.
The system incorporates fully-glazed single door and double door sets utilizing a slimline aluminium frame which can be installed at full height or with glass overpanels, and with or without side screens. Glass directly glazes into the door frame for flush fit appearance.

If E30 or E60 ratings are required, see the TG90FS system (specified separately).

The range also offers EW30 and EW60 options; consult manufacturer for details.

General information

Color	Clear Guidance for specification option: Glazing. Silver Guidance for specification option: Aluminium - polished, linished or anodized. Other Guidance for specification option: Aluminium, powder-coated.
Finish	Powder-coated
Material	Aluminium Glass
Shape	Rectangle
Length	Bespoke
Width	100 mm Guidance for specification option: Screen profile depth (base/ head).
Height	Bespoke Guidance for specification option: Maximum 3000 mm.
Warranty description	Lifetime Guidance for specification option: Applies to most components (aluminium; glass; retaining brackets; intumescents). Conditions apply; consult manufacturer for details. Surface finish: minimum 25 years warranty. Rubber gaskets: 50 years.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary
CAWS	K30/10 Relocatable partition system K30/130 Relocatable partition system

Specification data - Partition panels

Third-party certification	Warringtonfire certification.
Unit size	-
Thickness	100 mm. Guidance for specification option: Profile depth (screen).
Partition height (nominal)	Guidance for specification option: Insert requirements, maximum 3000 mm. Maximum applies to panels and doors; insert details if overpanel is required.
Width (nominal)	Guidance for specification option: Insert requirements, including drawing or schedule reference as required.
Deflection allowance (maximum)	-
Head	No deflection (32 mm top track head). ±25 mm deflection (50 mm top track head).
Floor	32 x 100 mm profile.
Verticals	32 x 100 mm profile.
Panel partition type	Glazed. Solid panels.

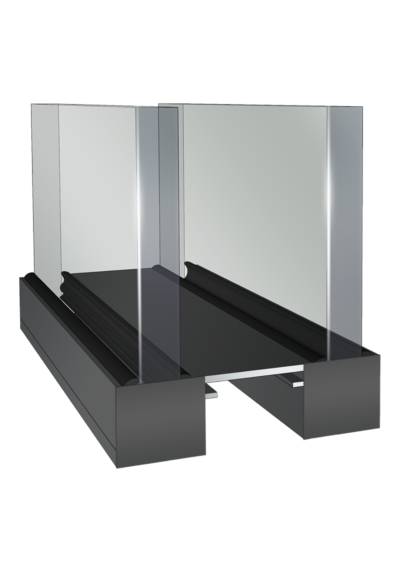

Framing, fixing points and joints	32 x 100 mm aluminium insulated channels with Dribond® DriJoint®/ fire rated multi-function posts. Track head as Deflection allowance above. Guidance for specification option: Channel height x depth.
Solid panels	-
Type	Not required. Alitek companel.
Finish and colour	Guidance for specification option: Omit if not applicable. Otherwise insert 'As frame', or consult manufacturer for options and insert colour requirements.
Joint treatment	-
Type	Dribond® DriJoint®.
Finish and colour	Guidance for specification option: 'As frame', or consult manufacturer for options and insert colour requirements.
Glazed panels	-
Type	Fire side: 23 mm PYRANOVA®; non-fire-side: ____. Guidance for specification option: Double glazed, TWINglaze® channels; insert requirements: Fire side: 23 mm Schott PYRANOVA® multi-layer laminated fire glass. Non-fire side: 11.5–26 mm glass; consult manufacturer's literature for options and insert requirements. Manufacturer guidance Upgradeable glass options available; consult manufacturer for details. Note: this may affect performance details,
Integral blinds	Required. Guidance for specification option: Consult manufacturer for details and insert requirements, 25–35 mm. Not required.
Additional features	90° post. 45° post. Mullions/ transoms.
Door arrangement	-
Type	Dribond® Alitek DR54FS/ FR130FS doorset, single door leaf. Dribond® Alitek DR54FS/ FR130FS doorset, double door leaf. Dribond® Alitek DR54FS/ FR130FS doorset, double door leaf and side screens. Dribond® Alitek DR54FS/ FR130FS doorset, double door leaf and overpanel. Dribond® Alitek DR54FS/ FR130FS doorset, double door leafs, side screens and overpanel. Solid core timber door, single leaf. Guidance for specification option: Up to 46 mm thickness; consult manufacturer for options and insert requirements. Include details for glazed side screens and/or overpanels if required. Solid core timber door, double leaf. Guidance for specification option: Up to 46 mm thickness; consult manufacturer for options and insert requirements. Include details for glazed side screens and/or overpanels if required. Manufacturer guidance Insert dimensions; maximum 1200 x 2945 mm per leaf.
Locking	Manufacturer's standard.
Door frames	Aluminium, 55 x 130 mm. Guidance for specification option: Extruded to BS EN 755-9:2001, specification 6063 T6.
Door panels	-
Type	Double glazed with 54 x 80 mm aluminium frame. Guidance for specification option: Glazing: Fire side to match glazed screen panels unless specified otherwise. Non-fire-side: 6.4 mm as standard. Single glazed with 54 x 80 mm aluminium frame. Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidance Aluminium colour/ finish to match other components unless specified otherwise. Aluminium extruded to BS EN 755-9:2001, specification 6063 T6.
Vision panels	Not available.
Additional apertures	Guidance for specification option: Insert requirements or omit.
Trims	Not applicable.
Hardware	Guidance for specification option: Consult manufacturer for options and insert requirements. Ironmongery includes 316 stainless steel lever latch, locking and pull handles with overhead door closers and hold open functionality.
Seals	Manufacturer's standard.
Cable management and outlets	Guidance for specification option: Insert requirements or omit.
Other features	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.

Finish (aluminium components)	Polyester powder-coated, colour. Guidance for specification option: Consult manufacturer for options and insert colour requirements. Polished and chemically brightened. Linished and chemically brightened. Etched and anodized. Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidance Applies to all components unless specified otherwise.
Fire resistance (integrity and insulation)	To BS EN 1364-1, EI60. Manufacturer guidance To BS EN 1364-1.
Sound insulation	Door leaf: 52 dB (Rw). Partition screen: 55 dB (Rw). Guidance for specification option: Standard. Consult manufacturer for details if upgradeable glass options are required.
Load	0.74 kN/m. 1.5 kN/m. 3.0 kN/m. Manufacturer guidance Nominal line load criteria of "accidental impact load" utilized. 0.36 kN/m applied as short term load at 1100 mm above FFL. Consult manufacturer's technical team for details.
Manifestation	Allowance of two rows of 50 mm dots. Allowance of two rows of 50 mm squares. Opal frost. Artwork/ custom. Guidance for specification option: Insert details. Manufacturer guidance To specifier's choice and in accordance with the requirements of approved document K.
Accessories/ Special requirements	Not applicable. Sustainability: system to conform to the requirements of BREEAM. Sustainability: system to conform to the requirements of SKA. Sustainability: system to conform to the requirements of LEED. Other. Guidance for specification option: Consult manufacturer for options e.g. BIM and insert details. Manufacturer guidance Insert details as required.
Door closers	Surface mount slide arm soft close. Surface mount slide arm non-soft close. Not required. Manufacturer guidance Up to maximum 200 kg.
Strength grade	Manufacturer's standard. Guidance for specification option: Provided independently certified evidence that all specifications variants of components comply with specified performance requirements. The frames comply with all relevant British Standard specifications, codes of practice and statutory requirements (including all revisions and amendments) as well as the guides and recommendations laid down by the relevant trade organization relating to their performance, constituent materials, method of assembly and use. All aluminium profiles are extruded to BS EN 755-9:2001, specification 6063 T6. For glass non-load bearing screens not protecting a change in adjacent floor level <380 mm. For glass load resistance criteria, see Load above. BS 5234 n/a to “all” glass partition screens. Nominal line load criteria of “accidental impact load” utilized. 0.36 kN/m applied as a short term load at 1100 mm above FFL. Glass deflection limited to L/65 or 25 mm. Maximum deflection and stress in accordance with the glass performance requirements of EN 572/ EN 12150/ EN 12543/ EN 14179 (where heat soaked). Building Regulations Part N (BS 6262) + InsStucEng publication “structural use of glass in buildings” BS 6180:2011 barriers in and about buildings for Atria or protected change in adjacent floor levels horizontal uniformly distributed line load 1100 mm above FFL (Lateral deflection limit L/65 or 25 mm, which ever is less relative to glass fixings) structural glass based on line load and attendant UDL + point load.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Glass
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	4 kg CO₂ eq/kg Self declared
Recyclability	System is fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	72 %
Expected Life	Lifetime

Literature

Dribond DR54FS & FR130FS NBS Datasheet

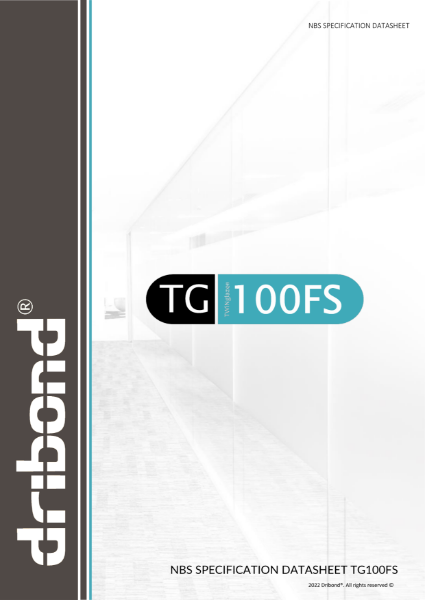

Dribond TG100FS NBS Datasheet

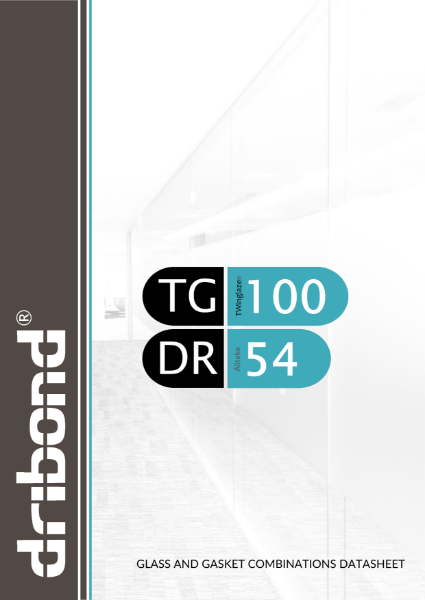

Dribond TG100 & DR54 Glasket and Glass Combination Datasheet

Dribond Series Wallchart

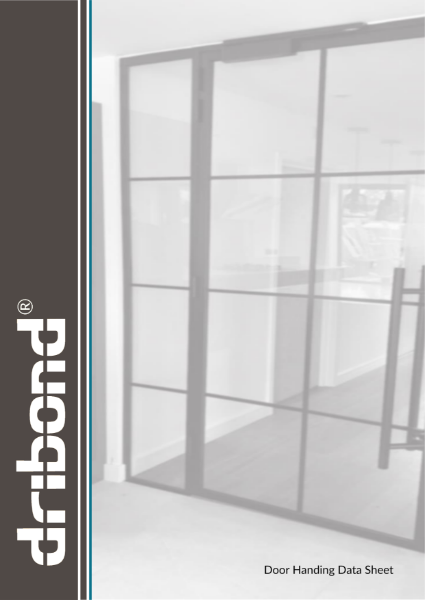

Dribond Door Handing Datasheet
