Dreen®Ceramica - Ceramic slab system

Verified by manufacturer 6 months ago

Dreen®Ceramica - 600 x 600 x 20 mm

Zoontjens Variant:

Complete lightweight ceramic-based paving slab and pedestal system for rooftop terraces.

Jump to:
07435 963770 Website

Application

Suitable for the creation or renovation of rooftop terraces, balconies, podiums and walkways.

Description

Dreen®Ceramica is the luxury ceramic-based slab system for rooftop terraces, podiums and balconies. Ceramic slabs are used to extend the interior space into the outdoor space. It is colourfast, wear-resistant, frost-proof and low-maintenance.


Dreen®Ceramica ceramic slabs give any rooftop terrace a modern and streamlined look and feel. Their excellent anti-slip qualities make them suitable for use on the roof. These dimensionally stable slabs are available in a range of sizes. Because of their light weight, the slabs are also very suitable for renovating rooftop terraces or walkways, with the patented and tested pedestal design preventing any issues with possible wind uplift.


The slabs are attached to the underlying Fixplate lock system with removable corner sections. These elements fix and lock the slabs in place, but keeps the underlying roofing layer accessible if and when needed. It also ensures straight joints. DNS® enables us to raise the ceramic slabs to a greater height. Ceramic slabs of 90 x 90 cm can only be raised by using DNS®Large.


Features and benefits:

  • Colourfast - monolithic full-core coloured.
  • Scratch resistant.
  • Wear and frost resistant.
  • High dimensional stability.
  • High anti-slip (R11).
  • Maintenance free.
  • Dirt repellent.
  • Manufactured from compressed layers of clay baked at a high temperature.
  • Concrete, stone and wood look colour options.
  • Creates a stable and level walking surface.
  • Raised to the required height with adjustable pedestal system to guarantee a level terrace.
  • Satisfies all European standards.

General information

Color

Material

Ceramic

Shape

Square

Rectangle

Length

600 mm

900 mm

Width

450 mm

Guidance for specification option:

900 x 450 mm.

Height

20 mm

Bespoke

Uniclass

Ss_30_14_90_34 Flag and slab pedestal-supported paving systemsPrimary

CAWS

J41/470 Paving tiles

J31/377 Support system for paving slabs or tiles

Q25/127 Pedestal supported paving slab/ flag system

Specification data - Flag and slab pedestal-supported paving systems

Pedestals

Fixplate lock system.

Guidance for specification option:

Fixplate base and fixplate lock.

Fixplate Lock with adjustable supports.

Class A1 Metal Fixplate lock with adjustable support.

Fixplate lock system with adjustable supports suitable for BroofT4 solutions.

Paving units

Ceramic-based slab.

Applied surface features

Slip-resistant.

Samples required

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Dimensions

600 x 600 x 20 mm.

Size (mm)

598 x 598 x 20 mm.

Manufacturer guidance

Working size.

Weight

16.5 kg (per slab); 46 kg/m².

Thickness tolerance

0.5 mm (approximate).

Tolerances

0.8 mm (approximate).

Manufacturer guidance

Length and width tolerance.

Slip resistance

R11.

Guidance for specification option:

Standard.

R13.

Guidance for specification option:

Optional.

Manufacturer guidance

Anti-slip value (roughness).

Load at fracture

11 kN.

Colour

Boost White

Guidance for specification option:

Concrete look.

Boost Grey

Guidance for specification option:

Concrete look.

Boost Smoke

Guidance for specification option:

Concrete look.

Boost Tarmac

Guidance for specification option:

Concrete look.

Trust Titanium

Guidance for specification option:

Stone look.

Show more

Sustainability data

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

The slabs can be picked-up, removed and reused.

Literature

Dreen Ceramica Colour chart 6060

Dreen Ceramica Colour chart 6060

Dreen Ceramica colour chart 9045

Dreen Ceramica colour chart 9045

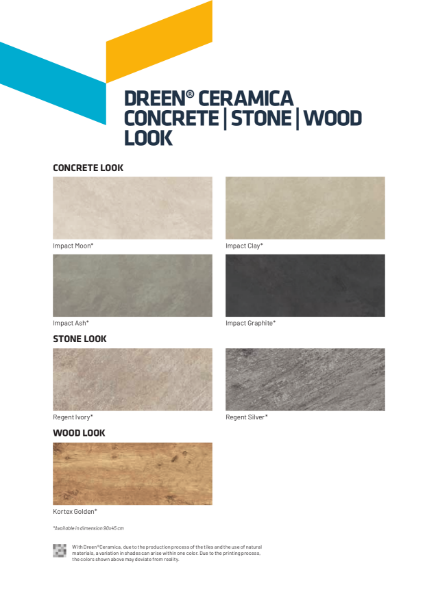

Dreen Ceramica Colour chart Concrete Look

Dreen Ceramica Colour chart Concrete Look

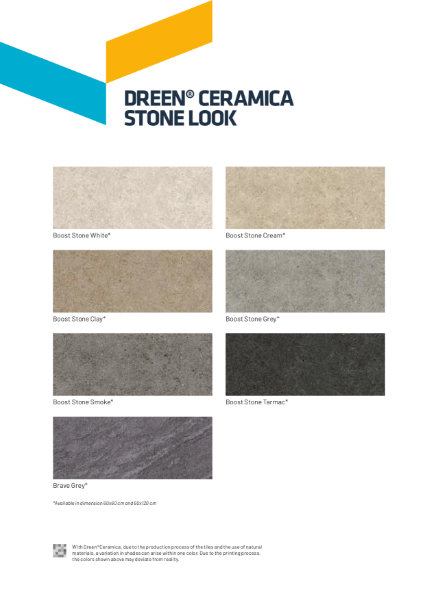

Dreen Ceramica Colour chart Stone Look

Dreen Ceramica Colour chart Stone Look

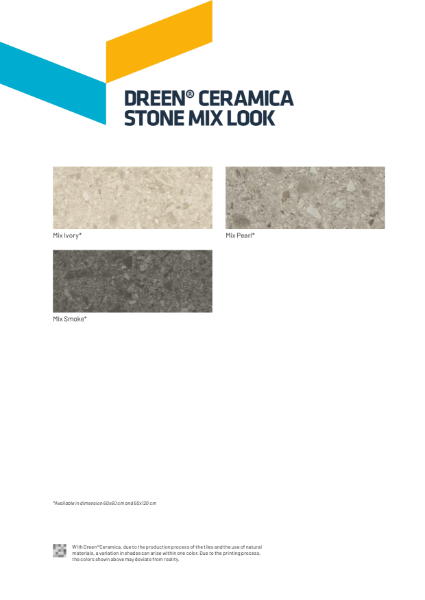

Dreen Ceramica Colour chart Stone Mix Look

Dreen Ceramica Colour chart Stone Mix Look
